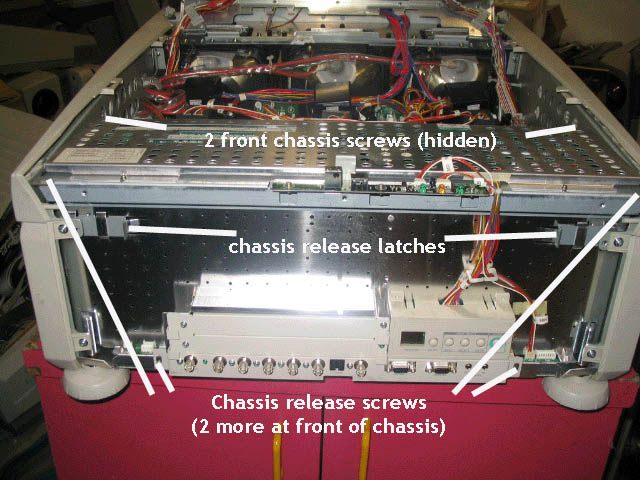

The above picture shows the screws that release the PC board frame so that it may be lifted up in the frame of the set to expose the CRT sockets and the PC boards alongside the CRT’s. Unlock the chassis release latches by pulling them towards the centre of the projector, then unscrew the 6 screws holding the chassis in place. Lift up the frame and slide it up until it locks into place.
