| Posted: Sat Mar 22, 2008 12:01 am Post subject: The Low-End Shootout |
|
|
So, everybody's posting screenshots of their tweaked out 8500s, blended G90s, ISF calibrated 909s...
But that's no challenge, is it? Of course those projectors look good.
So, my challenge is this - to get the absolute best screenshot with the worst projector you can find. The lowest ranked PJ capable of higher-than-480i is the ECP2000, for instance. But hey, you can go one up on that - how about one of the video only sets which don't even make it on the list?
The rules are - the screenshot is 1000 pixels wide, with at least 900 of that being the projected image. You can get the image to the PJ any way you want, and process it any way you want on the way, as long as it's a still from a watchable movie. No fair carefully tailoring a single image to look good!
What do you say? Anybody want to rumble?
_________________
|
|
| Back to top |
|
 |
kal
Forum Administrator
Joined: 06 Mar 2006
Posts: 18114
Location: Ottawa, Canada
TV/Projector: JVC DLA-NZ7
|
|
| Back to top |
|
|
CRT_Ben
Joined: 28 Aug 2006
Posts: 1684
Location: Northern Virginia
|
| Posted: Sat Mar 22, 2008 12:09 am Post subject: |
|
|
|
Ah, but how to deal with in-camera sharpening? All cameras do it, to a degree. Are those of us that shoot RAW with our DSLRs allowed some unsharp mask?
|
|
| Back to top |
|
|
Tinman
Joined: 09 Mar 2006
Posts: 1326
Location: Carson City Nevada
|
| Posted: Sat Mar 22, 2008 12:38 am Post subject: |
|
|

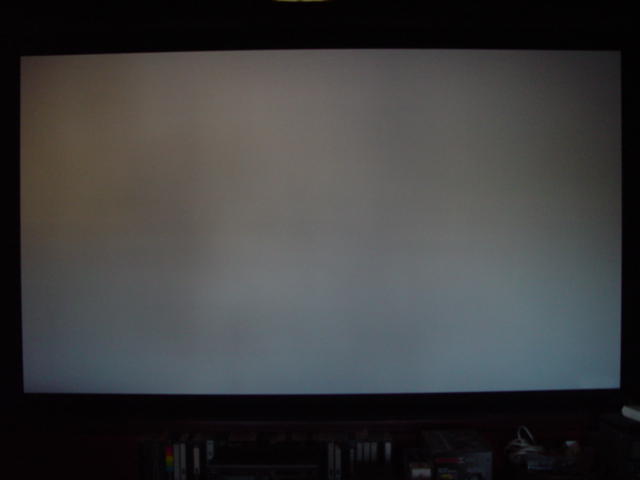

Here's my low-end screenshot. The screen. No light, no flash, no projector. Just screen.
Marc
| Description: |
|
| Filesize: |
123.39 KB |
| Viewed: |
10443 Time(s) |
|
_________________
This space for rent.
|
|
| Back to top |
|
|
AnalogRocks
Forum Moderator
Joined: 08 Mar 2006
Posts: 26706
Location: Toronto, Ontario, Canada
TV/Projector: Sony 1252Q, AMPRO 4000G
|
| Posted: Sat Mar 22, 2008 12:43 am Post subject: |
|
|
| Tinman wrote: | Here's my low-end screenshot. The screen. No light, no flash, no projector. Just screen.
Marc |
WOW! :shcok: not bad, but your screen has a vertical color shift.
_________________
Tech support for nothing
CRT.
HD done right!
|
|
| Back to top |
|
|
Tinman
Joined: 09 Mar 2006
Posts: 1326
Location: Carson City Nevada
|
| Posted: Sat Mar 22, 2008 12:46 am Post subject: |
|
|
Yeah, patio windows are open, light through the back and kitchen..... it's a difficult art... yet I toil onward...
Marc
_________________
This space for rent.
|
|
| Back to top |
|
|
ecrabb
Forum Moderator
Joined: 13 Mar 2006
Posts: 15909
Location: Utah
TV/Projector: JVC RS40, Epson 5010
|
| Posted: Sat Mar 22, 2008 12:51 am Post subject: |
|
|
Your corner focus needs some work and uniformity is terrible - must have some bad wear on the tubes.
SC
|
|
| Back to top |
|
|
Fujifrontier
Joined: 20 Oct 2007
Posts: 354
Location: San Antonio, Texas
|
| Posted: Sat Mar 22, 2008 1:30 am Post subject: |
|
|
|
a lowball projector... You mean, like, say, an image frmo a 1020? hahaha
|
|
| Back to top |
|
|
MikeEby
Joined: 24 Jun 2007
Posts: 5237
Location: Osceola, Indiana
|
| Posted: Sat Mar 22, 2008 1:43 am Post subject: |
|
|
Bad post....Didn't understand the rules.
Mike
_________________
Doing HD since the last century!
Last edited by MikeEby on Sat Mar 22, 2008 2:02 am; edited 1 time in total
|
|
| Back to top |
|
|
CRT_Ben
Joined: 28 Aug 2006
Posts: 1684
Location: Northern Virginia
|
| Posted: Sat Mar 22, 2008 1:46 am Post subject: |
|
|
Uhm, maybe you missed the point of the thread? I know you're feeling puffed up from defending your XG in the rankings thread, but it's not exactly in the same class as 480i video machines, eh?
|
|
| Back to top |
|
|
MikeEby
Joined: 24 Jun 2007
Posts: 5237
Location: Osceola, Indiana
|
| Posted: Sat Mar 22, 2008 1:50 am Post subject: |
|
|
Opps..sorry I didn't see the 480i part just saw the unmoded helped if I read....But this image is soft and unusable per the new rankings. Sorry Kal
I will delete my post....Sorry
EDIT: How do you you delete? Guess I will just edit.
Mike
_________________
Doing HD since the last century!
|
|
| Back to top |
|
|
perisoft
Joined: 29 Aug 2007
Posts: 2920
Location: Ithaca, NY
|
| Posted: Sat Mar 22, 2008 2:53 am Post subject: |
|
|
Any low-end PJ will do. Kind of any PJ nobody around here would use because far better ones are so cheap - like, 1271s are way too good. But 10xx, yeah, there you go!
Now I've just got to bust out my Barco Vision 600...
_________________
|
|
| Back to top |
|
|
CRT_Ben
Joined: 28 Aug 2006
Posts: 1684
Location: Northern Virginia
|
| Posted: Sat Mar 22, 2008 3:06 am Post subject: |
|
|
| perisoft wrote: | Any low-end PJ will do. Kind of any PJ nobody around here would use because far better ones are so cheap - like, 1271s are way too good. But 10xx, yeah, there you go!
Now I've just got to bust out my Barco Vision 600... |
I have a 1042q sitting in the garage, in a big flight case...maybe I'll have to fire that sucker up
|
|
| Back to top |
|
|
gregstv
Joined: 27 Aug 2007
Posts: 628
Location: Australia
|
| Posted: Sat Mar 22, 2008 4:26 am Post subject: |
|
|

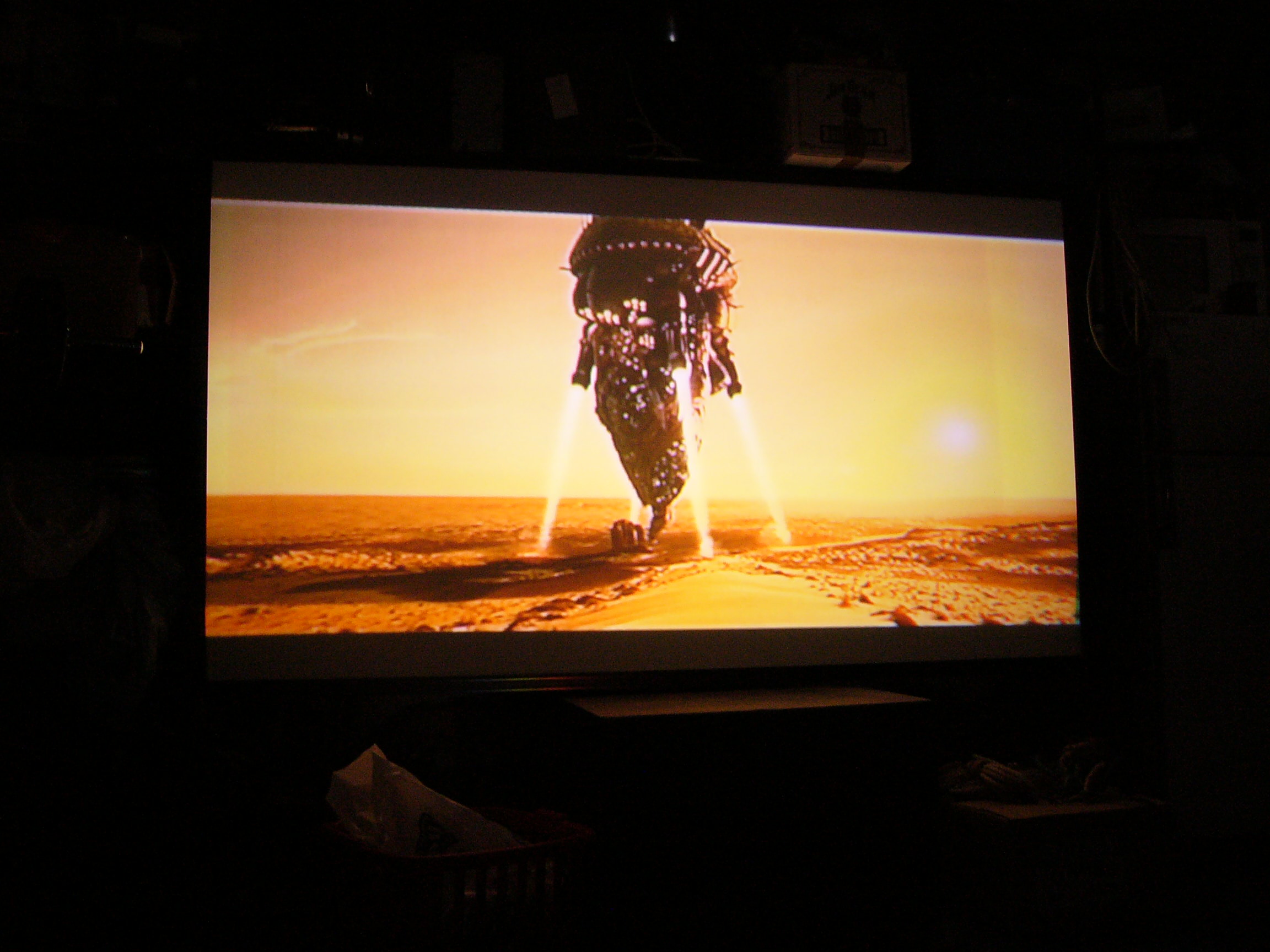

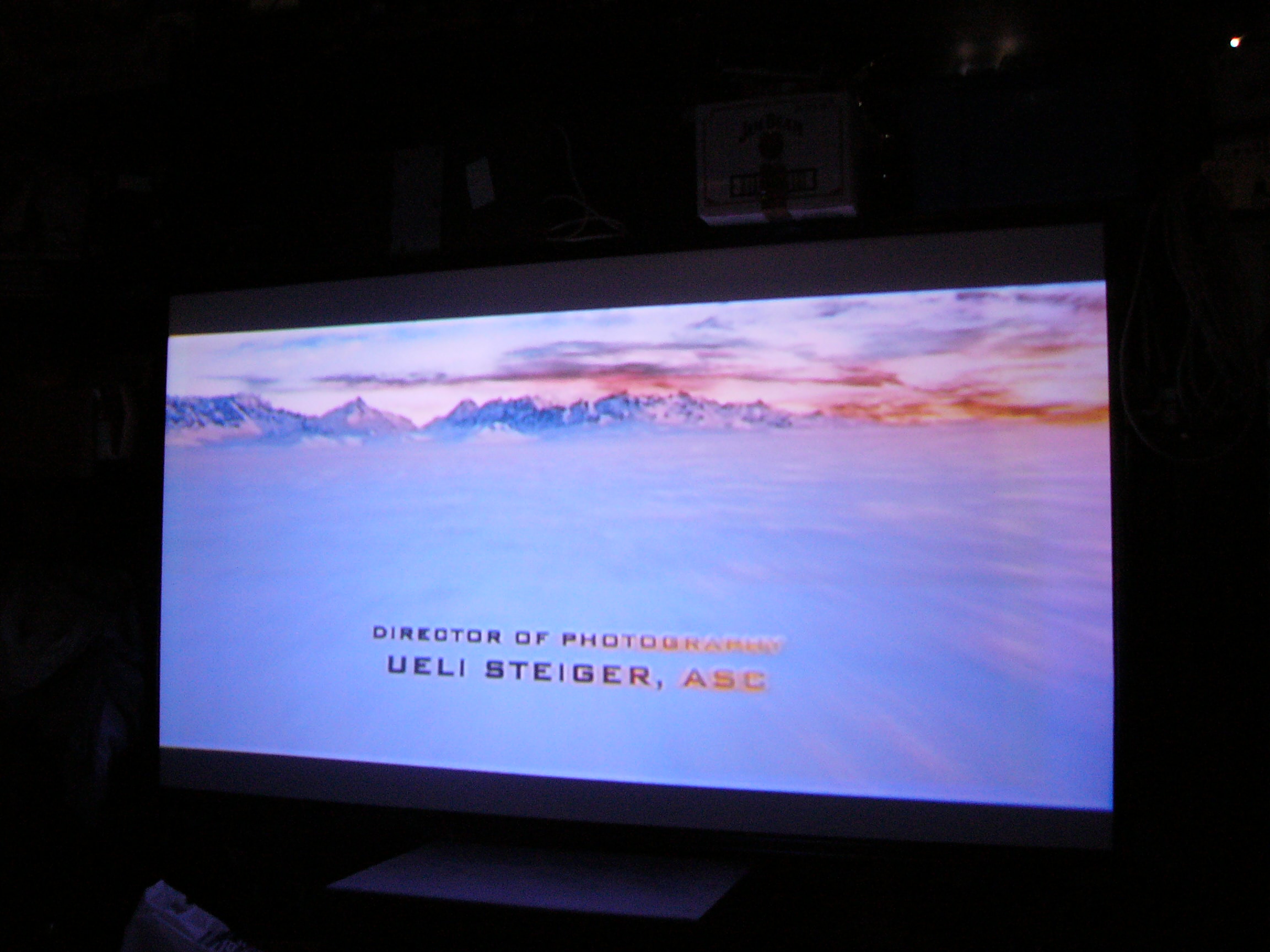

Here are some pics i took when i had a sony vph2030
| Description: |
|
Download |
| Filename: |
Projector Pictures 027.jpg |
| Filesize: |
424.03 KB |
| Downloaded: |
492 Time(s) |
| Description: |
|
Download |
| Filename: |
Projector Pictures 008.jpg |
| Filesize: |
425.02 KB |
| Downloaded: |
527 Time(s) |
|
|
| Back to top |
|
|
Zebu Fellenz
Joined: 21 Dec 2006
Posts: 2567
|
| Posted: Sat Mar 22, 2008 4:41 am Post subject: |
|
|
Greg,
That looks pretty bright, how wide is the screen?
|
|
| Back to top |
|
|
gregstv
Joined: 27 Aug 2007
Posts: 628
Location: Australia
|
| Posted: Sat Mar 22, 2008 5:18 am Post subject: |
|
|
|
92 inch 16 by 9 format.I fitted a set of 07mp tubes and a set of HD145 lens.
|
|
| Back to top |
|
|
gregstv
Joined: 27 Aug 2007
Posts: 628
Location: Australia
|
| Posted: Sat Mar 22, 2008 5:24 am Post subject: |
|
|
|
Thay were not 07mp thay were 07ms from a vph1001
|
|
| Back to top |
|
|
Heywood Jablome
Joined: 12 Mar 2006
Posts: 1548
|
| Posted: Sat Mar 22, 2008 1:40 pm Post subject: |
|
|
Hey Kal! Don't be bashful... dust off those BG800 pics of yours.
_________________
"Those countries which lag behind in industry, in the application of mechanics and technical chemistry, in the careful selection and utilization of natural products, where the respect for such activities does not permeate all classes of society, will unfailingly decline in prosperity. They will sink faster when neighbor states, with an energetic exchange between science and industry, go forward with renewed vitality."
-- Baron Alexander von Humboldt: 1769-1859
|
|
| Back to top |
|
|
kal
Forum Administrator
Joined: 06 Mar 2006
Posts: 18114
Location: Ottawa, Canada
TV/Projector: JVC DLA-NZ7
|
| Posted: Sat Mar 22, 2008 1:47 pm Post subject: |
|
|
| Heywood Jablome wrote: | | Hey Kal! Don't be bashful... dust off those BG800 pics of yours. |
Oh yeah! I forgot about those... I suppose a Barco 800 is now considered bottom of the heap!
Ok, here's the the post I made back in March 2006:
| Quote: | The BG800 come down in Fall 2005 (replaced with a 155 hour Zenith PRO 1200x), so I figured after 4 years it was about time I took some screenshots.
Just thought I'd post this as it seems that some of the older 8" ES CRT models like this don't get any love around here anymore. I still find it amazing what the coloured glycol does for NTSC DVD playback. You won't get colours like this from a stock Barco 70x/808/808s/1208/1209, Marquee 8xxx/9xxx, etc. as they all use clear glycol or [mostly] clear c-elements!
HT equipment used:
- A 26,000 hour (yes, that's 26,000) BG800 with still pristine (obviously not original) tubes with zero wear. Contrast at 65/100. I replaced most e-caps in this machine a couple of years back along with the RGB output FETs and a few other power semiconductors. (This was done to increase convergence stability as the set was getting a bit old).
- Source is a 4 year old HTPC running TheaterTek 1.2 with an ATI 7200 video card (old!). Nothing fancy. No post-processing with FFDshow or the like. Just TheaterTek driving the $30 ATI 7200 video card out to the projector.
- Screen is 1.1-1.2 gain made from 96x54" curtain blackout material painted with Behr Ultrawhite paint. More info here.
Photography equipment used: Canon Digital Rebel SLR camera (model 300D), 50mm prime lens, tripod. Camera set to aperature priority (most shots are f/4), used timer to avoid camera shake. I shot all in RAW format and developed using Phase One C1 Pro instead of letting the camera do the developing for me.
I've been incredibly happy with the picture quality that this thing has put out over the years (even more so after the upgrades I did to it). The level of image quality the main reason why I haven't been in any hurry to upgrade to another CRT (or digital for that matter). If I wasn't happy, I would have upgraded a long time ago... Alas, the new projector that Curt's giving me for managing his web site will be here tomorrow so this one will have to come down I suppose ...
Note: While I still find that the pics still lack some of the 'punch' and sharpness you see in person, they do indicate fairly closely what things look like person. Oddly enough the screenshots show considerable colour shifting from left to right and hotspotting in the center of the screen (see the Avia test pic below). None of this actually show up in person however. Strange. Anyone photo buffs out there know why? I'll have to play around a bit more with different lenses and settings and see if I can get these better.
Blow is a picture with the lights on to show what I'm doing, taken with a wide angle lens (18mm) (other photos were all taken from the same spot behind the second row but with a 50mm lens)
Enjoy!
Some hi-rez photos displayed at 720p from my HTPC (photos were stolen from photo.net)
NTSC DVD material (scaled to 720p)
Kal
|
_________________
Support our site by using our affiliate links. We thank you!
My basement/HT/bar/brewery build 2.0
|
|
| Back to top |
|
|
benareeno
Joined: 22 Mar 2006
Posts: 1614
Location: ottawa, canada
|
| Posted: Sat Mar 22, 2008 4:23 pm Post subject: |
|
|
Kal,
you are a magician! I saw that projector in action many times, and the screen shots are way better than the actual pic!
|
|
