| Posted: Sun Feb 10, 2008 1:11 am Post subject: Barco 701s mystery board |
|
|

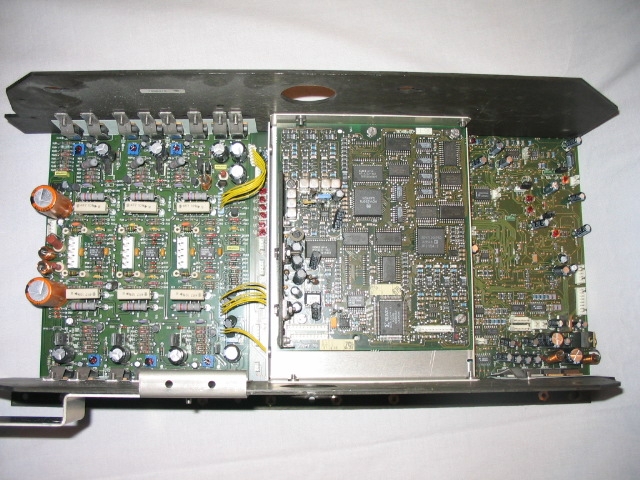

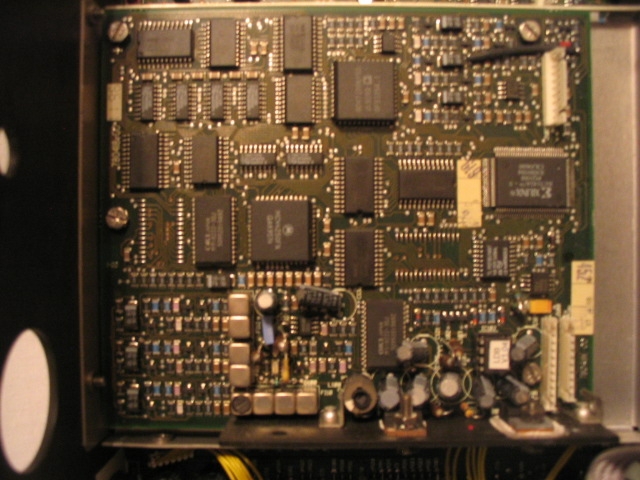

Anybody know what board this is? It's under the convergence output and convergence driver boards
| Description: |
|
| Filesize: |
192.37 KB |
| Viewed: |
4430 Time(s) |
|
| Description: |
|
| Filesize: |
217.37 KB |
| Viewed: |
4431 Time(s) |
|
_________________
Aubrey
|
|
| Back to top |
|
 |
Heywood Jablome
Joined: 12 Mar 2006
Posts: 1548
|
| Posted: Sun Feb 10, 2008 1:33 pm Post subject: |
|
|
ACON?
_________________
"Those countries which lag behind in industry, in the application of mechanics and technical chemistry, in the careful selection and utilization of natural products, where the respect for such activities does not permeate all classes of society, will unfailingly decline in prosperity. They will sink faster when neighbor states, with an energetic exchange between science and industry, go forward with renewed vitality."
-- Baron Alexander von Humboldt: 1769-1859
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Sun Feb 10, 2008 3:25 pm Post subject: |
|
|
|
That's the R762562 LIDO board (line doubler).On the IC's sticker near those caps stays: LDB V. 1.04
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Sun Feb 10, 2008 4:19 pm Post subject: |
|
|
|
Yup. Withiout the various wiring harnesses to the video board, it's useless though.
|
|
| Back to top |
|
|
paw
Joined: 08 Mar 2006
Posts: 1176
Location: Arvada, CO
|
| Posted: Mon Feb 11, 2008 3:59 am Post subject: |
|
|
| Heywood Jablome wrote: | | ACON? |
Nope, sorry.
_________________
Aubrey
|
|
| Back to top |
|
|
paw
Joined: 08 Mar 2006
Posts: 1176
Location: Arvada, CO
|
| Posted: Mon Feb 11, 2008 4:03 am Post subject: |
|
|
| Curt Palme wrote: | | Yup. Withiout the various wiring harnesses to the video board, it's useless though. |
HMM!! Now, I just have to remember which wires it connected it. Unless you're talking that that tangle of yellow wire.  It's still intact but good luck figuring out what it all connects.
_________________
Aubrey
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Mon Feb 11, 2008 8:15 am Post subject: |
|
|
The LIDO board is connected with the interface board (R762561x) with three plugs.You'll find the interface right under the neckboard for the blue tube.
From interface to LIDO:
J106 goes to J101
J107 goes to J100
J108 goes to J102
| Description: |
|
Download |
| Filename: |
LIDO.pdf |
| Filesize: |
92.2 KB |
| Downloaded: |
699 Time(s) |
|
|
