sidneydisplay · Joined: 15 Jan 2008 Posts: 6 Location: CN

Hi,

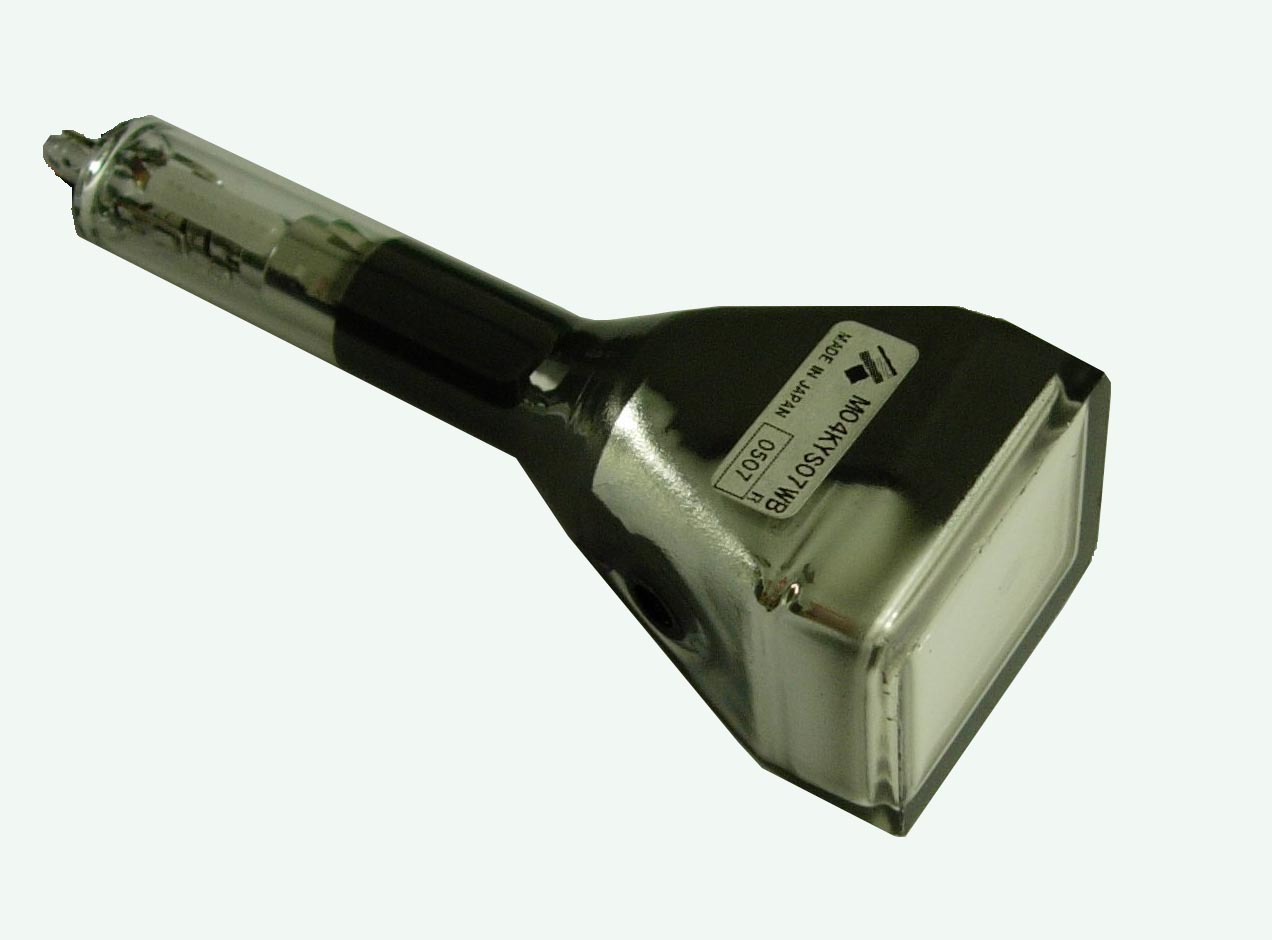

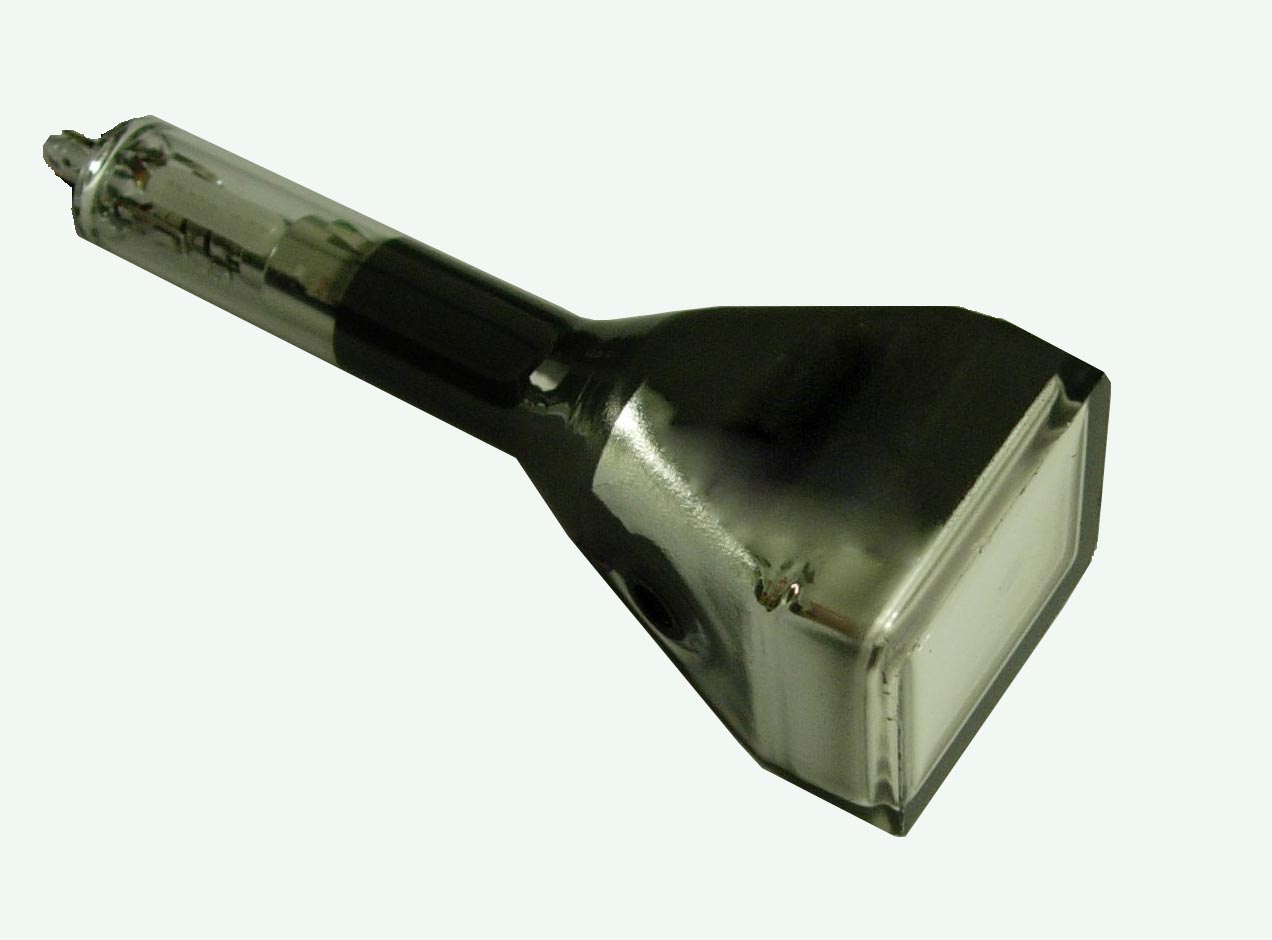

Now I need 1.5inch(38mm) Mono CRT tube,B/W,rectangle,like the attached picture,if anyone have any messages,please inform me.Thanks!
My mail is sidneydisplay#aol.com (# for @ )

[img][/img]

Tom.W · Joined: 09 Mar 2006 Posts: 6635

Try this place.

http://www.sphere.bc.ca/test/crts.html

sidneydisplay · Joined: 15 Jan 2008 Posts: 6 Location: CN

Thanks!
I have contacted these web,they donnot have the products I need!
================================================

Heywood Jablome · Joined: 12 Mar 2006 Posts: 1548

Try following the links at http://www.cathodecorner.com/
IIRC I linked thru them to a number of nifty mono tube projects (check the round CRT digital clock.)

**Curt Palme** · Posted: Tue Jan 15, 2008 3:00 pm Post subject:

Frankly, I'd look on eBay. Find an old video camera, the type without the recorder built in. Circa 1981-1985 or so. Almost all of those used small tubes like that.

jask · Joined: 17 Mar 2006 Posts: 10187 Location: kamloops BC

or the old pocket TVs they sold around the same time.

sidneydisplay · Joined: 15 Jan 2008 Posts: 6 Location: CN

Hello! Friend!

In fact, now most professional camera use this 1.5inch monochrome CRT tube for viewfinder,such as SONY,JVC, Ikegami,Panasonic,Hitachi, Philips,Thomson ,Canon and so on, all these professional camera viewfinder use 1.5" CRT picture tube, and they sell the viewfiner too,such as VF15-45,VF15-46 etc,but the viewfinder unit price is not cheap; I only need the CRT part for design products, so for me the whole viewfinder is not the correct selection, unless the viewfinder is cheap.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

New...
I know some model about this tube,such as 40CB4(JVC), 40HB4(PANASONIC), M04KAX07WB(JVC), etc;and I also know the web www.partstore.com, it have these parts,but the price is not cheap,I need not only one, I need more than 500pcs ,so the price is one reason to choose.

outwest · Joined: 17 Dec 2006 Posts: 212 Location: Honolulu

Have you spent some time watching e-Bay? Over a year ago I auctioned a complete, working Sony video camera with lens and B+W viewfinder. I got less than $100. USD for it. It even had the original fitted case.

ecrabb · Posted: Wed Jan 16, 2008 5:43 am Post subject:

Guys, I think he's looking for OEM parts to manufacture a product design of some kind around... so second-hand, surplus, or take-offs aren't going to work for him to get any sort of numbers with.

sidneydisplay, have you tried getting in contact with one of the pro broadcast manufacturer's design engineers? I bet it wouldn't take too many calls to get to the right person - either someone in design engineering, or a tech in a repair depot. One of them might be able to tell you makes their OEM part for them.

What type of application are planning on using one of these in? Just curious - sounds interesting.

SC

Dave Lister · Posted: Wed Jan 16, 2008 5:56 am Post subject:

What about VDC (Video Display Corporation) where we can get tubes for our projectors, I think they make tubes that small and would also be a source for when the design goes into production.

sidneydisplay · Joined: 15 Jan 2008 Posts: 6 Location: CN

Thank you all for your advises, I've tried,but not have a good harvest.
Now I dont find the CRT tube factory,if have this information,maybe all is OK!

Tom.W · Joined: 09 Mar 2006 Posts: 6635

Do you have the tube number and who makes the tube ?

Dave Lister · Posted: Thu Jan 17, 2008 6:10 am Post subject:

Try here http://www.videodisplay.com/

kschmit2 · Posted: Thu Jan 17, 2008 8:33 am Post subject:

sydneydisplay, do you need just one tube, or do you need more?

Kai

**AnalogRocks** · Posted: Thu Jan 17, 2008 5:36 pm Post subject:

He updated his post above. He need's more than 500 pcs

kschmit2 · Posted: Thu Jan 17, 2008 5:37 pm Post subject:

kschmit2 · Posted: Thu Jan 17, 2008 5:54 pm Post subject:

maybe Panasonic/Matsushita 40CB4 tubes can still be ordered from this place:

http://www.ued.net/cgi-bin/perlfect/search/search.pl?mode=any&q=40cb4

They list quite a few different models from other manufacturers as well. Search for "CRT" or "Picture Tube" or "1.5""

also look here:
http://www.partstore.com/PartSearch.aspx?PartNumber=40cb4

And you should make a phone call to those places. I'm sure they will give you a better price if you order 500 of the tubes.
One tube is approx. $117-$130.

If you want to try a 40CB4 tube you could try this one for $5: http://www.surplusshed.com/pages/item/r2025p.html

sidneydisplay · Joined: 15 Jan 2008 Posts: 6 Location: CN

Now I donnot have a good answer ever,especting for good news...

Heywood Jablome · Joined: 12 Mar 2006 Posts: 1548

Video Display Corporations' business "Lexel Imaging" is the only new manufacturer I can think of:
http://www.videodisplay.com/html/lexel.html

sidneydisplay · Joined: 15 Jan 2008 Posts: 6 Location: CN

Thank you! I have mailed ,now especting the response...
