| Posted: Sat Nov 02, 2024 2:11 pm Post subject: BG1209s no picture after startup |
|
|
Hi,
I tried to start the Barco again after a few months of inactivity, but now there is no picture at all and no possible displayed menu. All leds are green on the G2 board, no red light near the EHT/Quad (the 2A fuse is ok), and the following red leds are on: standby power, main power, processors cycle (flickering) and match block.
I tried another G2 board and another SMPS board, but the problem is still there.
Thanks for your help.
|
|
| Back to top |
|
 |
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sun Nov 10, 2024 12:05 pm Post subject: |
|
|

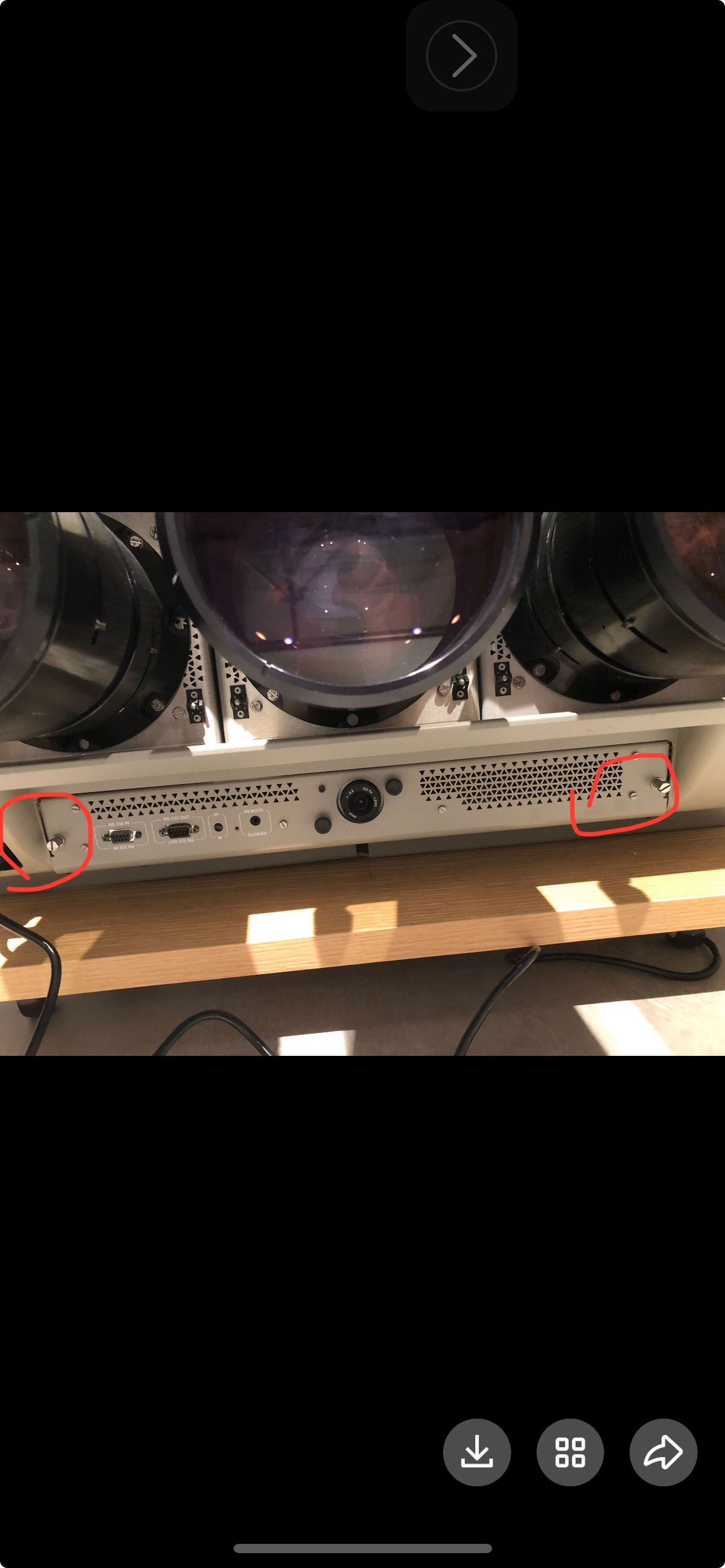

Can you take out the bottom board of the machine and take a photo? There should be three boards inside.
| Description: |
|
Download |
| Filename: |
BE25D50EB2C59AD7719988AA9D3B3583.png |
| Filesize: |
144.32 KB |
| Downloaded: |
52 Time(s) |
|
|
| Back to top |
|
|
Corleone88
Joined: 09 Dec 2006
Posts: 474
Location: France
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sun Nov 10, 2024 1:29 pm Post subject: |
|
|

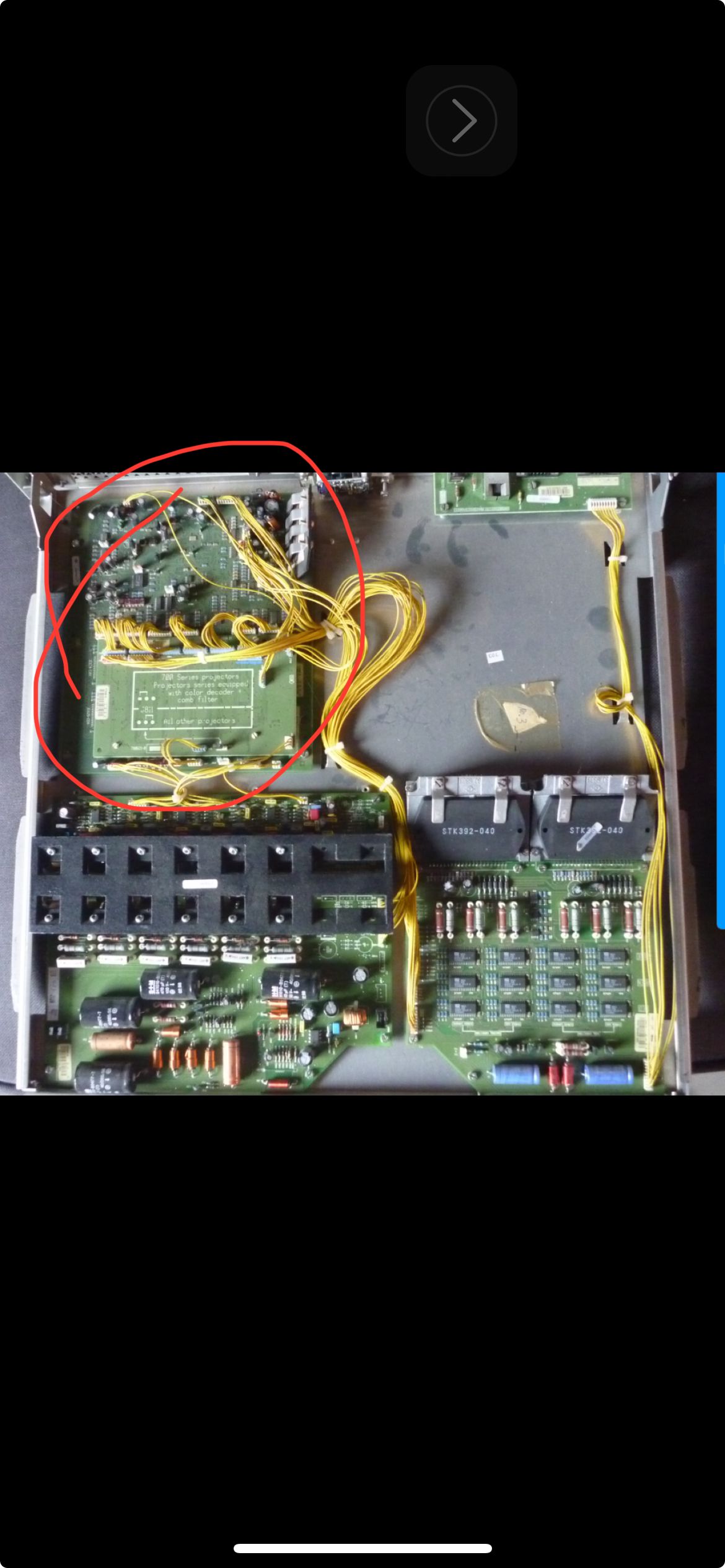

Okay, the board in the red circle needs to be checked. If it cannot be repaired, it needs to be replaced with another good board.
| Description: |
|
Download |
| Filename: |
B3B7674E5E10CB610137B7E5DEE4C386.png |
| Filesize: |
212.03 KB |
| Downloaded: |
38 Time(s) |
|
|
| Back to top |
|
|
Corleone88
Joined: 09 Dec 2006
Posts: 474
Location: France
|
| Posted: Sun Nov 10, 2024 1:38 pm Post subject: |
|
|
|
It looks like the Convergence Driver module R762518. I'll see if I have one spare.
|
|
| Back to top |
|
|
Corleone88
Joined: 09 Dec 2006
Posts: 474
Location: France
|
| Posted: Sun Nov 10, 2024 2:22 pm Post subject: |
|
|
|
I have a spare one (R762512) but without the sub-board xxx2819. What should I do? Remove the current one and put it on the spare one or leave the cables unplugged corresponding to this sub-board on the spare one?
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Sun Nov 10, 2024 2:44 pm Post subject: |
|
|
Replace it

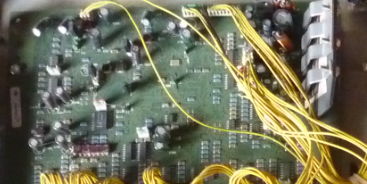

| Description: |
|
| Filesize: |
186.57 KB |
| Viewed: |
515 Time(s) |
|
|
|
| Back to top |
|
|
Corleone88
Joined: 09 Dec 2006
Posts: 474
Location: France
|
| Posted: Sun Nov 10, 2024 3:20 pm Post subject: |
|
|
|
After the replacement, still no picture...
|
|
| Back to top |
|
|
bluemoonhu
Joined: 16 Feb 2021
Posts: 259
|
| Posted: Mon Nov 11, 2024 11:04 am Post subject: |
|
|
|
Can you confirm that the HV quadrupler and HV splitter are good?
|
|
| Back to top |
|
|
Corleone88
Joined: 09 Dec 2006
Posts: 474
Location: France
|
| Posted: Mon Nov 11, 2024 5:40 pm Post subject: |
|
|
| bluemoonhu wrote: | | Can you confirm that the HV quadrupler and HV splitter are good? |
With the leds description in my first post, does it show that quad/splitter are good?
|
|
| Back to top |
|
|
|
|
