Pierre-Marie
Joined: 12 Feb 2023
Posts: 21
|
| Posted: Wed May 17, 2023 8:47 pm Post subject: Focus Ciné 9 |
|
|
Hello ,
Sorry to bother you but here in France I no longer have any contacts for troubleshooting Barco Ciné9.
Impossible to focus on the three tubes and when it is hot (30 mins) the image changes size, grows and then shrinks.
I change all the EHT lines?
ETH module, Quad, Splitter?

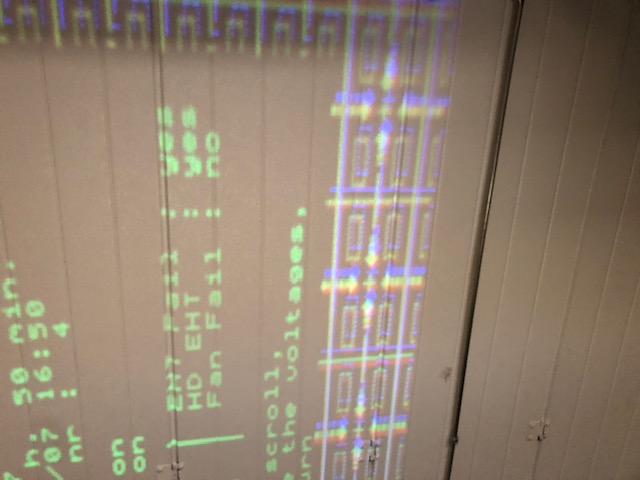

At the designer's diagnosis. EHT Fail : yes HD EHT Fail: yes If you can confirm me?
Cordially , Pierre-Marie
| Description: |
|
| Filesize: |
53.17 KB |
| Viewed: |
5510 Time(s) |
|
|
|
| Back to top |
|
 |
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Wed May 17, 2023 11:54 pm Post subject: |
|
|
|
The changing of the image size indicates poor HV regulation. That is usually the HV splitter, and if not, then the quadrupler. While the EHT board can also cause this, it's not very likely.
|
|
| Back to top |
|
|
Pierre-Marie
Joined: 12 Feb 2023
Posts: 21
|
| Posted: Thu May 18, 2023 6:24 am Post subject: |
|
|
Hello Curt,
Thank you for such a quick response !
I can get all the EHT spare parts but they come from a Cine 8 is this compatible?
THANKS .
Pierre-Marie.
PS: On -SMP2+G2sub
No faults.
On the EHT module, no red LEDs lit.
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Thu May 18, 2023 7:37 am Post subject: |
|
|
Hello Pierre-Marie,
Yes, the HV parts from Cine 8 are interchangeable with those from Cine 9.
All splitters are the same, regardless of their part nr. R762XXX.
All later version of quadruplers will work, but sometimes they use a bit of different mounting. Be aware that if that Cine 8 was equipped with Sony 07MFP tubes, the quadrupler has an extra red HV focus cable. It will work without problems, but you have to isolate it well and make sure the end booth does not touch any metal.
As for the EHT board, must be R7627165. Later models Cine 8 with PFC built in, use the same EHT board.
As Curt already mentioned, the most suspected part is the splitter. Just change that first and don't forget the white feedback cable.
|
|
| Back to top |
|
|
Pierre-Marie
Joined: 12 Feb 2023
Posts: 21
|
| Posted: Thu May 18, 2023 7:45 am Post subject: |
|
|
Hello Hulio ,
Merci à la Belgique, le berceau de Barco
Plutot 180dvb22 ou P16LXV pour les ciné 8 non Onyx?
Amitié ,
Pierre-Marie.
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Thu May 18, 2023 8:27 am Post subject: |
|
|
Sorry Pierre-Marie, my French is not so good, I live in the northern Belgium where they speak Dutch (Netherlands).
Both, 180DVB and P16 are Panasonic tubes. Only Sony tubes need that focus-voltage wire from the quadrupler.
|
|
| Back to top |
|
|
Pierre-Marie
Joined: 12 Feb 2023
Posts: 21
|
| Posted: Thu May 18, 2023 12:56 pm Post subject: |
|
|
| Pierre-Marie wrote: | Hello Hulio ,
Merci à la Belgique, le berceau de Barco
Plutot 180dvb22 ou P16LXV pour les ciné 8 non Onyx?
Amitié ,
Pierre-Marie. |
| Pierre-Marie wrote: | Hello Hulio ,
Thanks to Belgium, the birthplace of Barco
Rather 180dvb22 or P16LXV for non Onyx cine 8?
Friendship ,
Pierre-Marie. |
|
|
| Back to top |
|
|
robin36mac
Joined: 24 Jan 2009
Posts: 46
|
| Posted: Fri May 19, 2023 8:19 am Post subject: Re: Focus Ciné 9 |
|
|
| Pierre-Marie wrote: | Hello ,
Sorry to bother you but here in France I no longer have any contacts for troubleshooting Barco Ciné9. |
Ciné8 have P16 tubes originally, they are better (and compatible with 180DVB22), P16LXV or LXW being the best existing as far as I know
|
|
| Back to top |
|
|
Pierre-Marie
Joined: 12 Feb 2023
Posts: 21
|
| Posted: Mon Jun 05, 2023 5:45 pm Post subject: |
|
|
Good morning ,
Having no soltions who would have the parts mentioned above?
Regards
Pierre-Marie
|
|
| Back to top |
|
|
Pierre-Marie
Joined: 12 Feb 2023
Posts: 21
|
| Posted: Tue Jun 06, 2023 4:13 pm Post subject: |
|
|
Good morning ,
Finally impossible to recover the parts of the ciné 8
So I'm mainly looking for a splitter ..
R763368 if anyone has one for sale?
Regards.
Pierre-Marie.
|
|
| Back to top |
|
|
tschaeikaei
Joined: 08 Apr 2013
Posts: 490
Location: Germany/Saarland
|
| Posted: Tue Jul 11, 2023 11:22 pm Post subject: |
|
|
I have some Barco 808 parts and i live in Germany. Let me check if there is a splitter in that box.
_________________
Marquee 9500U edgeblend P43 | NEC 9PG
|
|
| Back to top |
|
|
Pierre-Marie
Joined: 12 Feb 2023
Posts: 21
|
| Posted: Wed Jul 12, 2023 10:41 am Post subject: |
|
|
Guten Morgen ,
Danke für Ihre Antwort .
halte mich auf dem Laufenden .
Guten Tag
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Wed Jul 12, 2023 2:43 pm Post subject: |
|
|
|
Pierre-Marie, keep in mind that part number R763368 is not the splitter, but the quadrupler.
|
|
| Back to top |
|
|
Pierre-Marie
Joined: 12 Feb 2023
Posts: 21
|
| Posted: Wed Jul 12, 2023 4:59 pm Post subject: |
|
|
|
indeed it is 7627165-4
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Wed Jul 12, 2023 5:48 pm Post subject: |
|
|
No, that is the EHT module.
Splitter is 762718
|
|
| Back to top |
|
|
Pierre-Marie
Joined: 12 Feb 2023
Posts: 21
|
| Posted: Wed Jul 12, 2023 6:24 pm Post subject: |
|
|
Effectively
R762718-3
|
|
| Back to top |
|
|
Pierre-Marie
Joined: 12 Feb 2023
Posts: 21
|
| Posted: Wed Jul 12, 2023 6:34 pm Post subject: |
|
|
I'm getting old
I have quite a few though
repaired with JBS and ledocttt on Cinetson, but it's been a long time.
I recovered this broken down Ciné9 and it pains me to see it broken down;
Thanks for your help !
Do you know Ferruccio the Italian?
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Thu Jul 13, 2023 6:21 am Post subject: |
|
|
I remember JBS and Ledoctt from the French forum back in that time. Very friendly guys with a lot of knowledge about Barco crt projectors.
No, i donn't know Ferruccio, the only Italian i know is Domenico ( Decibel on the forum ).
If Tschaeikaei can't help you, shoot me a mail at Stan.iulian@telenet.be and i will send you a splitter.
|
|
| Back to top |
|
|
Pierre-Marie
Joined: 12 Feb 2023
Posts: 21
|
| Posted: Thu Jul 13, 2023 9:30 am Post subject: |
|
|
Good morning ,
Thanks a lot for your help .
Pierre-Marie
|
|
| Back to top |
|
|
tschaeikaei
Joined: 08 Apr 2013
Posts: 490
Location: Germany/Saarland
|
| Posted: Thu Jul 13, 2023 11:47 am Post subject: |
|
|
Hello, i found some bits and pieces, but others should confirm if they fit.
Quadrupler 761541 (seems to be from an older Barco data model)
Quadrupler 761743 ( seems to fit Barco 800/801/801s/1208/1209 etc)
Maybe 761743 can be used on a cine 9 or modified for it? i don't know.
Also found a splitter 761744 with an additional sticker "1029911". Seems to fit nearly every barco model from 800 to 1209/2.
The reference sheets i have predate the 909/cine 9, so i can't say anything about these models.
Best regards, Julian
