Sony G90 corner convergence issue
Goto page 1, 2  Next

This forum is locked: you cannot post, reply to, or edit topics.   This topic is locked: you cannot edit posts or make replies.    CurtPalme.com Forum Index -> CRT Projectors
Author Message
Apfelmousse



Joined: 26 Apr 2014
Posts: 74
Location: Germany

Posted: Mon Feb 26, 2018 8:07 pm    Post subject: Sony G90 corner convergence issue

Hi,

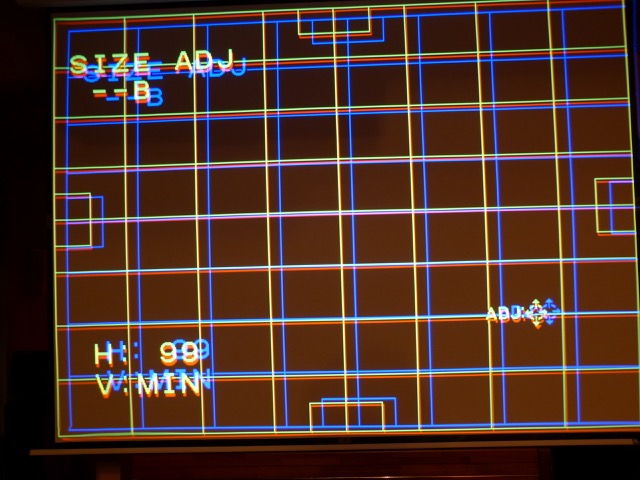

I made some experiments prior to hooking it up to the ceiling. In particular I was testing size and centering controls to find out the minimum distance between lenses and screen. With the standard lenses this seems to be around 2,20 meters, focus on the lenses near to the full CW position.

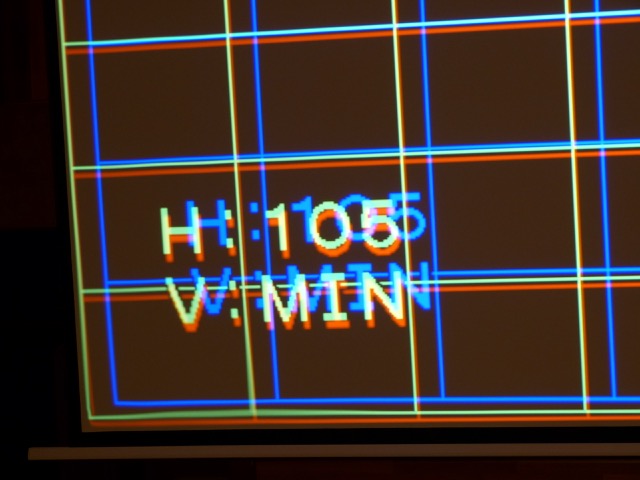

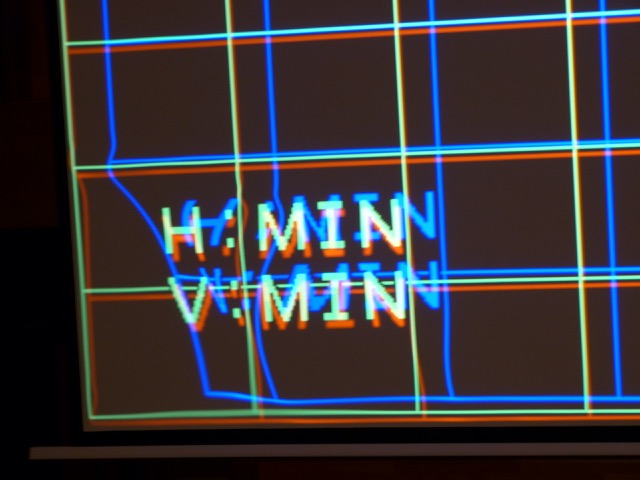

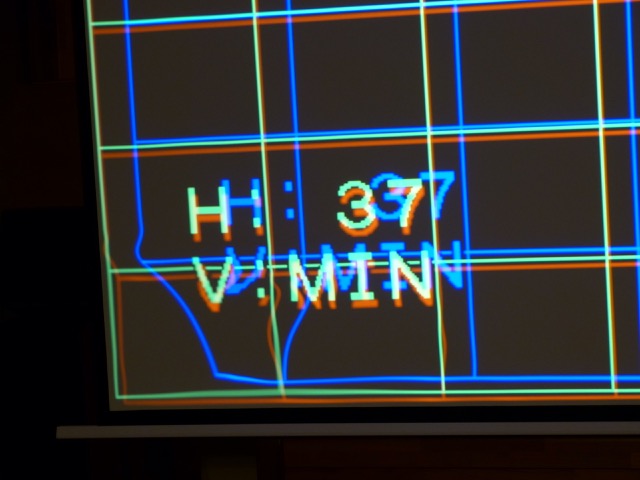

At some point I noticed a strange distortion in the lower left corner. It seems to originate from the blue horizontal circuits, as it depends on blue horizontal size setting. It appears when this setting it is below 100. I added some pics to illustrate. It influences red and to a much lesser extent, green. When blue size setting is above 100 the corner looks perfectly normal.

Anyone else noticed this?

regards
Martin
