| Posted: Sun Nov 26, 2017 11:20 pm Post subject: Barco 1209 adjusting video input signal level to .7p-p |
|
|
I have a Moome card that I am trying to squeeze a better range picture out of. Moome says to switch video signal range from 1.0V p-p to .7 p-p. I don't know where to look. I looked through the OSD and did not see and option so labeled. I don't have a 1209 service manual but the 1208 is similar and did not see an option there.
The only clear options for adjusting the picture I know of are "Contrast" and "Brightness" on the Barco 1209
Lastly, Moome asked me if the Port 3 input was set for RGB or RGBHV. I previously used analog in with RGBHV so I assumed that was the only option. It is possible to change that?
_________________
Addicted to buying cool used expensive toys...(especially CRT projectors) Barco 1209, 1208 and Elektra Espresso Maxi2 most recent additions.....
|
|
| Back to top |
|
 |
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Sun Nov 26, 2017 11:29 pm Post subject: |
|
|
|
That switch would be o n the Moome card itself. Frankly I'd leave it at 1 volt.
|
|
| Back to top |
|
|
Barry
Joined: 01 Feb 2007
Posts: 186
Location: Los Gatos , Ca.
|
| Posted: Sun Nov 26, 2017 11:42 pm Post subject: |
|
|
| Curt Palme wrote: | | That switch would be o n the Moome card itself. Frankly I'd leave it at 1 volt. |
Wow, that is interesting. I looked through the SW switches on the remote and did not see anything. I didn't think there were switches on the board and Moome kept asking me to find the .7V in the projector. So I hope we are all talking the same thing.
I just bought a Lumagen Radiance XE on eBay to replace my Lumagen Vision HDP. I am hoping that will help get me the wider range that I am seeking.
_________________
Addicted to buying cool used expensive toys...(especially CRT projectors) Barco 1209, 1208 and Elektra Espresso Maxi2 most recent additions.....
|
|
| Back to top |
|
|
AnalogRocks
Forum Moderator
Joined: 08 Mar 2006
Posts: 26706
Location: Toronto, Ontario, Canada
TV/Projector: Sony 1252Q, AMPRO 4000G
|
| Posted: Mon Nov 27, 2017 1:50 am Post subject: |
|
|
Are there jumpers on the moome card internally perhaps?
_________________
Tech support for nothing
CRT.
HD done right!
|
|
| Back to top |
|
|
Barry
Joined: 01 Feb 2007
Posts: 186
Location: Los Gatos , Ca.
|
| Posted: Mon Nov 27, 2017 1:55 am Post subject: |
|
|
| Barry wrote: | | Curt Palme wrote: | | That switch would be o n the Moome card itself. Frankly I'd leave it at 1 volt. |
Wow, that is interesting. I looked through the SW switches on the remote and did not see anything. I didn't think there were switches on the board and Moome kept asking me to find the .7V in the projector. So I hope we are all talking the same thing.
I just bought a Lumagen Radiance XE on eBay to replace my Lumagen Vision HDP. I am hoping that will help get me the wider range that I am seeking. |
I am thinking that Curt was referring to the drive FROM the Moome card and Moome was referring to the input sensitivity in the projector. So 0 -1V p-p from the Moome card would be a wider range than .7V BUT if the input was expecting .7V p-p concevably that would drive the PJ harder...wider range? Possible.
_________________
Addicted to buying cool used expensive toys...(especially CRT projectors) Barco 1209, 1208 and Elektra Espresso Maxi2 most recent additions.....
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Mon Nov 27, 2017 2:27 pm Post subject: |
|
|
I could be wrong, but I don't know of a 1v/.7v switch in the Barcos. Maybe I've never looked?
|
|
| Back to top |
|
|
CIR Engineering
Joined: 25 Aug 2008
Posts: 4269
Location: Chicago USA & Berlin Germany
|
| Posted: Tue Nov 28, 2017 12:59 am Post subject: |
|
|
So do you want to adjust the Moome card or the Barco?!?
On the Moome card, connect an oscilloscope to the GREEN output of the Moome card. Feed a 100 IRE window into the HDMI. Adjust the contrast control on the Moome card such that the p-p voltage between zero IRE and 100 IRE is 0.7 volts.
On Sony IFB's for G90's I always remove the gamma circuit and this changes the p-p voltage range. I have reset the p-p to 0.7 volts more times than I can remember on Moome boards.
craigr
_________________
JETI 1501-HiRes 2nm Spectroradiometer
JETI 1211 Spectroradiometer
Photo Research PR-650 Spectroradiometer
Klein K10-A Colorimeter
Murideo Fresco SIX-G HDMI 2.x Multimedia Generator
Murideo Fresco SIX-A HDMI 2.x Analyzer
Light Illusion ColourSpace XPT Color Calibration Software
Light Illusion LightSpace XPT Pro Version 10.x Color Calibration Software
OMARDRIS JVC Software Patch to use K10-A and Jeti with JVC OEM AutoCal Software!
Sencore CR7000 CRT Tube Analyzer / Rejuvenater
Authorized Dealer for Lumagen & just about everything worth buying
www.CIR-Engineering.com - craigr@cir-engineering.com
Phone: 865-405-6892
|
|
| Back to top |
|
|
Barry
Joined: 01 Feb 2007
Posts: 186
Location: Los Gatos , Ca.
|
| Posted: Mon Dec 04, 2017 3:34 pm Post subject: |
|
|
| CIR Engineering wrote: | So do you want to adjust the Moome card or the Barco?!?
On the Moome card, connect an oscilloscope to the GREEN output of the Moome card. Feed a 100 IRE window into the HDMI. Adjust the contrast control on the Moome card such that the p-p voltage between zero IRE and 100 IRE is 0.7 volts.
On Sony IFB's for G90's I always remove the gamma circuit and this changes the p-p voltage range. I have reset the p-p to 0.7 volts more times than I can remember on Moome boards.
craigr |
Great advice but my Scope is broken, not sure I could get it to work well enough (old housemate brought it home so I could use for audio debug). The other problem is I don't have an extender card. I am getting a Radiance XE which I think has an IRE pattern I could use.
I have been working with Moome on the problem that the card does not seem to respond to the remote for gamma adjustments. He had me adjust one of the pots clockwise by 23 turns which may or may not be contrast but it brought the image out of the sludge. (see pic for before)
| Description: |

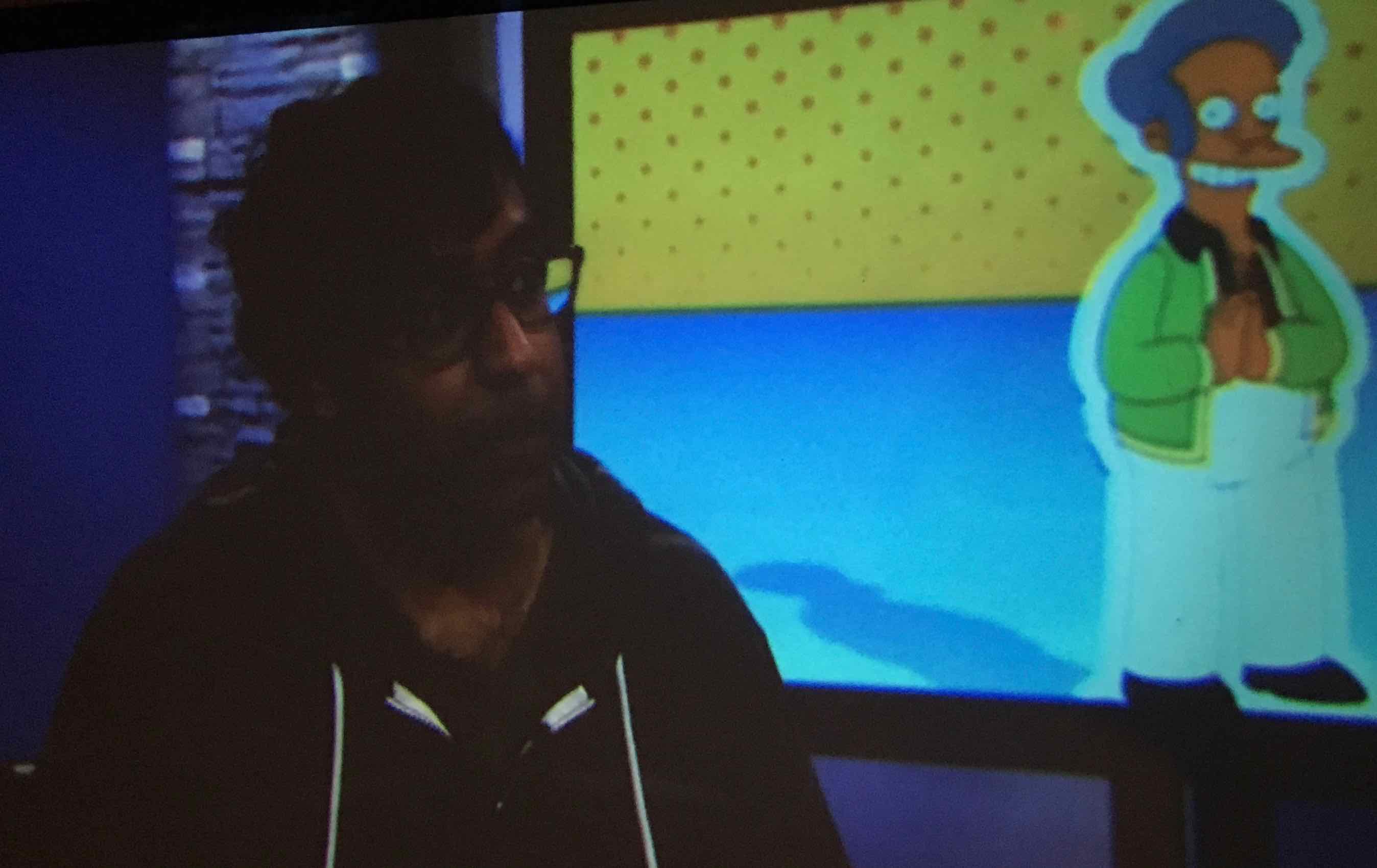

| This is what I got without cranking up the Lumagen controls and before adjusting the pot on the board by 23 turns as per Moome. |
|
