| Posted: Tue Oct 22, 2013 9:29 pm Post subject: Flash + loud bang from BD808s |
|
|
So I had just hooked up my popcorn hour (since my HTPC MB just died) via a HD fury to my BD808s and looked forward to enjoy my first movie on my new projector. Let the projector heat up while I was in the kitchen cooking. All of the sudden I see a blue flash from the living room and a loud BANG! Sounded expensive... I rushed over to unplug the projector but noticed that the picture was fine on the screen before I got hold of the cord. Perhaps something not in use, like the IRIS or an input not in use, but this didn't made any sense. I let it discharge for 30 minutes and then opened it to find this:

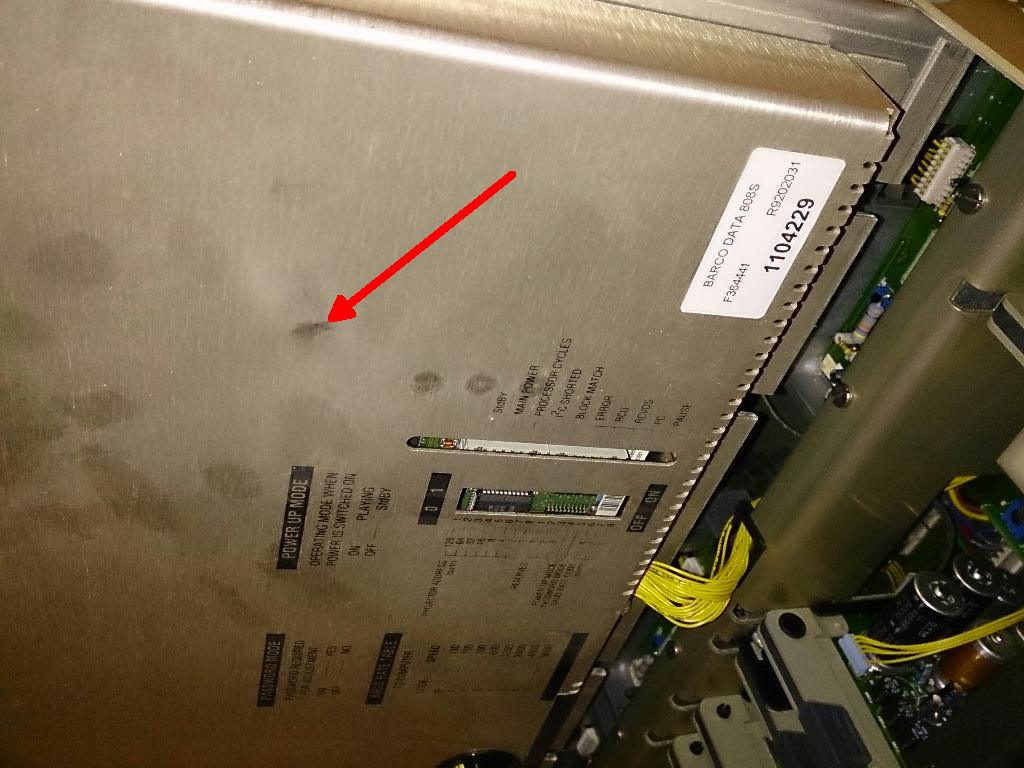

Burn mark.

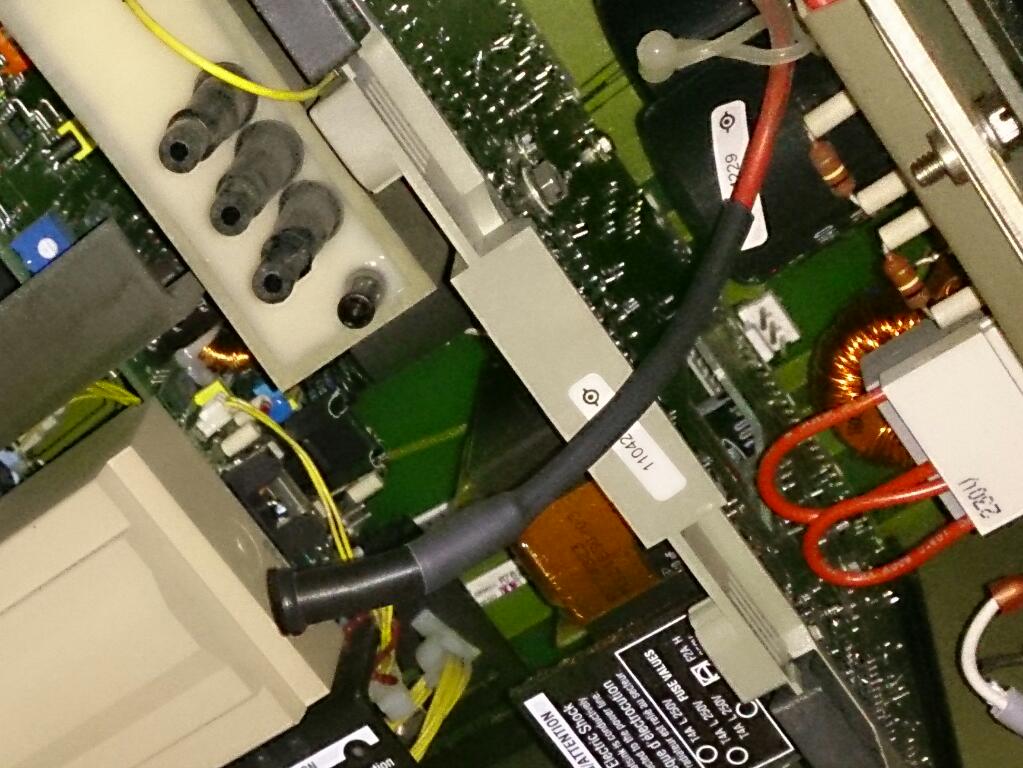

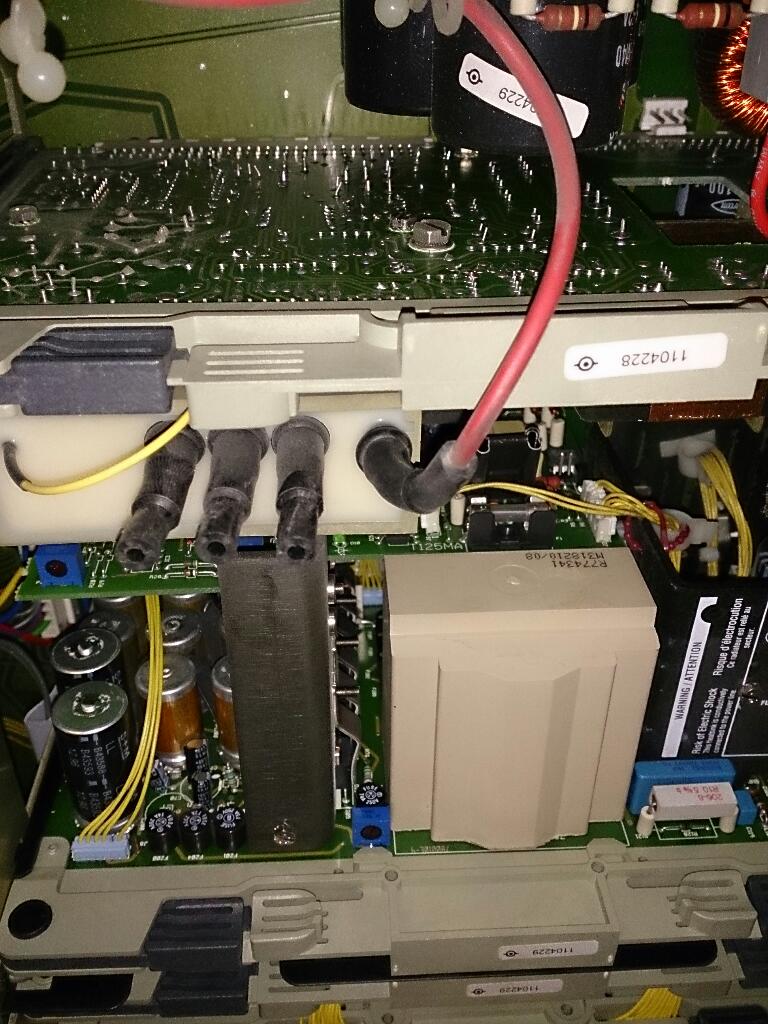

High voltage.

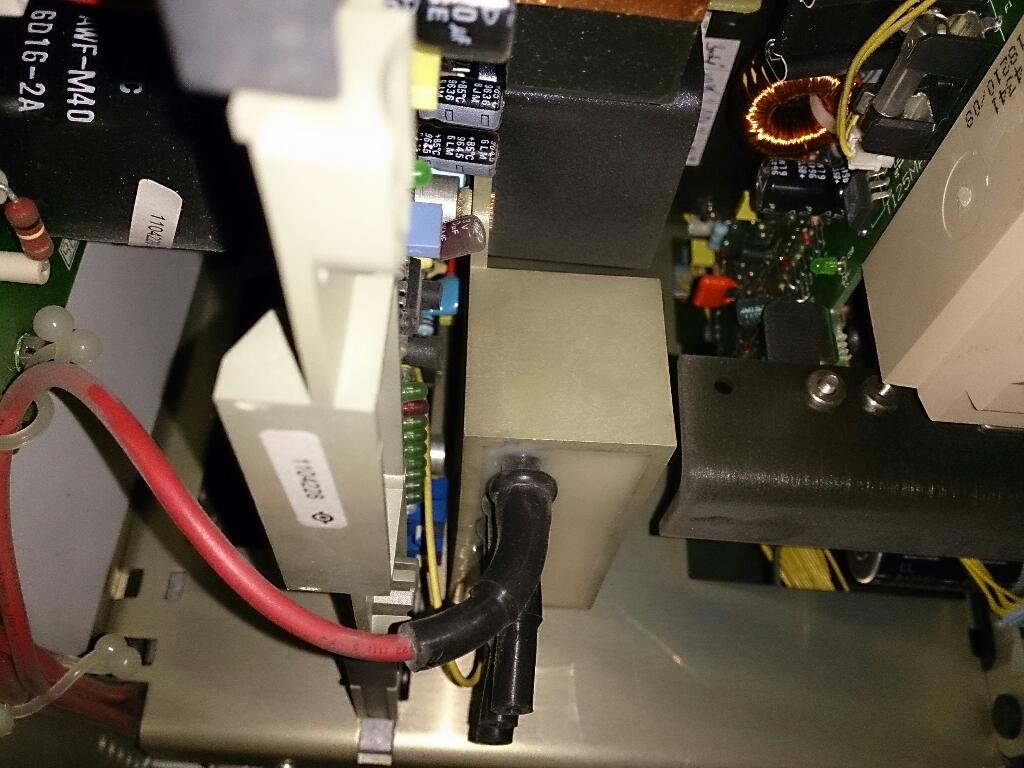

Gap.
The high voltage had jumped to the chassis which shows as a mark but my fingerprints really stands out in a picture taken with a flash. Point of impact was the cable itself which is strange from the state of it (looks solid). The only concern is that the cap/connector of the HV lead is not fully inserted, but this is several cm away from the burn mark.
My experience with high voltage is limited to doing calculations on HV transmission lines in school and verifying EN60335 (CE mark) compliance by shooting HV ESD, HV surge and HV burst on our products and remembering to have one hand in my pocket while doing so.
Any suggested course of action? Replace the HV lead? Isolate the chassis with Mylar/bo-PET?
| Description: |
|
| Filesize: |
101.12 KB |
| Viewed: |
8413 Time(s) |
|
| Description: |
|
| Filesize: |
137.86 KB |
| Viewed: |
8413 Time(s) |
|
| Description: |
|
| Filesize: |
94.67 KB |
| Viewed: |
8413 Time(s) |
|
|
|
| Back to top |
|
 |
winny
Joined: 09 Oct 2013
Posts: 403
Location: Sweden
TV/Projector: BD808s, BG1209/2
|
| Posted: Wed Oct 23, 2013 10:25 pm Post subject: |
|
|
Hmm, no replies.

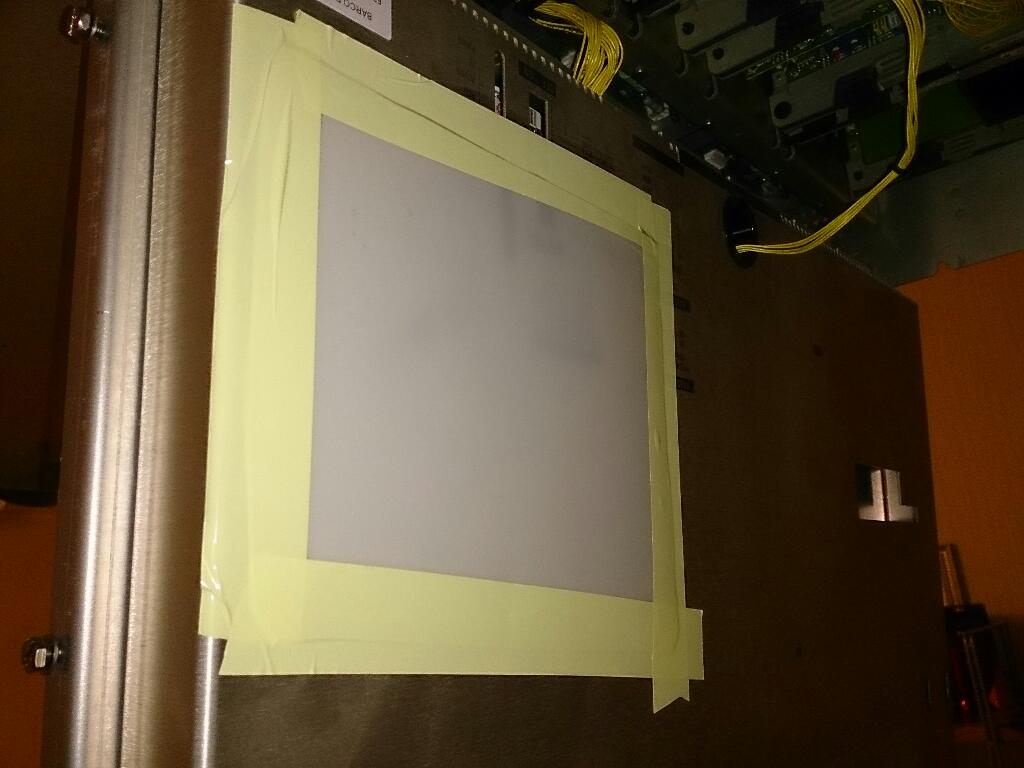

I did a temporary workaround consisting of a thick sheet of Mylar, good for tens of kV, and some heat shrink tube.
