| Posted: Thu Sep 20, 2012 3:13 pm Post subject: Connectors |
|
|
I have a BARCO 808 with a 9 pin D shell port 3 input, the manual says this is a RGB input, I have a set top box with a 15 pin D shell as an output, with the appropriate gender changer will this work to give me TV pictures from the set top box?
Many thanks
Trevor
| Description: |

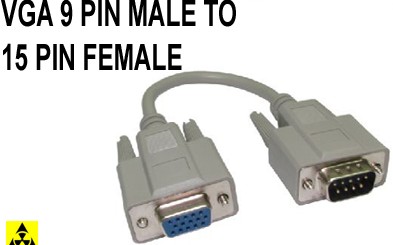

| Would this be what I would need, assuming this arrangement would work |
|
| Filesize: |
34.86 KB |
| Viewed: |
3855 Time(s) |
|
|
|
| Back to top |
|
 |
Tim in Phoenix
Joined: 21 Oct 2006
Posts: 4409
Location: Phoenix
|
| Posted: Thu Sep 20, 2012 3:19 pm Post subject: |
|
|
Hello
What is the signal format from the box? Which signal is on which pin for the box and the projector? You cannot randomly order a prefab cable and expect it to fit your situation.
.
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
|
| Back to top |
|
|
dentree
Joined: 01 May 2009
Posts: 247
Location: Melbourne Australia
TV/Projector: BARCO GRAPHICS 808 BARCO GRAPHICS 801
|
| Posted: Fri Sep 21, 2012 2:37 am Post subject: Connectors |
|
|
Hi Tim in phoenix,
Many thanks for your reply, The set top box has variable output resolutions in both progressive and interlaced flavours all the way up to 1080p, I assume the output 15 pin is analogue as it will plug straight into a telly ( not very knowlegble about these things ) this is the info from Curts pages don't know whether this info relates to a pin layout on a stock standard 15 to 9 pin device.
Perhaps I am not understanding any of this correctly, but the pin numbers on the 15 pin side seem to relate to the 9 pin BARCO input.
Many thanks for your time
Trevor
| Description: |

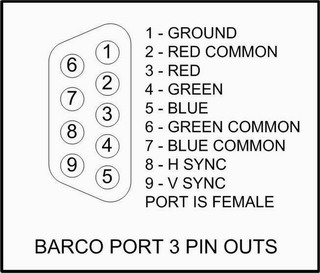

HD15 (VGA) Signal Barco Port 3 (D9)
1 Red 3
2 Green 4
3 Blue 5
4 (No Connection) -
5 (No Connection) -
6 Red Ground 2
7 Green Ground 6
8 Blue Ground 7
9 (No Connection) -
10 (No Connection) 1
11 (No Connection) -
12 (No Connection |
|
| Filesize: |
25.52 KB |
| Viewed: |
3778 Time(s) |
|
|
|
| Back to top |
|
|
Tom.W
Joined: 09 Mar 2006
Posts: 6635
|
| Posted: Fri Sep 21, 2012 2:46 am Post subject: |
|
|
|
Why not use a standard fury Barco breakout cable for port 3 ?
|
|
| Back to top |
|
|
dentree
Joined: 01 May 2009
Posts: 247
Location: Melbourne Australia
TV/Projector: BARCO GRAPHICS 808 BARCO GRAPHICS 801
|
| Posted: Fri Sep 21, 2012 5:30 am Post subject: Connectors |
|
|
|
I am afraid I do not know what "standard fury Barco breakout cable" is, sorry to be so vague about this
|
|
| Back to top |
|
|
Phoenixed
Joined: 13 Oct 2011
Posts: 514
Location: The mitten
|
| Posted: Fri Sep 21, 2012 6:07 am Post subject: |
|
|
Ignore this post.
_________________
Planar PD-8150/Runco LS-5
Last edited by Phoenixed on Fri Sep 21, 2012 3:46 pm; edited 1 time in total
|
|
| Back to top |
|
|
Tom.W
Joined: 09 Mar 2006
Posts: 6635
|
|
| Back to top |
|
|
Tom.W
Joined: 09 Mar 2006
Posts: 6635
|
| Posted: Fri Sep 21, 2012 7:35 am Post subject: |
|
|
| Phoenixed wrote: | Here
 |
That would be an RGBHV breakout cable for input 5 not not input 3.
|
|
| Back to top |
|
|
barclay66
Joined: 27 Jun 2011
Posts: 1304
Location: Germany
TV/Projector: Marquee 9500 Ultra
|
|
| Back to top |
|
|
Phoenixed
Joined: 13 Oct 2011
Posts: 514
Location: The mitten
|
| Posted: Fri Sep 21, 2012 3:46 pm Post subject: |
|
|
My bad.
