To build up an EHT test-circuit I look for the connector used on the quad, but cannot find such anywhere.
The connector has 1mm plug pins in a 4mm grid in-line, 8-pole with 4 used.
Does anyone know the manufacturer / type / distributors of this connector?
Thanx
|
|
| Back to top |
|
 |
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Mon Mar 19, 2012 3:39 pm Post subject: |
|
|
|
If it helps, I can cut one off an old defective quad. I have lots.
|
|
| Back to top |
|
|
heely
Joined: 10 Jan 2012
Posts: 7
Location: Berlin
|
| Posted: Mon Mar 19, 2012 3:58 pm Post subject: |
|
|
Fine, but I also need the male part located on the printed circuit board.
Can you help me with that, too?
My friend Stefan (revox) had correspondence with you regarding damaged quads in January.
He is going to contact you about that once more, so you can send everything together in one parcel.
Cheers
André
|
|
| Back to top |
|
|
Curt Palme
CRT Tech
Joined: 08 Mar 2006
Posts: 24396
Location: Langley, BC
TV/Projector: All of them!
|
| Posted: Mon Mar 19, 2012 4:56 pm Post subject: |
|
|
|
I will need to part out a Barco, as I've never saved that connector. I believe the company is Molex, you should be able to find some new ones on eBay, it's a pretty standard connector.
|
|
| Back to top |
|
|
heely
Joined: 10 Jan 2012
Posts: 7
Location: Berlin
|
| Posted: Mon Mar 19, 2012 5:36 pm Post subject: |
|
|
I have already searched the internet but can´t find any connectors with 4mm grid anywhere.
I have just looked on the Molex-site but havn´t found any matches there either.
So if you have any idea or hint, where I might be successful I would be pleased!
|
|
| Back to top |
|
|
barclay66
Joined: 27 Jun 2011
Posts: 1304
Location: Germany
TV/Projector: Marquee 9500 Ultra
|
| Posted: Mon Mar 19, 2012 8:07 pm Post subject: |
|
|
Hi,
I think I have such a connector but I'm currently away from home. I too have a spare quadrupler in order to check that it matches correctly. I can take a look as soon as I'm back home tomorrow...
Regards,
barclay66
|
|
| Back to top |
|
|
heely
Joined: 10 Jan 2012
Posts: 7
Location: Berlin
|
| Posted: Tue Mar 20, 2012 11:04 am Post subject: |
|
|
Hi barclay66!
I´m looking forward to to your next message tomorrow.
Can you send that connector to me?
What´s your location? I live in Berlin, Germany.
Thanx
André
|
|
| Back to top |
|
|
barclay66
Joined: 27 Jun 2011
Posts: 1304
Location: Germany
TV/Projector: Marquee 9500 Ultra
|
| Posted: Wed Mar 21, 2012 7:30 am Post subject: |
|
|
Hello André,
I came back very late yesterday and didn't find it right away (I'm perfectly sure I have at least one). I will look again today evening and make some photos. I'm located in southern Germany near Munich...
Regards,
barclay66
|
|
| Back to top |
|
|
barclay66
Joined: 27 Jun 2011
Posts: 1304
Location: Germany
TV/Projector: Marquee 9500 Ultra
|
| Posted: Wed Mar 21, 2012 7:51 pm Post subject: |
|
|
Ok, I've found it!

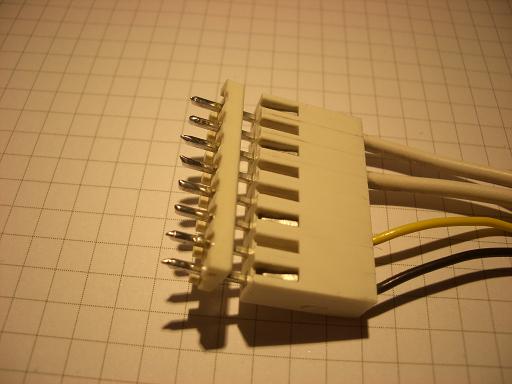

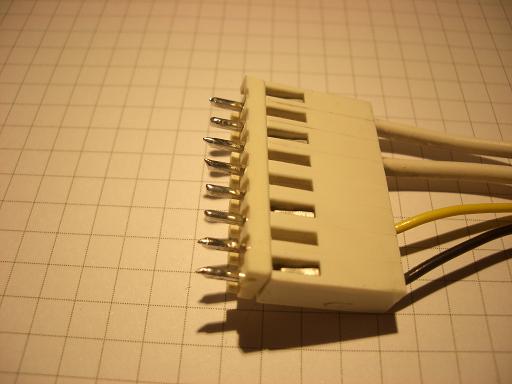

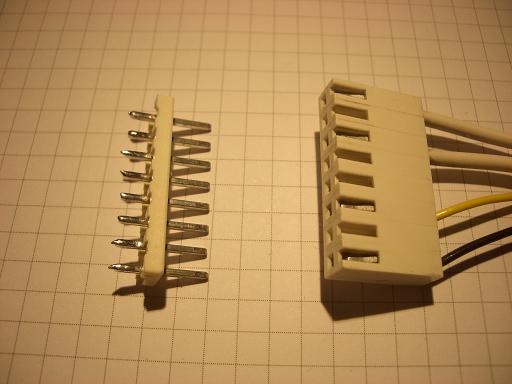

Although it's not the original one it's usable. I had to cut way the plastic at one side. Therefore, if You want to use it You will have to make sure that You don't connect the quadrupler's cable in reverse.
I will send it to You if You PM me with Your address details...
Regards,
barclay66
| Description: |
|
| Filesize: |
62.62 KB |
| Viewed: |
5016 Time(s) |
|
| Description: |
|
| Filesize: |
61.7 KB |
| Viewed: |
5016 Time(s) |
|
| Description: |
|
| Filesize: |
58.43 KB |
| Viewed: |
5016 Time(s) |
|
|
|
| Back to top |
|
|
heely
Joined: 10 Jan 2012
Posts: 7
Location: Berlin
|
| Posted: Tue Mar 27, 2012 10:22 pm Post subject: |
|
|
Sorry I answer your last post nearly one week later, but I havn´t been informed, that there is a new message from you and have just checked it for the first time after that.
Meanwhile I have found out, that the connector ist produced by AMP/tyco and the type is called MTA-156 (3.96mm grid), available for instance at Farnell. I have ordered a couple of samples that have been delivered yesterday.
I´m sorry you took the time to search for the part and take it out of the board!
But by the way I´m interested to know, what other Barco-parts (expecially EHT-quads and -splitters) you can offer, because my problem is not solved at all - this is only one pre-condition to search for the faults.
Do you have any experiences in troubleshooting on Barco EHT-systems?
If you send me a personal message, we can communicate in German, that may be more useful for us.
Thanx / Danke!
|
|
