| Posted: Tue Feb 21, 2012 11:13 pm Post subject: BG808 tube connections |
|
|
Going back to crt school. Does anyone have a diagram showing where the tube electronics connect to the motherboard??? I'm trying after several years to put a BG808 back together. Thanks
_________________
I want to be like Curt when I grow up! Got no theater, all projectors broke.
|
|
| Back to top |
|
 |
Ile
Joined: 09 Mar 2006
Posts: 1491
Location: Jyväskylä, Finland
|
| Posted: Wed Feb 22, 2012 8:40 am Post subject: |
|
|

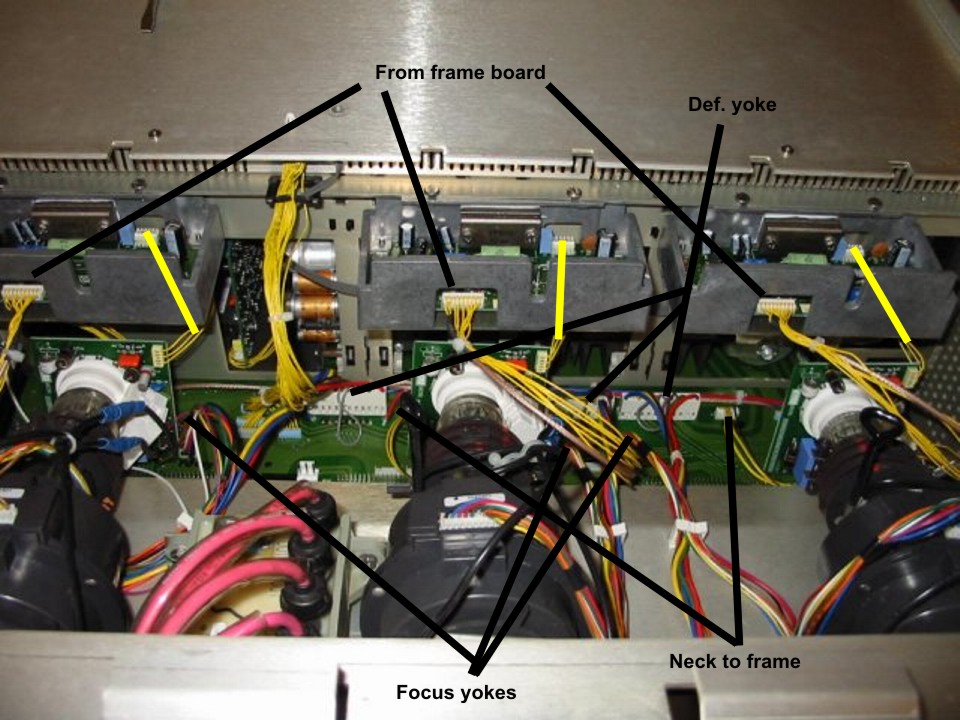

This should help, connectors RGB order in mobo is same as tube order.
Cables wont fit to wrong connectors.
| Description: |
|
| Filesize: |
169.84 KB |
| Viewed: |
1485 Time(s) |
|
|
|
| Back to top |
|
|
alyle5864
Joined: 13 Mar 2006
Posts: 112
Location: Monroe, Wa
|
| Posted: Wed Feb 22, 2012 11:01 pm Post subject: |
|
|
Thanks Ile, this helps.
_________________
I want to be like Curt when I grow up! Got no theater, all projectors broke.
|
|
| Back to top |
|
|
Motobias
Joined: 08 Jul 2008
Posts: 163
Location: Osnabrueck, Germany
|
| Posted: Wed Feb 22, 2012 11:54 pm Post subject: |
|
|
i think there's not really much you can do wrong
take some pictures of the process !
