Tom.W
Joined: 09 Mar 2006
Posts: 6635
|
| Posted: Tue Jun 21, 2011 7:23 am Post subject: Converting a BD1209s to a BG1209s |
|
|
I have a Barco Data 1209s that needs new tubes but is there anything else I might want to replace before putting it on the ceiling ?
Fortunately I have a couple of sets of new color filtered c elements left and a very nice set of P19LPB03 tubes (9's with no visible phosphor wear) with very good emissions.
The Barco Data 1209s specs:
http://www.curtpalme.com/docs/BarcoData1209s_Brochure.pdf
The Barco Graphics 1209s specs:
http://www.curtpalme.com/docs/BarcoGraphics1209s_Brochure.pdf
I do have a few spare BG1209s and BG1208s boards.....
Last edited by Tom.W on Wed Jun 22, 2011 4:11 am; edited 1 time in total
|
|
| Back to top |
|
 |
Ile
Joined: 09 Mar 2006
Posts: 1491
Location: Jyväskylä, Finland
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Tue Jun 21, 2011 8:33 am Post subject: |
|
|

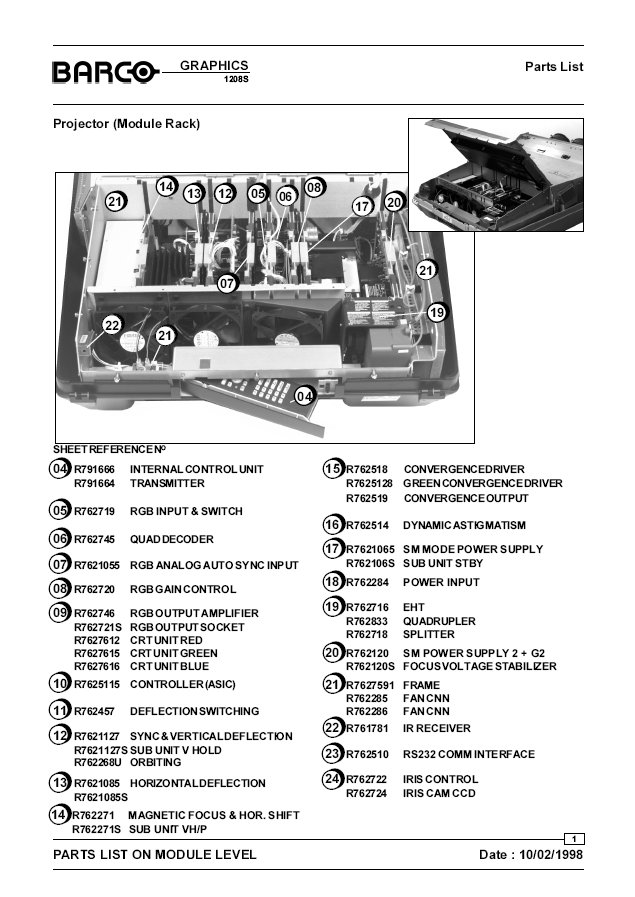

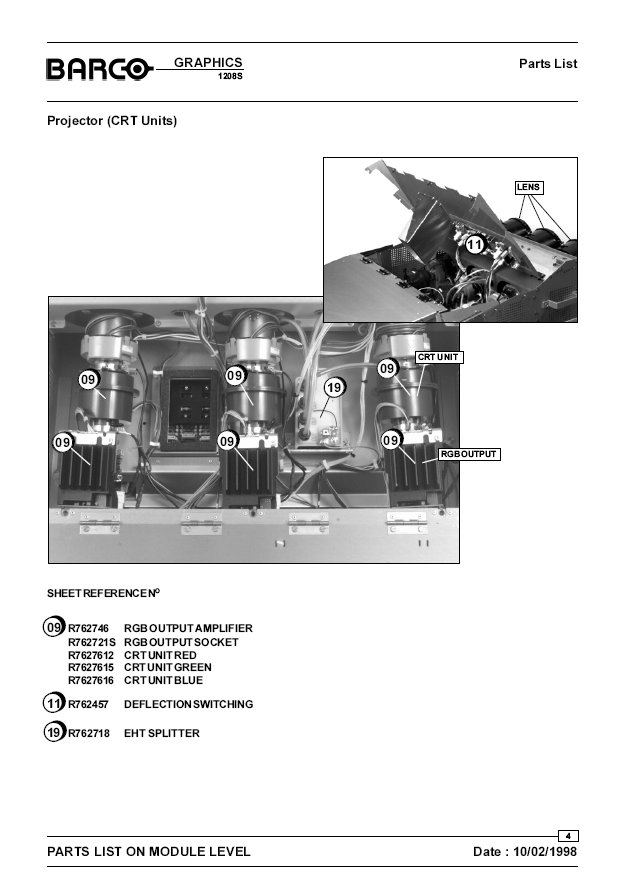

I compared the documents below (G1208s) and G1209s service manual.
The projectors are equal, except tubes and neckboards.
Now you can compare these documents with your Data 1209s
| Description: |
|
| Filesize: |
72.18 KB |
| Viewed: |
2980 Time(s) |
|
| Description: |
|
| Filesize: |
121.06 KB |
| Viewed: |
2982 Time(s) |
|
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
Tom.W
Joined: 09 Mar 2006
Posts: 6635
|
| Posted: Tue Jun 21, 2011 11:59 pm Post subject: |
|
|
Thanks for the reply's. So If I have this correct to convert a BD1209s to a BG1209s I need the following, all of which I have on hand.
Deflection switching board
controller
Horizontal board
Vertical board
The above boards all came from a BG1208s w/iris 3. Should the firmware work with the BD1209s or am I missing anything ?
|
|
| Back to top |
|
|
Ile
Joined: 09 Mar 2006
Posts: 1491
Location: Jyväskylä, Finland
|
| Posted: Wed Jun 22, 2011 7:46 am Post subject: |
|
|
I understanded needed boards same way, but check first that datas mother board have needed connectors for graphics deflection switching board. According to this post there is also datas with three yoke connectors at mobo, maybe those were some pre-series units.
Not sure about BG1208s firmware, probably it works fine.
|
|
| Back to top |
|
|
Tom.W
Joined: 09 Mar 2006
Posts: 6635
|
| Posted: Wed Jun 22, 2011 8:14 am Post subject: |
|
|
|
Thanks Ile I forgot that thread...
|
|
| Back to top |
|
|
|
|
