| Posted: Tue Mar 23, 2010 8:47 pm Post subject: Parts for the oh so wonderful ctc195 |
|
|
Hey all,

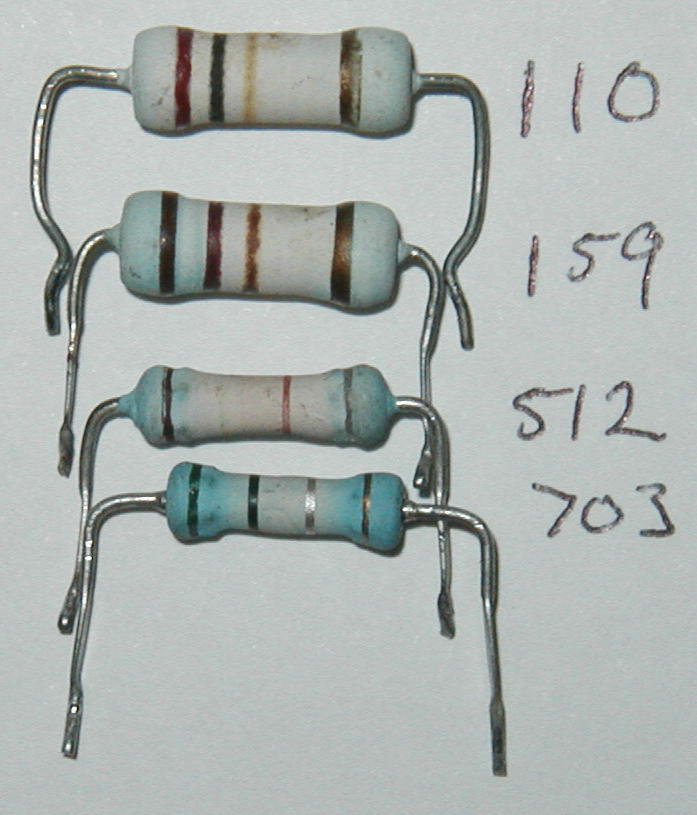

I have a 1999 RCA P61940. It is chassis PTK195E2T, the main board is chassis ctc195E. My HOT and flyback went bad and I replaced them. While adjusting convergence, I accidently cycled the power quickly a couple times because I had the front button pcb in hand. My HOT shorted again and the chirping started. I decided to inspect things more closely and found no ring cracks or cold solder joints. I did find 4 resistors that are discolored from overheating: R14110, R14159, R14512, and R14703. Some of the color bands are cooked beyond recognition. My service manual only covers chassis ctc195A-D. I really don't do enough repairs to buy another service manual, especially since none of the downloadable manuals specify the chassis variations covered. The color bands that I can read don't all match the parts lists for the previous chassis variations.
If someone can give me the correct values or even better an E chassis parts list and/or schematics, I would greatly appreciate it.
I know that once the factory deficiencies are corrected these are great projectors. I may convert it to a home theater projector just for S&G's since I have another rear projection tv.
Thanks.
