Posted: Thu Mar 04, 2010 11:15 pm    Post subject: Picture of B/BA Board
Afternoon,

Could someone please post a picture of the B/BA board.

Thank You

Quest
Back to top
ecrabb
Forum Moderator


Joined: 13 Mar 2006
Posts: 15909
Location: Utah

TV/Projector: JVC RS40, Epson 5010
Posted: Fri Mar 05, 2010 12:16 am    Post subject:
Look here:
http://www.curtpalme.com/SonyG70_Layout4.shtm

Here it is, in the projector, labeled "main input board":

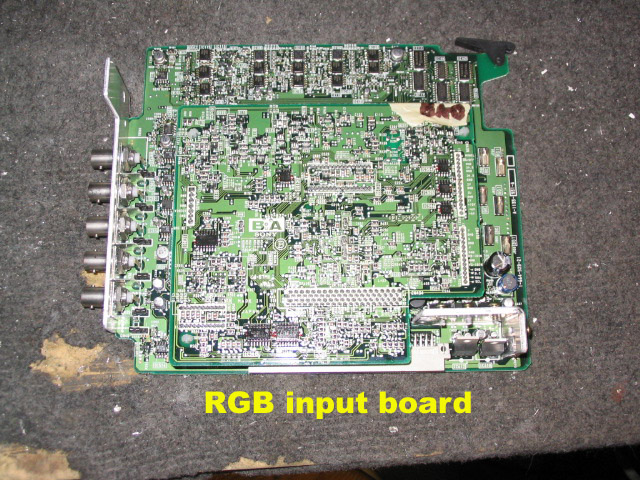

Here's on on Curt's bench - labeled "BAD" no less:


I still haven't had a chance to look at the service manual to see the signal flow for menus and patterns. I'll try to look tonight.

SC
