| Posted: Thu Jan 28, 2010 3:44 am Post subject: Need help finding micro switch for Berkline seats |
|
|

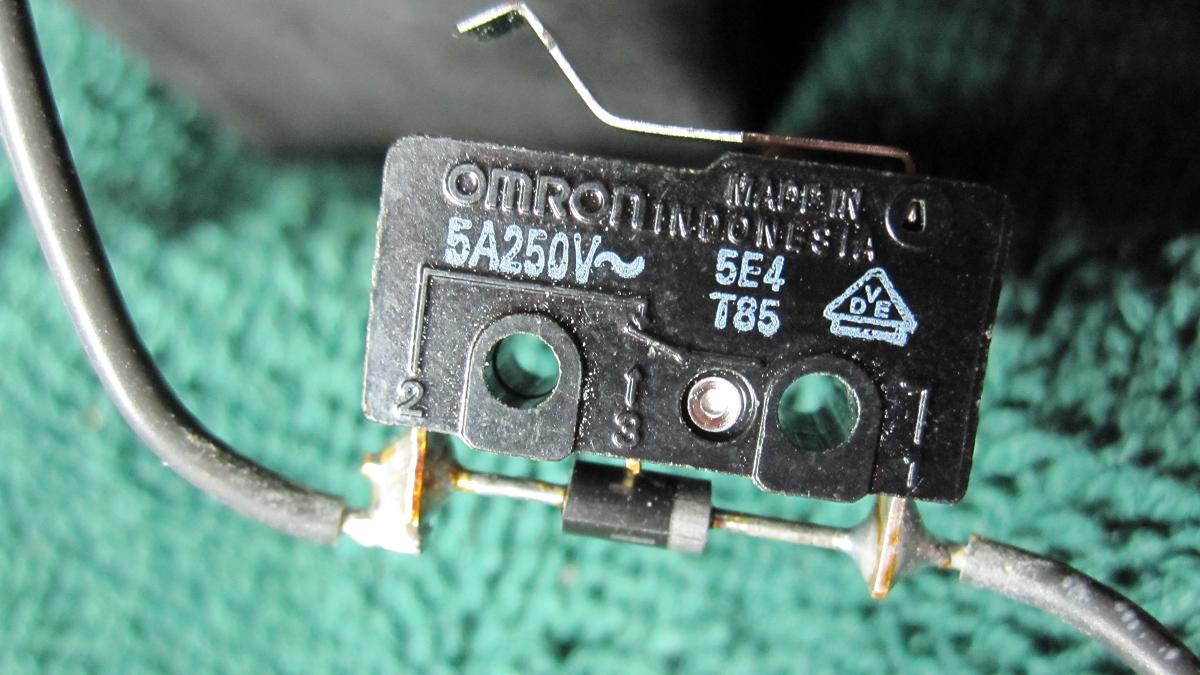

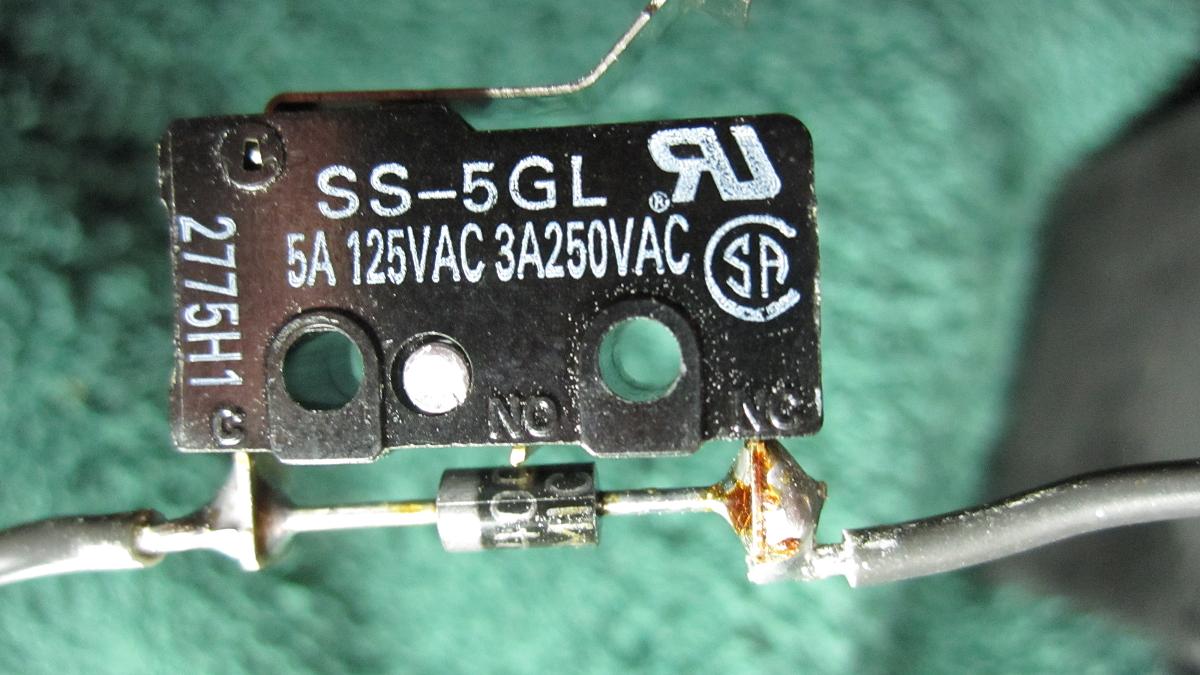

One of my Berklines would not retract this evening. When I got into it I found a bad micro switch. Any ideas on where I can find one of these? Maybe the local Grainger? Also, what little electronics that I had learned is failing me this evening. The black resistor looking device that is inline with the switch. What is this and I assume that I should buy a new one of these as well. Is there any way of telling the value of this from the pictures?
Thanks
Dan
| Description: |
|
| Filesize: |
112.95 KB |
| Viewed: |
8306 Time(s) |
|
| Description: |
|
| Filesize: |
109.92 KB |
| Viewed: |
8297 Time(s) |
|
|
|
| Back to top |
|
 |
Tom.W
Joined: 09 Mar 2006
Posts: 6635
|
| Posted: Thu Jan 28, 2010 3:51 am Post subject: |
|
|
|
Granger or Allied electronics should have a replacement for the switch.
|
|
| Back to top |
|
|
drice1234
Joined: 07 Oct 2006
Posts: 1309
Location: Allen, Texas
|
| Posted: Thu Jan 28, 2010 3:56 am Post subject: |
|
|
You are correct. I should have just goggled it first. I have 6 switches on order (good to have spares). Any help on the resistior looking item between the terminals?
Thanks
Dan
|
|
| Back to top |
|
|
Tom.W
Joined: 09 Mar 2006
Posts: 6635
|
| Posted: Thu Jan 28, 2010 3:59 am Post subject: |
|
|
Looks like a diode across the contacts.
Last edited by Tom.W on Thu Jan 28, 2010 4:04 am; edited 1 time in total
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Thu Jan 28, 2010 4:04 am Post subject: |
|
|
|
Thats a diode. It can easily be tested with a DMM. Current flows one way, not the other. If it is bad the numbers on it will verify what it is.
|
|
| Back to top |
|
|
AnalogRocks
Forum Moderator
Joined: 08 Mar 2006
Posts: 26706
Location: Toronto, Ontario, Canada
TV/Projector: Sony 1252Q, AMPRO 4000G
|
| Posted: Thu Jan 28, 2010 4:04 am Post subject: |
|
|
Looks like a diode to me
EDIT: Mac beat me to it.
_________________
Tech support for nothing
CRT.
HD done right!
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Thu Jan 28, 2010 4:07 am Post subject: |
|
|
Ha. I beat the both of you guys. Tom edited his post at the same time. Whats my prize?
|
|
| Back to top |
|
|
Tom.W
Joined: 09 Mar 2006
Posts: 6635
|
| Posted: Thu Jan 28, 2010 4:10 am Post subject: |
|
|
An all expense paid trip to AR's rum bar
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Thu Jan 28, 2010 4:12 am Post subject: |
|
|
| Tom.W wrote: | | An all expense paid trip to AR's rum bar |
Hell no. To cold up there. We're packin up now getting ready to head further south. I need more heat.......
|
|
| Back to top |
|
|
AnalogRocks
Forum Moderator
Joined: 08 Mar 2006
Posts: 26706
Location: Toronto, Ontario, Canada
TV/Projector: Sony 1252Q, AMPRO 4000G
|
| Posted: Thu Jan 28, 2010 4:14 am Post subject: |
|
|
| macgyver655 wrote: | | Ha. I beat the both of you guys. Tom edited his post at the same time. Whats my prize? |
Let's call it a 3 way tie and break out the 8 year old Bacardi.
_________________
Tech support for nothing
CRT.
HD done right!
|
|
| Back to top |
|
|
Tom.W
Joined: 09 Mar 2006
Posts: 6635
|
| Posted: Thu Jan 28, 2010 4:14 am Post subject: |
|
|
I just happen to know that Costa Rica is great this time of year........
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Thu Jan 28, 2010 4:32 am Post subject: |
|
|
| Tom.W wrote: | | I just happen to know that Costa Rica is great this time of year........ |
I remember. When are you moving there full time? Or are you there now?
|
|
| Back to top |
|
|
drice1234
Joined: 07 Oct 2006
Posts: 1309
Location: Allen, Texas
|
| Posted: Thu Jan 28, 2010 4:33 am Post subject: |
|
|
Thanks for the info guys. Just to further my electronics knowledge a little. There are two microswitches that are wired in parallel each with a diode. These wire back to a small board that also has the power for the 24v dc motor going into the board. There are no type of electronics on this board. The chair has a two position control switch that has only 2 wires going from it to the power supply for the motor. Obviously the micro switches are used to stop the motor when the chair reaches its limits. Are the diodes used in some way to signal if the chair is at the extended limit or the retracted limit therefore cutting one position of the control switch while allowing the other to work?
Thanks
Dan
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Thu Jan 28, 2010 4:49 am Post subject: |
|
|
Dan. Without seeing just how the seat is wired it would only be an assumption. My assumption would be that the diode is there to complete the circuit when the micro switch is in the open position to allow the circuit to be closed for the opposite seat function. Did you understand that or would you like another attempt at an explanation? LOL
In its current placement it cannot be any type of limit device. It would be more so for current flow in a specific direction when required.
|
|
| Back to top |
|
|
Tom.W
Joined: 09 Mar 2006
Posts: 6635
|
| Posted: Thu Jan 28, 2010 4:51 am Post subject: |
|
|
This might help. The switches only seam to be motion limiter switches.
http://en.wikipedia.org/wiki/Snubber
Last edited by Tom.W on Thu Jan 28, 2010 4:52 am; edited 1 time in total
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Thu Jan 28, 2010 4:51 am Post subject: |
|
|
|
So did I win the free trip to Costa Rica?
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Thu Jan 28, 2010 4:59 am Post subject: |
|
|
|
A snubber diode is almost always used on the coil side of a relay. Of course this is not a relay. Since this is a DC motor (I assume its DC) a snubber diode maybe possible but usually when its 1 motor that must function in 2 directions (forward and reverse) I not so sure that's what it would be for. But again, I would need to see a diagram.
|
|
