I am getting these horizontal reflections on my Barco Graphics 808.
It's like a ghosting image to the right of the actual image.
Any idea what can cause this?

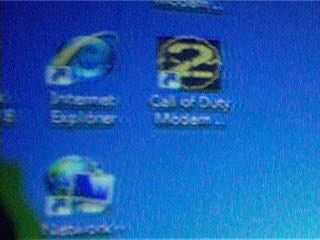

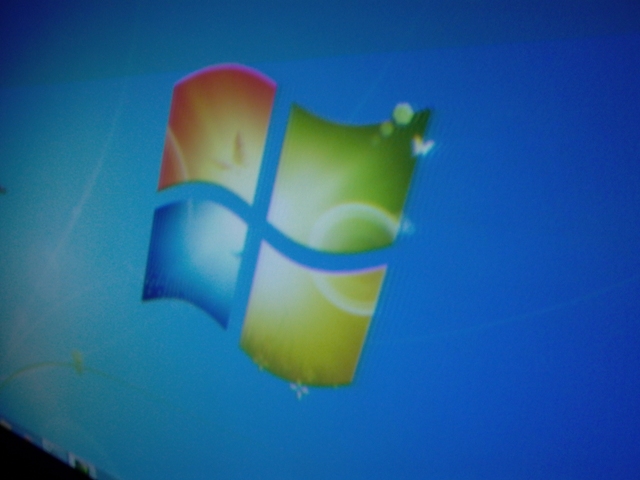

Check the attached pictures. (they are a little fuzzy - my camera is not that great but the problem is pretty clear)
I am connected through port 3 from a PC running an NVidia 8800 GTX card. I also tried port 5 and I get the same results.
Running Windows 7 at 720p.
Thanks for any advice!
| Description: |
|
| Filesize: |
20.11 KB |
| Viewed: |
2864 Time(s) |
|
| Description: |
|
| Filesize: |
143.14 KB |
| Viewed: |
2864 Time(s) |
|
|
|
| Back to top |
|
 |
sdumas
Joined: 23 Aug 2007
Posts: 39
Location: Montreal, Quebec
|
| Posted: Thu Dec 24, 2009 9:27 pm Post subject: |
|
|
Looking further into the problem. It seems that only the green tube is reflecting. The red and the blue are OK.
So definitely something with the green tube or related to the green "path".
|
|
| Back to top |
|
|
ecrabb
Forum Moderator
Joined: 13 Mar 2006
Posts: 15909
Location: Utah
TV/Projector: JVC RS40, Epson 5010
|
| Posted: Thu Dec 24, 2009 9:29 pm Post subject: |
|
|
That's usually caused by poor cabling, and is literally called "reflections". Cable extenders are a sure way to get reflections.
SC
|
|
| Back to top |
|
|
sdumas
Joined: 23 Aug 2007
Posts: 39
Location: Montreal, Quebec
|
| Posted: Thu Dec 24, 2009 10:29 pm Post subject: |
|
|
Can there be other problems than cabling?
I tried connecting directly onto the projector with a 6 feet cable and got the same result.
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Fri Dec 25, 2009 5:21 am Post subject: |
|
|
| sdumas wrote: | Can there be other problems than cabling?
I tried connecting directly onto the projector with a 6 feet cable and got the same result. |
could also be video neck-board ( on back of tube). Or it could be just a poor cable
|
|
| Back to top |
|
|
sdumas
Joined: 23 Aug 2007
Posts: 39
Location: Montreal, Quebec
|
| Posted: Tue Dec 29, 2009 5:20 am Post subject: |
|
|

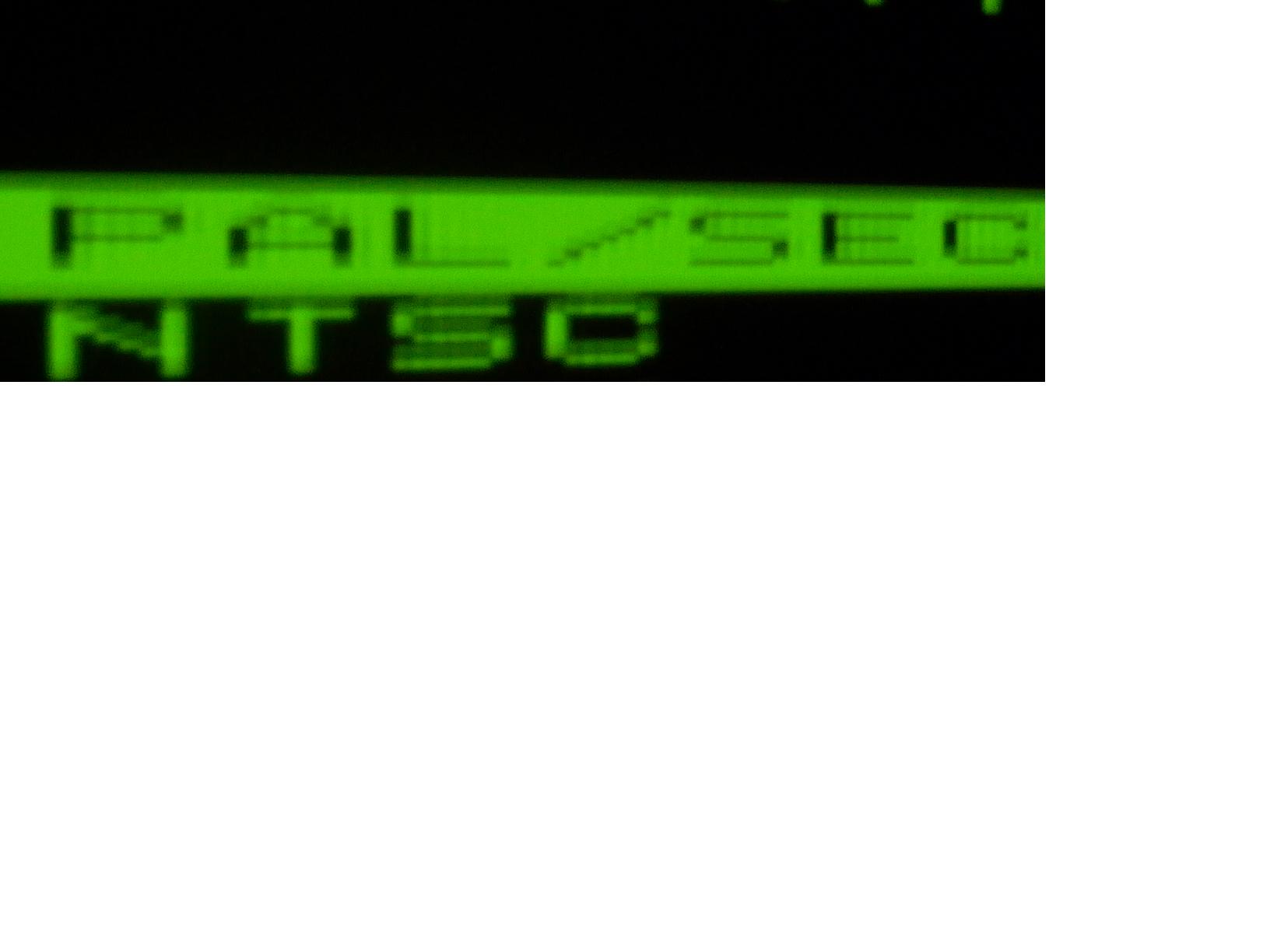

OK - this is a picture with NOTHING connected to the projector.
Just the Menu from the Barco.
The image is fuzzy, but you can still see the reflection.
So definitely not a cable as no cable is attached to the unit.
Neck board?
| Description: |
|
| Filesize: |
65.69 KB |
| Viewed: |
1830 Time(s) |
|
|
|
| Back to top |
|
|
Ile
Joined: 09 Mar 2006
Posts: 1491
Location: Jyväskylä, Finland
|
| Posted: Tue Dec 29, 2009 11:41 am Post subject: |
|
|
Is it 808 or 808s?
S have peaking settings under picture tuning, turn it off and see if it helps.
In plain 808, it could be bad switcher- or driver board, since reflection seem to be in all colors.
If it's only in green, then it could be bad rgb amp (boards over neck boards). Swap with red and see if problem follows.
|
|
| Back to top |
|
|
sdumas
Joined: 23 Aug 2007
Posts: 39
Location: Montreal, Quebec
|
| Posted: Wed Dec 30, 2009 3:57 am Post subject: |
|
|
Got it -
It was a bad RGB amp.
Changed the amp and now it's crystal clear.
Thanks for the pointer.
|
|
| Back to top |
|
|
jask
Joined: 17 Mar 2006
Posts: 10187
Location: kamloops BC
|
| Posted: Fri Jan 01, 2010 7:37 am Post subject: |
|
|
|
Barco Guru scores again.
|
|
