draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Sat Oct 10, 2009 9:57 pm Post subject: Does this look off to you? |
|
|

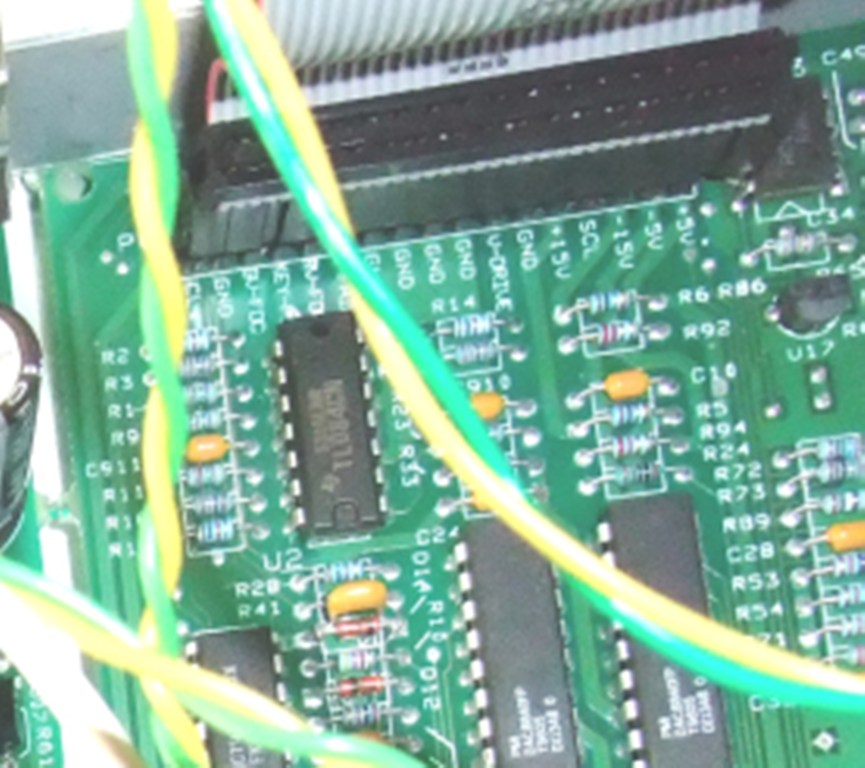

I've had 3 people contact me lately with " I put everything back together and no pic". 1 has been confirmed and fixed as being 1 pin off on ribbon cable. Here's another, does this look shifted to you?
| Description: |
|
| Filesize: |
120.91 KB |
| Viewed: |
6592 Time(s) |
|
|
|
| Back to top |
|
 |
Zebu Fellenz
Joined: 21 Dec 2006
Posts: 2567
|
| Posted: Sat Oct 10, 2009 10:15 pm Post subject: |
|
|
|
I say shifted.
|
|
| Back to top |
|
|
jkruger
Joined: 24 Oct 2007
Posts: 2435
Location: Carlsbad, CA
|
| Posted: Sat Oct 10, 2009 10:18 pm Post subject: |
|
|
|
Shifted
|
|
| Back to top |
|
|
ecrabb
Forum Moderator
Joined: 13 Mar 2006
Posts: 15909
Location: Utah
TV/Projector: JVC RS40, Epson 5010
|
| Posted: Sat Oct 10, 2009 10:21 pm Post subject: |
|
|
Sure looks shifted to me.
SC
|
|
| Back to top |
|
|
dturco
Joined: 06 Feb 2009
Posts: 3778
Location: Eastern Shore Maryland
TV/Projector: Runco DLP VX-3000i Marquee 9500 parts doner
|
| Posted: Sat Oct 10, 2009 10:26 pm Post subject: |
|
|
I say Snowflakes blocked his view causing him to reseat the ribbon connector improperly.
It's shifted...
_________________
Firefly rules. Can't stop the signal.
http://www.hulu.com/firefly
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
| Posted: Sat Oct 10, 2009 11:06 pm Post subject: |
|
|
Yepp it's off, i did that once went through everything and went Doh !!! after i realized i did it.
Drags, on the VDM you don't change the little mickey mouse resistors coming in on the power rails? R5.R6.R92. and R94? I used the same ones as near the larger caps,
more stable power to the board, I am looking at adding inductors there possibly in series.
Athanasios
_________________
Don't blame your underwear for your crooked ass~ unknown Greek philosopher
"Republicans believe every day is the Fourth of July, but the Democrats believe every day is April 15." --- President Reagan
One Smart Dog!!!
Marquee High Performance Bellows now shipping!!
Marquee Modifications and Performance Enhancement
Marquee C-element and Bellow removal
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Sun Oct 11, 2009 2:18 am Post subject: |
|
|
| Nashou66 wrote: | Yepp it's off, i did that once went through everything and went Doh !!! after i realized i did it.
Drags, on the VDM you don't change the little mickey mouse resistors coming in on the power rails? R5.R6.R92. and R94? I used the same ones as near the larger caps,
more stable power to the board, I am looking at adding inductors there possibly in series.
Athanasios |
yeah I don't know, what's the point of doing all this metiulous work, being careful, testing everything, and then sending it people who are going to put it all together wrong and f*ck it up anyway. Then send e-mails like "it was all working before I sent it to you".
This machine is now running after the Ribbon cable was plugged in correctly but it's got a vertical hold problem, probably damaged something on the VDM. I guess Curt's got a repair job coming..........
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
| Posted: Sun Oct 11, 2009 3:09 am Post subject: |
|
|
| draganm wrote: | | Nashou66 wrote: | Yepp it's off, i did that once went through everything and went Doh !!! after i realized i did it.
Drags, on the VDM you don't change the little mickey mouse resistors coming in on the power rails? R5.R6.R92. and R94? I used the same ones as near the larger caps,
more stable power to the board, I am looking at adding inductors there possibly in series.
Athanasios |
yeah I don't know, what's the point of doing all this metiulous work, being careful, testing everything, and then sending it people who are going to put it all together wrong and f*ck it up anyway. Then send e-mails like "it was all working before I sent it to you".
This machine is now running after the Ribbon cable was plugged in correctly but it's got a vertical hold problem, probably damaged something on the VDM. I guess Curt's got a repair job coming.......... |
looks like it jumped over two pins that would put the V-drive and the SCl on voltage pins, id check the resistors and diodes following the lines and then the chips themselves.
Athanasios
_________________
Don't blame your underwear for your crooked ass~ unknown Greek philosopher
"Republicans believe every day is the Fourth of July, but the Democrats believe every day is April 15." --- President Reagan
One Smart Dog!!!
Marquee High Performance Bellows now shipping!!
Marquee Modifications and Performance Enhancement
Marquee C-element and Bellow removal
|
|
| Back to top |
|
|
perisoft
Joined: 29 Aug 2007
Posts: 2920
Location: Ithaca, NY
|
| Posted: Sun Oct 11, 2009 4:15 am Post subject: |
|
|
When my dad designed the electronics for our motion systems, he set up the pinouts so a one-pin shift either way won't damage anything. Comes in handy during bleary-eyed late night troubleshooting...
_________________
|
|
| Back to top |
|
|
stefuel
Joined: 07 Mar 2006
Posts: 3353
Location: Green Harbor MA USA
|
| Posted: Sun Oct 11, 2009 11:59 am Post subject: |
|
|
Not to mention that the ribbon is not fully inserted.
Buy a real projector with real connectors. Ribbons suck!!!
_________________
Chip
A Barco is only a AmPro with training wheels
Card carrying member of the AVS chain gang.
|
|
| Back to top |
|
|
kal
Forum Administrator
Joined: 06 Mar 2006
Posts: 18114
Location: Ottawa, Canada
TV/Projector: JVC DLA-NZ7
|
| Posted: Sun Oct 11, 2009 12:50 pm Post subject: |
|
|
Dragan: When you ship back stuff to customers I'd suggest taping pieces of paper over the ribbon connectors with the following text:
| Quote: | | STOP! READ THIS FIRST! MAKE SURE TO LINE THE PINS UP CORRECTLY WHEN YOU PLUG THIS BACK IN. FAILURE TO DO SO WILL DAMAGE YOUR PROJECTOR. QUESTIONS? EMAIL DRAGANM@CURTPALME.COM |
By having it OVER the connector they'll be force to read/remove it before plugging it in. They always put stickers/text right on commercial products where it matters for those people that never read the manual so that this way they're at least forced to read something minimal.
I bet the people that did this have no idea that the pinout is important or matters. Why would they? They don't know electronics.
Kal
_________________
Support our site by using our affiliate links. We thank you!
My basement/HT/bar/brewery build 2.0
|
|
| Back to top |
|
|
stefuel
Joined: 07 Mar 2006
Posts: 3353
Location: Green Harbor MA USA
|
| Posted: Sun Oct 11, 2009 1:36 pm Post subject: |
|
|
| Quote: | | I bet the people that did this have no idea that the pinout is important or matters. Why would they? They don't know electronics. |
This is my biggest gripe with "provided mods"
If they can't do the mod themselves by following simple instructions then most likely they shouldn't be inside the machine in the first place.
1. I will never sell something that I have modified.
2. I will never again buy something that someone else has modified.
I bought a DOA projector that someone else attempted to modify for parts. I have never seen such butchery in my life.
It drives me frigging nuts when a newbee buys a projector and before he even learns how to set it up, is convinced to start modding it.
Rant off....
_________________
Chip
A Barco is only a AmPro with training wheels
Card carrying member of the AVS chain gang.
|
|
| Back to top |
|
|
kal
Forum Administrator
Joined: 06 Mar 2006
Posts: 18114
Location: Ottawa, Canada
TV/Projector: JVC DLA-NZ7
|
| Posted: Sun Oct 11, 2009 2:49 pm Post subject: |
|
|
Chip: You can't compare some hack job projector that you bought and compare it to what Dragan does. You're classifying all "mods" as the same. Not the same as all.
| Quote: | | If they can't do the mod themselves by following simple instructions then most likely they shouldn't be inside the machine in the first place. |
That doesn't make any sense. You're saying that the skill involved in removing/re-installing a few cards is the same as doing desoldering/soldering? I know a pile of people that do mods and will never *EVER* sell DIY mod kits because the skill involved is not anywhere near the same thing as just unplugging/re-plugging the part.
Why does anyone get a professional painter to paint rooms in their house if all it takes is a few gallons of paint and a roller? I mean, anyone should be able to follow instructions right? Pour the paint in the pan, dip in the roller, apply to wall, repeat. What's so hard about that?
Kal
_________________
Support our site by using our affiliate links. We thank you!
My basement/HT/bar/brewery build 2.0
|
|
| Back to top |
|
|
jkruger
Joined: 24 Oct 2007
Posts: 2435
Location: Carlsbad, CA
|
| Posted: Sun Oct 11, 2009 3:17 pm Post subject: |
|
|
| stefuel wrote: |
I bought a DOA projector that someone else attempted to modify for parts. I have never seen such butchery in my life.
Rant off.... |
Chip, Did you buy Gary's 1209s?
|
|
| Back to top |
|
|
stefuel
Joined: 07 Mar 2006
Posts: 3353
Location: Green Harbor MA USA
|
| Posted: Sun Oct 11, 2009 6:20 pm Post subject: |
|
|
| jkruger wrote: | | stefuel wrote: |
I bought a DOA projector that someone else attempted to modify for parts. I have never seen such butchery in my life.
Rant off.... |
Chip, Did you buy Gary's 1209s? |
What gave it away? Was it the "butchery" comment
No, it wasn't Gary's 1209/S. It was a E-home  It took me three days to bring it back to factory and clean up the mess. Then I gave it away.
Kal,
Not you, Curt, Dragan, The president of the US or God himself is going to change my opinion of mods for profit.
It is my opinion and I'm schticking to it.
_________________
Chip
A Barco is only a AmPro with training wheels
Card carrying member of the AVS chain gang.
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Sun Oct 11, 2009 7:04 pm Post subject: |
|
|
Man I was really bummed last night, doing a set like this is really hard and then to have it all jacked up on the "simple end" is really discouraging. It's like building a car and having somebody crash it into a tree on the test drive.
| kal wrote: | Dragan: When you ship back stuff to customers I'd suggest taping pieces of paper over the ribbon connectors with the following text: | Quote: | | STOP! READ THIS FIRST! MAKE SURE TO LINE THE PINS UP CORRECTLY WHEN YOU PLUG THIS BACK IN. FAILURE TO DO SO WILL DAMAGE YOUR PROJECTOR. QUESTIONS? EMAIL DRAGANM@CURTPALME.COM |
By having it OVER the connector they'll be force to read/remove it before plugging it in. They always put stickers/text right on commercial products where it matters for those people that never read the manual so that this way they're at least forced to read something minimal.
I bet the people that did this have no idea that the pinout is important or matters. Why would they? They don't know electronics.
Kal |
Well in the disassembly/re-assembly PDF there are warnings. The very first one on top of page is "if you have trouble follwing instructions then hire a pro" Also, it specifically mentions connectors
22) Make sure all 6 connectors are plugged in so that all 4 pins are engaged in the connector, DOUBLE CHECK THIS. If you are off to one side and skip a pin it will blow the channel out on the CVA.
23) Unlike the VDM scan reversal connectors. The CVA connectors only go one way and cannot be installed upside down
24) Reconnect Ribbon cables
25) IF you have a 1995 to 97, reconnect the White ground wire to the Vertical board.
I think what's happened this week is it got darker outside and people are trying to re-assemble their machines in dark home theaters poor lighting or no lighting. Kal we will definitely need to add 1 or 2 more pics with big RED lines through incorrectly connected cables. With a Caption of "DON"T DO THIS"
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Sun Oct 11, 2009 7:05 pm Post subject: |
|
|
| kal wrote: | Chip: You can't compare some hack job projector that you bought and compare it to what Dragan does. You're classifying all "mods" as the same. Not the same as all.
| Quote: | | If they can't do the mod themselves by following simple instructions then most likely they shouldn't be inside the machine in the first place. |
That doesn't make any sense. Kal |
is That news to anyone?
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Sun Oct 11, 2009 9:50 pm Post subject: |
|
|
I'm trying real hard not to comment here.......
|
|
| Back to top |
|
|
stefuel
Joined: 07 Mar 2006
Posts: 3353
Location: Green Harbor MA USA
|
| Posted: Sun Oct 11, 2009 10:19 pm Post subject: |
|
|
| macgyver655 wrote: | | I'm trying real hard not to comment here....... |
Let-err rip. I've got big shoulders and you can't sway my opinion either
BTW, re-read Kals argument with my opinion and then re-read the original first post in this thread
_________________
Chip
A Barco is only a AmPro with training wheels
Card carrying member of the AVS chain gang.
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Sun Oct 11, 2009 10:25 pm Post subject: |
|
|
| stefuel wrote: | | macgyver655 wrote: | | I'm trying real hard not to comment here....... |
Let-err rip. I've got big shoulders and you can't sway my opinion either
BTW, re-read Kals argument with my opinion and then re-read the original first post in this thread |
Whats makes you think I was against you?
|
|
| Back to top |
|
|
|
|
