Hello gents,
I've got a barco tri-level sync board (R762268T) for my BG808.It fits on the vertical deflection board and when intalled, it allows component HD directly on port 5.
The big deal is, adaptation of this board involves removal of three resistors (R28, R69, RR599) and one capacitor (C207) from the vertical deflection board (R7622685).
Does anyone knows if this mod has downsides too ? I mean, removing those components would give sync problems with some other inputs and sources ?
Thanks,
Stan
|
|
| Back to top |
|
 |
Ile
Joined: 09 Mar 2006
Posts: 1491
Location: Jyväskylä, Finland
|
| Posted: Sun May 10, 2009 10:10 am Post subject: Re: Barco HDTV module |
|
|
| Hulio wrote: | | it allows component HD directly on port 5. |
I highly doubt this, because projector (non s 808) still doesn't have decoder to chance component to rgb. It will work if your source can send rgb (sync on green) from component connectors, but "HDTV" board shouldn't be needed for this.
According to manual board is for RGB with tri-level sync, so board just chance old 90' style Japanise HD sync to normal. You don't get this style sync from modern sources.
It does look like that removing those components would cause problems with other sources.
You need external component to rgbhv (vga) transcoder and with that Barco doesn't need "HDTV" board.
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Sun May 10, 2009 11:13 am Post subject: |
|
|
hey Hulio

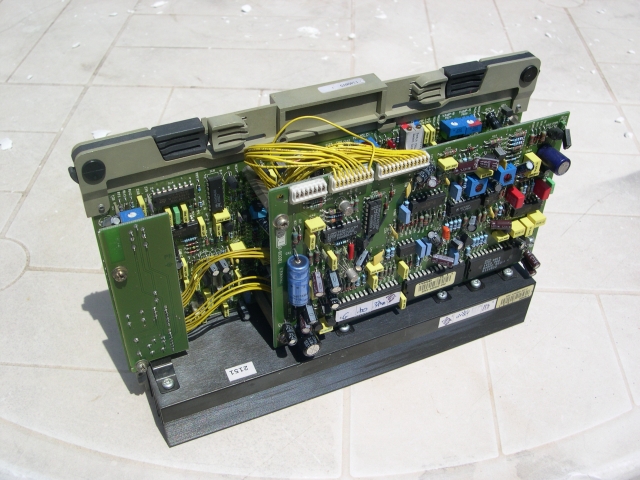

I've a unused Vert. Defl.+sync board.
It was pulled from a BG808s/E
p.n. of the board is R769008/R769008s

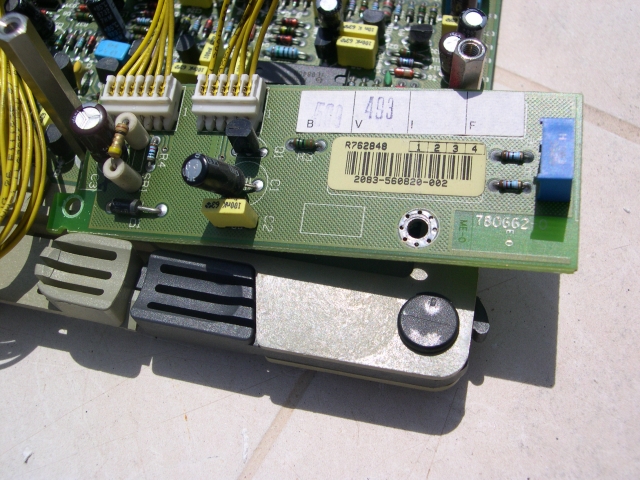

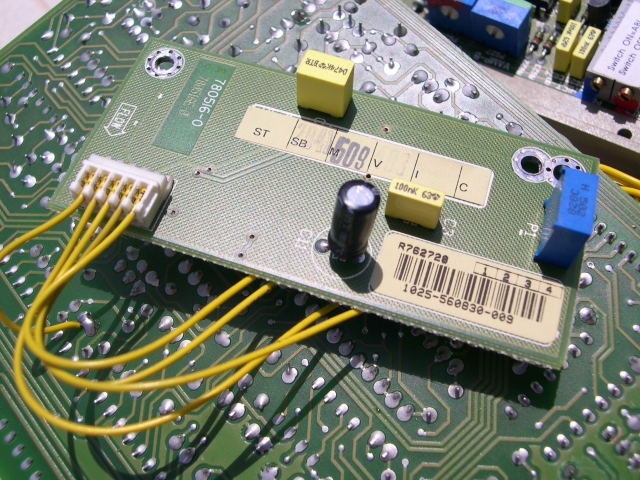

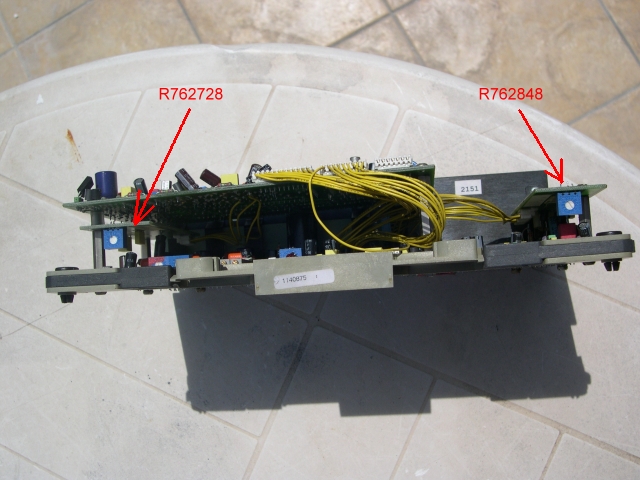

This board have two little sub boards with these part numbers:
R762848 and R762728
.... are tri-level sync boards?
| Description: |
|
| Filesize: |
293.78 KB |
| Viewed: |
5609 Time(s) |
|
| Description: |
|
| Filesize: |
331.96 KB |
| Viewed: |
5609 Time(s) |
|
| Description: |
|
| Filesize: |
230.23 KB |
| Viewed: |
5609 Time(s) |
|
| Description: |
|
| Filesize: |
258.66 KB |
| Viewed: |
5609 Time(s) |
|
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Sun May 10, 2009 12:07 pm Post subject: |
|
|
ooops
| Decibel wrote: |
R762848 and R762728
|
I have read wrong number, sorry
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Sun May 10, 2009 2:02 pm Post subject: |
|
|
Thanks for the info, Ile.If it does not add any value to the projector i wont bother installing it than.
@Decibel

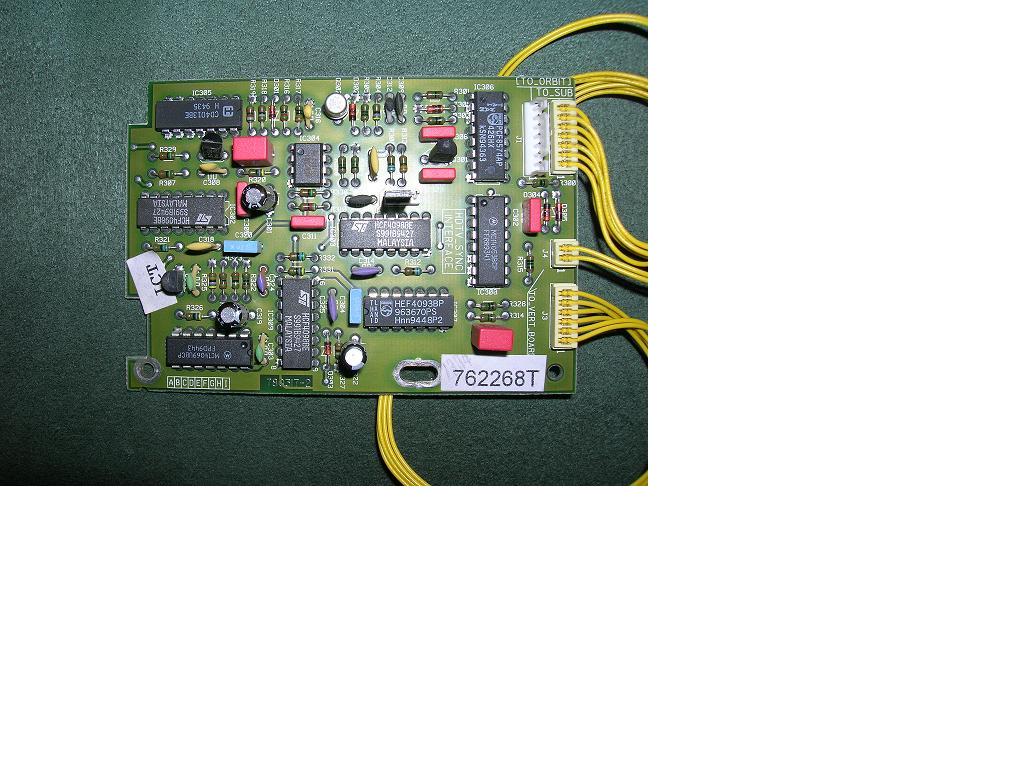

Here is what HDTV module looks like
| Description: |
|
| Filesize: |
118.48 KB |
| Viewed: |
5587 Time(s) |
|
|
|
| Back to top |
|
|
AnalogRocks
Forum Moderator
Joined: 08 Mar 2006
Posts: 26706
Location: Toronto, Ontario, Canada
TV/Projector: Sony 1252Q, AMPRO 4000G
|
| Posted: Sun May 10, 2009 4:23 pm Post subject: Re: Barco HDTV module |
|
|
| Ile wrote: | | Hulio wrote: | | it allows component HD directly on port 5. |
I highly doubt this, because projector (non s 808) still doesn't have decoder to chance component to rgb. It will work if your source can send rgb (sync on green) from component connectors, but "HDTV" board shouldn't be needed for this.
According to manual board is for RGB with tri-level sync, so board just chance old 90' style Japanise HD sync to normal. You don't get this style sync from modern sources.
It does look like that removing those components would cause problems with other sources.
You need external component to rgbhv (vga) transcoder and with that Barco doesn't need "HDTV" board. |
Tri-level sync is what HDTV in North America uses but over a YPbPr connection. So the Japaneese used RGB with tri-level for their earlier HD?
_________________
Tech support for nothing
CRT.
HD done right!
|
|
| Back to top |
|
|
aszego
Joined: 21 Aug 2008
Posts: 5
Location: Toronto, ON
|
| Posted: Tue Oct 23, 2012 1:22 am Post subject: |
|
|
| Hulio wrote: | Thanks for the info, Ile.If it does not add any value to the projector i wont bother installing it than.
@Decibel
Here is what HDTV module looks like |
Hulio, do you still have the Barco tri-level sync board (R762268T) and would you consider selling it?
Thanks
Andy
|
|
| Back to top |
|
|
Hulio
Joined: 15 Apr 2006
Posts: 494
Location: Belgium
|
| Posted: Tue Oct 23, 2012 2:46 pm Post subject: |
|
|
Hello Andy,
Check your PM box.
Regards,
Stan
|
|
