incova · Joined: 27 Nov 2006 Posts: 789 Location: london

I put the pj on and the red and blue lit up with test, the green did not, I pt that down to the fungus or maybe the subs were low etc. Anyway I took the tube out and found a couple of worrying things.

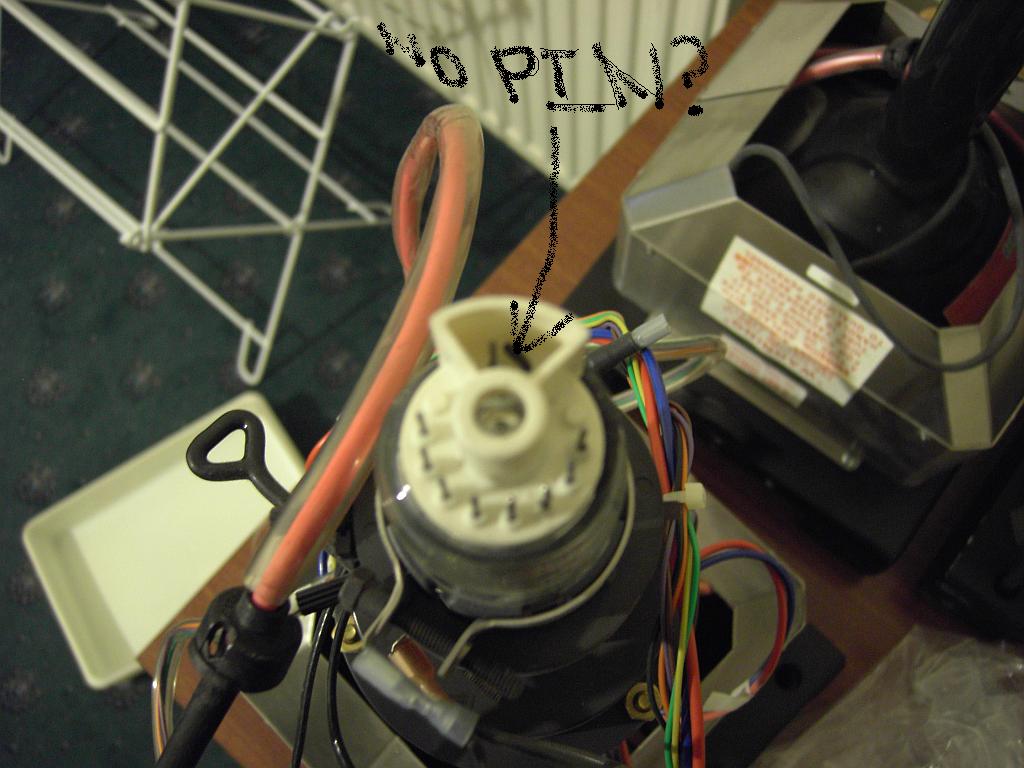

1: One of The pins on the tube was bent and there were 9 not 10 pins on the tube I will post a pic asap, there looked to be 10 but there is only a black stub where that was. There are 8 in a semi circle and 1 missing where there should be a couple.

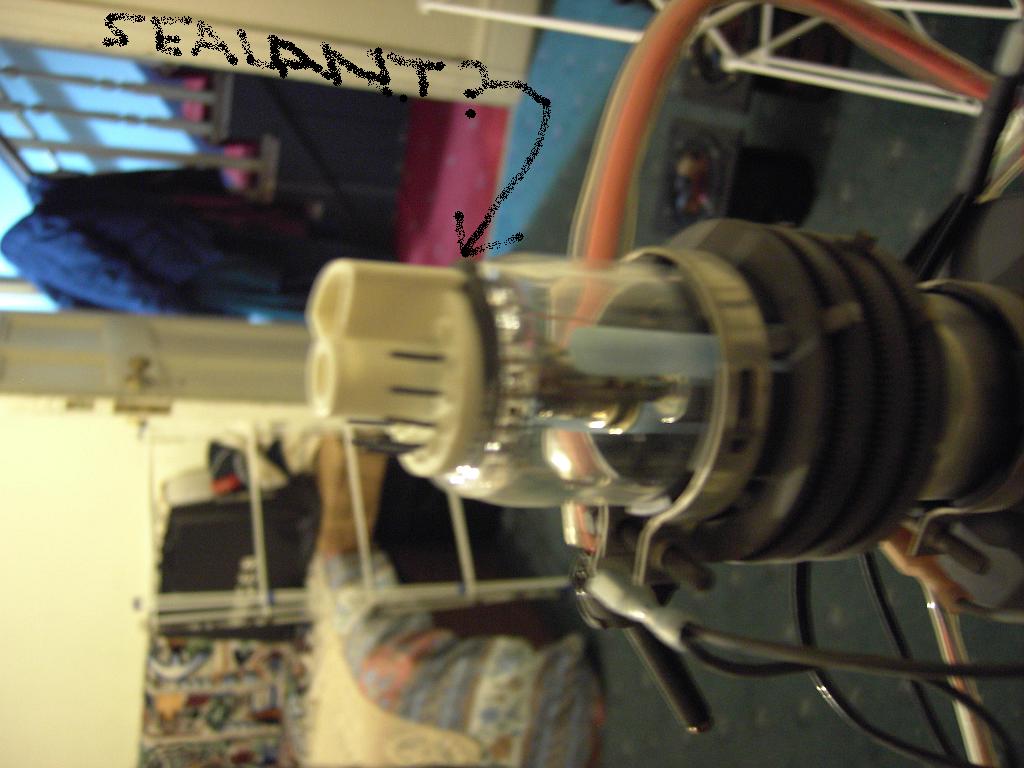

2: There is also some black sealant on the tube I have never had the pleasure of seeing so I am wondering what happened.

incova · Joined: 27 Nov 2006 Posts: 789 Location: london

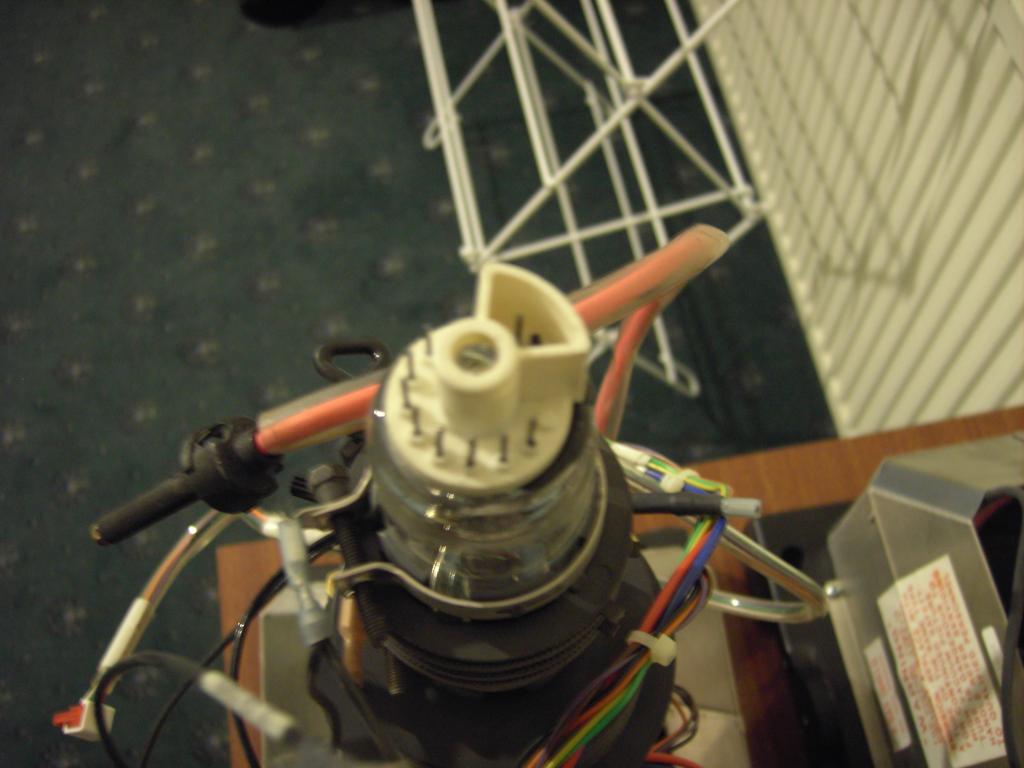

this should be a clearer pic

incova · Joined: 27 Nov 2006 Posts: 789 Location: london

Ok, looked at the pin or where the pin should be I thought, its like a piece of black rubber not metal, it flexes like rubber as well if this pin were burned surely it would bend not flex, it does not break just flexes.

incova · Joined: 27 Nov 2006 Posts: 789 Location: london

This problem has been macgyvered!

case closed, thank you all. Smile

SisterOfMercy · Posted: Thu Nov 27, 2008 7:55 pm Post subject:

Tell us, what was the problem?

incova · Joined: 27 Nov 2006 Posts: 789 Location: london

There was no label on the tube and no output from the green tube, i thought the tube was dead and just left in with no pin as the pin had broken of. This would laso give the fungus time to accumulate which it had in the lc chamber. The remote was set to executive so i put a 909 code in, then put the subs up then tried switching the green on off, still nothing, i then switched the black cable on the rgb board the one for the green around and voila the tube came on. The problem was that this tube is fundamentally different from the rest as it seems to be missing a pin for g1 or g2, however, macgyver talked me through it and he takes full credit because I thought the tube was dead, Curt also told me that the g2 is probably sent through another pin, very lucky on my part, very strange though for me as i guess I have not seen this pin layout.

Nashou66 · Joined: 12 Jan 2007 Posts: 16171 Location: West Seneca NY

If G2 was on pin 6 its an LUG. Glad it was that and your lucky the pin you had G2 connected to didn't fry the tube.

Athanasios

stefuel · Posted: Fri Nov 28, 2008 12:36 am Post subject:

You would think I should know this but as AmPro's are so trouble free I forget. But I don't think there is any modification to be made to a AmPro to accept a LUG as AmPro and Barco share the same tube/pinout.
Hurry up and paint that friggin thing will ya.

incova · Joined: 27 Nov 2006 Posts: 789 Location: london

The shocking pink has been ordered as per you command lol

I have just popped out the tube again and removed the glycol as you suggested then I will get some allen keys that fit and remove c element, I think I need a 3.5 mm allen and a 4.5 for the screws holding the tubes odd sizes for the U.K.

paint is coming as well, heat resistant stuff, that should take care of the fungus I hope, then I will refill it and put it all back together.

There are two of these tubes with the 2 blue guns in them the red is white/yellow guns, the green and the blue I think, it would be amazing if they were lugs, do lugs have blue/blue guns?

Nashou66 · Joined: 12 Jan 2007 Posts: 16171 Location: West Seneca NY

Look At the pics in the Link I sent you. Look into the tube neck and follow any connections to the G2 grid to the pin on the end of the tube. Then look at that pin Diagram I sent you as well. Then determine which pin is connected to the G2 gun inside the tube and reference it to the Diagram. The we will Know for sure what kind of tube it is.
G2 for standard LCP09 is pin 2 for the P19LCP07 and the P19LUG its pin 6. Also do a resistance reading between pins 9 and 10 to make sure its not a Sonypin out.
But since you say there is no pin on pin 2 and it has the silicone that holds the socket coming out that looks like a black pin then its not a standard LCP09 with the G2 on Pin2.
I have the sony pin out tubes and the sockets are put on so the key in a certain location for different CRT socketed video boards.

Can you take a nice close up of the internal on the neck and try to show any connection from the G2 disc in the tube to a pin, then let us know what pin it is.

Athanasios

incova · Joined: 27 Nov 2006 Posts: 789 Location: london

Athanasios thanks for that I will have to do it in about 10 hours 2 am here now! so most likely i will chat to you later, thanks again, photos will be coming.

stefuel · Posted: Fri Nov 28, 2008 2:49 am Post subject:

I wouldn't bother with painting the LC chamber. A good cleaning and new fluid will last the rest of the life of the projector. I doubt you'll find any defects on the existing coating. Also, I think you'll find that the allen screws are a SAE size, not metric.

Nashou66 · Joined: 12 Jan 2007 Posts: 16171 Location: West Seneca NY

incova · Joined: 27 Nov 2006 Posts: 789 Location: london

This is the problem in this tube I can clearly see exposed metal which is what I think caused this I think I will have to paint it, the 3.5mm allen key is a bit to small, looks like its imperial size, anyone know the exact size of the allen key needed to open the LC chamber ? I used to have one but its gone missing from the last time I changed out glycol on the 4300.

incova · Joined: 27 Nov 2006 Posts: 789 Location: london

looking at the pictures Nashou66 I think that pin 6 does indeed go to the g2, pin 5 seems to go into the g1, pin 7 seems to not do anything, i am just in the process of cleaning this tube so will get back to this after.

Nashou66 · Joined: 12 Jan 2007 Posts: 16171 Location: West Seneca NY

Then that could be an LUG or a LCP07 .
Now you would need to look closely at the neck boards to see if they are different that the other tube.
Post pics of any difrences so Chip can study them. I dont own an ampro.

Athanasios

incova · Joined: 27 Nov 2006 Posts: 789 Location: london

pin 6 does indeed go to the g2, pin 5 seems to go into the g1, pin 7 no contact, pins 11, 12 g1, um, this is going to sound weird the silicon pin the one thats not there pin 2 it also contacts to g2 ?! i looked and looked again its not pin 1, pins 8,9,10 seem to go into the center of the G1 but not contact it, does this make sense?

incova · Joined: 27 Nov 2006 Posts: 789 Location: london

Looking at that link you gave me

http://www.curtpalme.com/forum/viewtopic.php?p=141289#141289

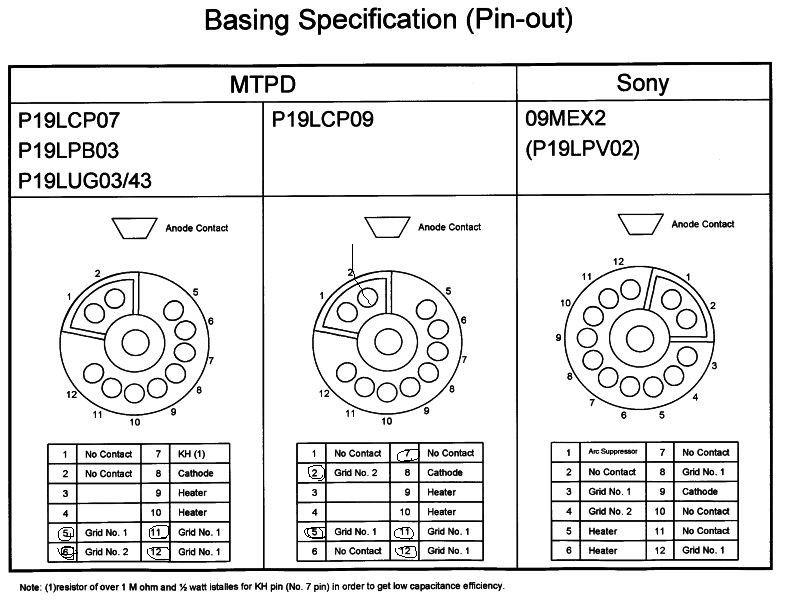

the tube guns are blue like the sony tubes, the pinout is circled as far as i understand it, I wonder if anyone else has tubes like this.

Nashou66 · Joined: 12 Jan 2007 Posts: 16171 Location: West Seneca NY

9 and 10 are the heaters and should go there into the center. I doubt G2 goes to the silicone pin area but it may. Some tubes I think have more than one way to
apply G2 and then they break a pin off not to confuse the installer. Are you sure there is not markings on the bell? the Underside?

Athanasios

incova · Joined: 27 Nov 2006 Posts: 789 Location: london

checking for markings wouldnt that be great!, i am going to look at the other tube in the pj like this one and see if thats got any markings.

Only a serial number 55156, the labels are ripped of both, weird.
