| Author |
Message |
mp20748
Joined: 12 Sep 2006
Posts: 5689
Location: Maryland
TV/Projector: 9500LC Ultra / Super 02 and 03 VIM
|
| Posted: Sun Mar 15, 2015 2:56 pm Post subject: |
|
|
| CxTurbo wrote: | | I finally got around to finishing my FCM. I installed these inductors last and in fact did have to to re-adjust the RGB focus. So there was a change somewhere. I notice I was able to get the lines much sharper as almost all of the flare is gone now. |
The convergence should've also needed a touch-up?
| Quote: | | Would the HDM also benefit from the same inductors on the 4 power rails I wonder? |
The only concern for the HDM would be L2. I'm sure I've already changed it on mine, but not sure what I put there.
|
|
| Back to top |
|
 |
CxTurbo
Joined: 13 Oct 2008
Posts: 425
Location: Ontario, Canada
|
| Posted: Sun Mar 15, 2015 2:58 pm Post subject: |
|
|
Indeed it did Mike. Much sharper grid now.
_________________
Paradigm Studio 100's,Studio 20's,CC-690, Paradigm DSP-3400 V1 SUB
Pioneer Elite SC-35 AVR
Pioneer Elite BDP-05FD Bluray
3x Bryston 3B's
URC Complete Control Medius TX-1000 Remote
HTPC (LGA775 Q6600, 8GB DDR2, 7TB Storage) Mediaportal
Lumagen MINI 3D
Moome FULLHD-EXT V2
Audioquest Cable Top to Bottom
9501LC
|
|
| Back to top |
|
|
CSX
Joined: 11 Feb 2015
Posts: 142
Location: Ohio
|
| Posted: Mon Mar 16, 2015 4:59 am Post subject: |
|
|
| CxTurbo wrote: | I finally got around to finishing my FCM. I installed these inductors last and in fact did have to to re-adjust the RGB focus. So there was a change somewhere. I notice I was able to get the lines much sharper as almost all of the flare is gone now.
Would the HDM also benefit from the same inductors on the 4 power rails I wonder?
I talked with Nash a long time ago but still need to do the CLM and finish my VIM.
Now if I could just figure out the damn Lumagen and get rid of the Jutter in the image. It really is an annoyance I could live without. |
Are you able to find any negative visual side effects?
Mike stated there was increased mosquito-ing.
Anything to add to this, from your perspective?
|
|
| Back to top |
|
|
CxTurbo
Joined: 13 Oct 2008
Posts: 425
Location: Ontario, Canada
|
| Posted: Mon Mar 16, 2015 10:39 pm Post subject: |
|
|
| CSX wrote: | Are you able to find any negative visual side effects?
Mike stated there was increased mosquito-ing.
Anything to add to this, from your perspective? |
Not that I can see myself. I do have very low noise reduction settings in place on my Lumagen though.
My biggest issue now is the "jutter" I get because of the settings in the Lumagen for 1080P@60. I just do not know enough about setting custom clocks in the Lumagen.
_________________
Paradigm Studio 100's,Studio 20's,CC-690, Paradigm DSP-3400 V1 SUB
Pioneer Elite SC-35 AVR
Pioneer Elite BDP-05FD Bluray
3x Bryston 3B's
URC Complete Control Medius TX-1000 Remote
HTPC (LGA775 Q6600, 8GB DDR2, 7TB Storage) Mediaportal
Lumagen MINI 3D
Moome FULLHD-EXT V2
Audioquest Cable Top to Bottom
9501LC
|
|
| Back to top |
|
|
CSX
Joined: 11 Feb 2015
Posts: 142
Location: Ohio
|
| Posted: Mon Mar 16, 2015 10:51 pm Post subject: |
|
|
| CxTurbo wrote: | | CSX wrote: | Are you able to find any negative visual side effects?
Mike stated there was increased mosquito-ing.
Anything to add to this, from your perspective? |
Not that I can see myself. I do have very low noise reduction settings in place on my Lumagen though.
My biggest issue now is the "jutter" I get because of the settings in the Lumagen for 1080P@60. I just do not know enough about setting custom clocks in the Lumagen. |
Fair deuce.
Would you be able to do an evaluation at @24Hz and post the results?
|
|
| Back to top |
|
|
CxTurbo
Joined: 13 Oct 2008
Posts: 425
Location: Ontario, Canada
|
| Posted: Mon Mar 16, 2015 10:57 pm Post subject: |
|
|
I have never tried 24Hz.
Will the Marquee sync that low?
I can give it a go and post results. Might be a few days though not sure when I will be able to find time.
_________________
Paradigm Studio 100's,Studio 20's,CC-690, Paradigm DSP-3400 V1 SUB
Pioneer Elite SC-35 AVR
Pioneer Elite BDP-05FD Bluray
3x Bryston 3B's
URC Complete Control Medius TX-1000 Remote
HTPC (LGA775 Q6600, 8GB DDR2, 7TB Storage) Mediaportal
Lumagen MINI 3D
Moome FULLHD-EXT V2
Audioquest Cable Top to Bottom
9501LC
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
CSX
Joined: 11 Feb 2015
Posts: 142
Location: Ohio
|
| Posted: Tue Mar 17, 2015 8:45 pm Post subject: |
|
|
Can anyone report negative visual artifacts being introduced into the picture by the additions of these mods?
Nashou66: Is there a specific justification for 1000uf caps on the power rails / focus amps? And were the voltages changed on these caps, or just the uf?
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
CSX
Joined: 11 Feb 2015
Posts: 142
Location: Ohio
|
|
| Back to top |
|
|
mp20748
Joined: 12 Sep 2006
Posts: 5689
Location: Maryland
TV/Projector: 9500LC Ultra / Super 02 and 03 VIM
|
| Posted: Wed Mar 18, 2015 12:53 pm Post subject: |
|
|
| CSX wrote: | http://www.ebay.com/itm/QTY-10-IHA201-DALE-AXIAL-HIGH-CURRENT-INDUCTORS-27uH-FREE-SHIPPING-/111298292564?pt=LH_DefaultDomain_0&hash=item19e9e52b54
These inductors look like they will fill the role. Thoughts on this style? |
They look to do the job, but they would have to have near zero DC resistance. If you find the spec sheet post it, it should have the DC resistance.
And you would need a special meter to read very low DC resistance.
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
mp20748
Joined: 12 Sep 2006
Posts: 5689
Location: Maryland
TV/Projector: 9500LC Ultra / Super 02 and 03 VIM
|
| Posted: Wed Mar 18, 2015 2:19 pm Post subject: |
|
|
| Nashou66 wrote: |
DCR of .06 should be ok.
Nashou |
Yes, perfect!!!!
|
|
| Back to top |
|
|
CxTurbo
Joined: 13 Oct 2008
Posts: 425
Location: Ontario, Canada
|
| Posted: Wed Mar 18, 2015 10:41 pm Post subject: |
|
|
I did not think it would sync @ 24Hz
Increasing the sync as Craig and you suggested worked a bit but I need to recalculate the clock to push it any further I believe Craig indicated. I am just useless with the way Lumagen has designed their firmware. It was so much easier with the DVDO.
I have noticed no ill effects as of yet.
I plan to use Barclay's suggestions on the VDM with the caps and inductors and look into what can be done on the HDM. I can tackle the VIM and CLM once I dig through my junk and what film caps we wanted to add on the ceramics.
Sorry to side track this a bit Mike.
Back on topic now.
_________________
Paradigm Studio 100's,Studio 20's,CC-690, Paradigm DSP-3400 V1 SUB
Pioneer Elite SC-35 AVR
Pioneer Elite BDP-05FD Bluray
3x Bryston 3B's
URC Complete Control Medius TX-1000 Remote
HTPC (LGA775 Q6600, 8GB DDR2, 7TB Storage) Mediaportal
Lumagen MINI 3D
Moome FULLHD-EXT V2
Audioquest Cable Top to Bottom
9501LC
|
|
| Back to top |
|
|
CSX
Joined: 11 Feb 2015
Posts: 142
Location: Ohio
|
| Posted: Tue Mar 24, 2015 7:23 pm Post subject: |
|
|
New iron portion for my soldering station arrived yesterday. The inductors have been in for awhile.
I'm going to go ahead and build out this board, but won't be able to put it to test / function till I get a replacement green tube.
Capacitor upgrades to 1k uF will be done, but only after the inductors have been thoroughly tested.
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
CSX
Joined: 11 Feb 2015
Posts: 142
Location: Ohio
|
| Posted: Tue Mar 24, 2015 9:20 pm Post subject: |
|
|
| Nashou66 wrote: | Dont forget caps C115,215,and 315 . Change them with a high quality film cap like Wima or vishay .
Nashou |
Identical values?
|
|
| Back to top |
|
|
Nashou66
Joined: 12 Jan 2007
Posts: 16171
Location: West Seneca NY
|
|
| Back to top |
|
|
barclay66
Joined: 27 Jun 2011
Posts: 1304
Location: Germany
TV/Projector: Marquee 9500 Ultra
|
| Posted: Wed Mar 25, 2015 7:49 am Post subject: |
|
|
Hi,
Earlier in this thread there was a discussion about the possibility of running the FGM cooler by using the right caps on the dynamic focus circuit (a.k.a. selecting the best cap value at a specific scan frequency for the self-resonant amplifier).

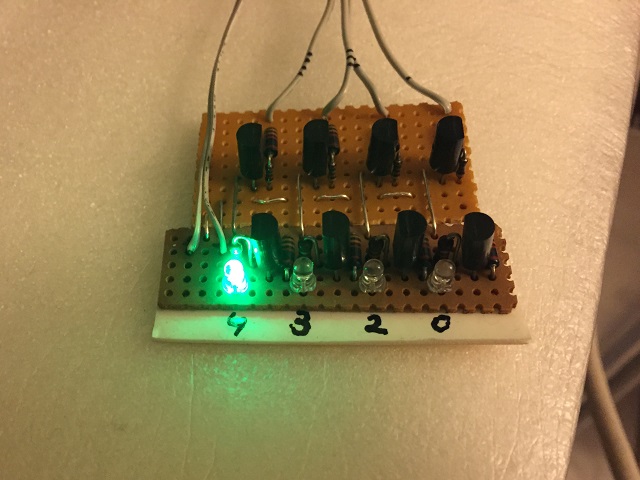

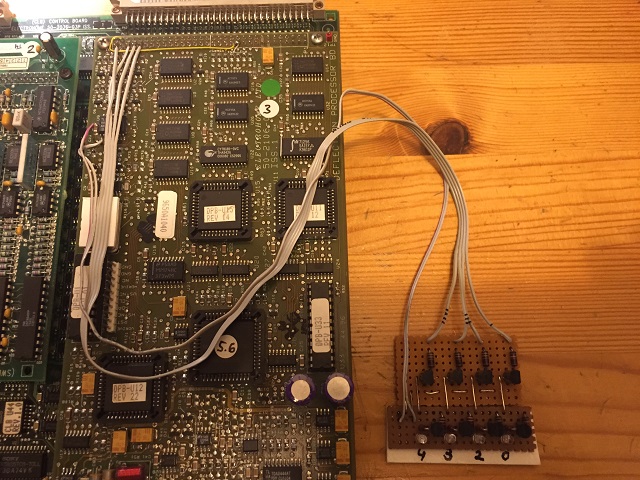

This sparked my interest in the way how the switching of capacitors is designed in a Marquee. So I've built a small circuit which allows me monitoring the switching signals originating from the Deflection Processor Board (DBP).
Interestingly enough, the DBP would be able to create four signals and all of them are present at the FGM slot connector. Nevertheless, the FGM makes use of only three of them and the Marquee's firmware doesn't make use of the fourth line either (it's always inactive).

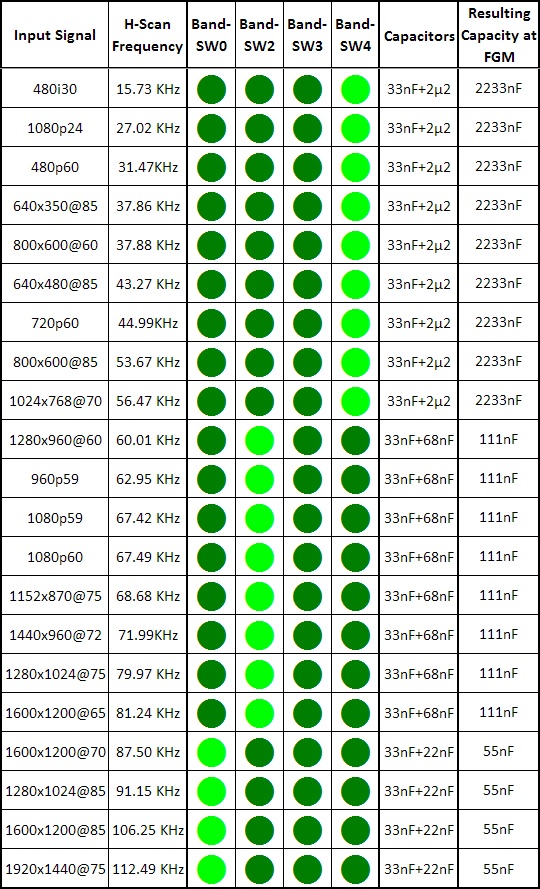

Using my Sencore Video Pro test pattern generator, I made a list of different input sgnals in relation to the switched caps on the FGM. So anyone that would like to modify their values (e.g. trying out the best value for a given input signal) can see, which of the three caps per channel is active at a given scan frequency. Enjoy...
Regards,
barclay66
P.S.: These are the relationships between the Band-SW Signals and the cap part numbers:
C118/218/318, 22nF, Band-SW0
C119/219/319, 68nF, Band-SW2
C120/220/320, 2.2µF, Band-SW4
| Description: |
|
| Filesize: |
165.42 KB |
| Viewed: |
9543 Time(s) |
|
| Description: |
|
| Filesize: |
93.05 KB |
| Viewed: |
9543 Time(s) |
|
| Description: |
|
| Filesize: |
240.89 KB |
| Viewed: |
9543 Time(s) |
|
|
|
| Back to top |
|
|
redfox001
Joined: 16 Mar 2009
Posts: 2257
Location: The Netherlands
|
| Posted: Wed Mar 25, 2015 11:08 am Post subject: |
|
|
Nice!
_________________
701s->runco933->8500ultra->cinemax->9500mp->919 splitpack + cinemax
|
|
