| Posted: Fri Jan 10, 2014 10:32 pm Post subject: Convering 1209 to 1209SE (continous scheimpflug) |
|
|

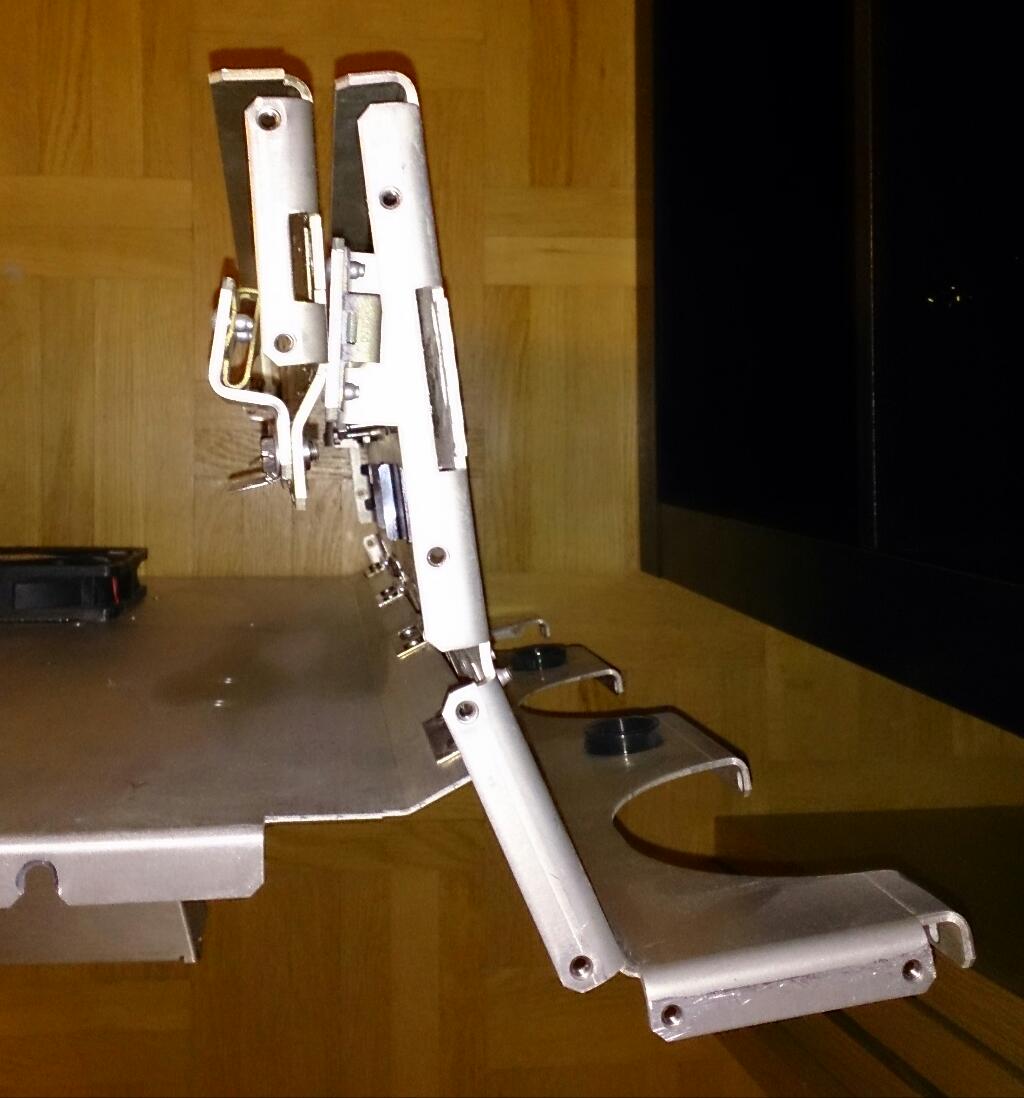

I got a pile of stuff in the mail today in order to convert my BG1209/2 to continous scheimpflug. First off, the chassis seem to differ. I was under the impression that I might have to make new holes and use nuts since there would be no press-nuts in the correct spots. If I line up the top piece which the housings are attached to to match the outer cover, the hinges will go several centimeter further to the front than they should. I can cut out a piece of sheet metal to extend it but there are other differences too like ventilation holes differ and the side plates are too short on mine for the top piece to be attached with both screws on each side.
This must have been done before. What is the correct procedure?
| Description: |
| 1209s-top plate on the left side. |
|
| Filesize: |
86.82 KB |
| Viewed: |
8718 Time(s) |
|
_________________
| Melifluonze wrote: | | Digital is easy. This is torture, but far more interesting... |
|
|
| Back to top |
|
 |
AnalogRocks
Forum Moderator
Joined: 08 Mar 2006
Posts: 26706
Location: Toronto, Ontario, Canada
TV/Projector: Sony 1252Q, AMPRO 4000G
|
| Posted: Sat Jan 11, 2014 12:27 am Post subject: |
|
|
Hey if all fails, you can strap those to your boots and walk across the ice.
_________________
Tech support for nothing
CRT.
HD done right!
|
|
| Back to top |
|
|
winny
Joined: 09 Oct 2013
Posts: 403
Location: Sweden
TV/Projector: BD808s, BG1209/2
|
| Posted: Sat Jan 11, 2014 1:36 pm Post subject: |
|
|
No, if it fails, I'll stop using CRTs and sell both projectors in parts. Besides, I have these for getting across the ice. Great stuff.
| Description: |
|
| Filesize: |
201.29 KB |
| Viewed: |
8685 Time(s) |
|
_________________
| Melifluonze wrote: | | Digital is easy. This is torture, but far more interesting... |
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Sun Jan 12, 2014 9:08 am Post subject: |
|
|

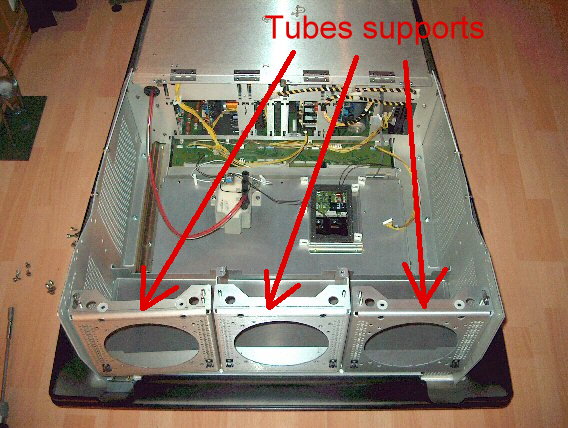

You must to use the 1209s top cover and the tube's supports that you see below.
| Description: |
|
| Filesize: |
85.97 KB |
| Viewed: |
8664 Time(s) |
|
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
winny
Joined: 09 Oct 2013
Posts: 403
Location: Sweden
TV/Projector: BD808s, BG1209/2
|
| Posted: Sun Jan 12, 2014 1:31 pm Post subject: |
|
|

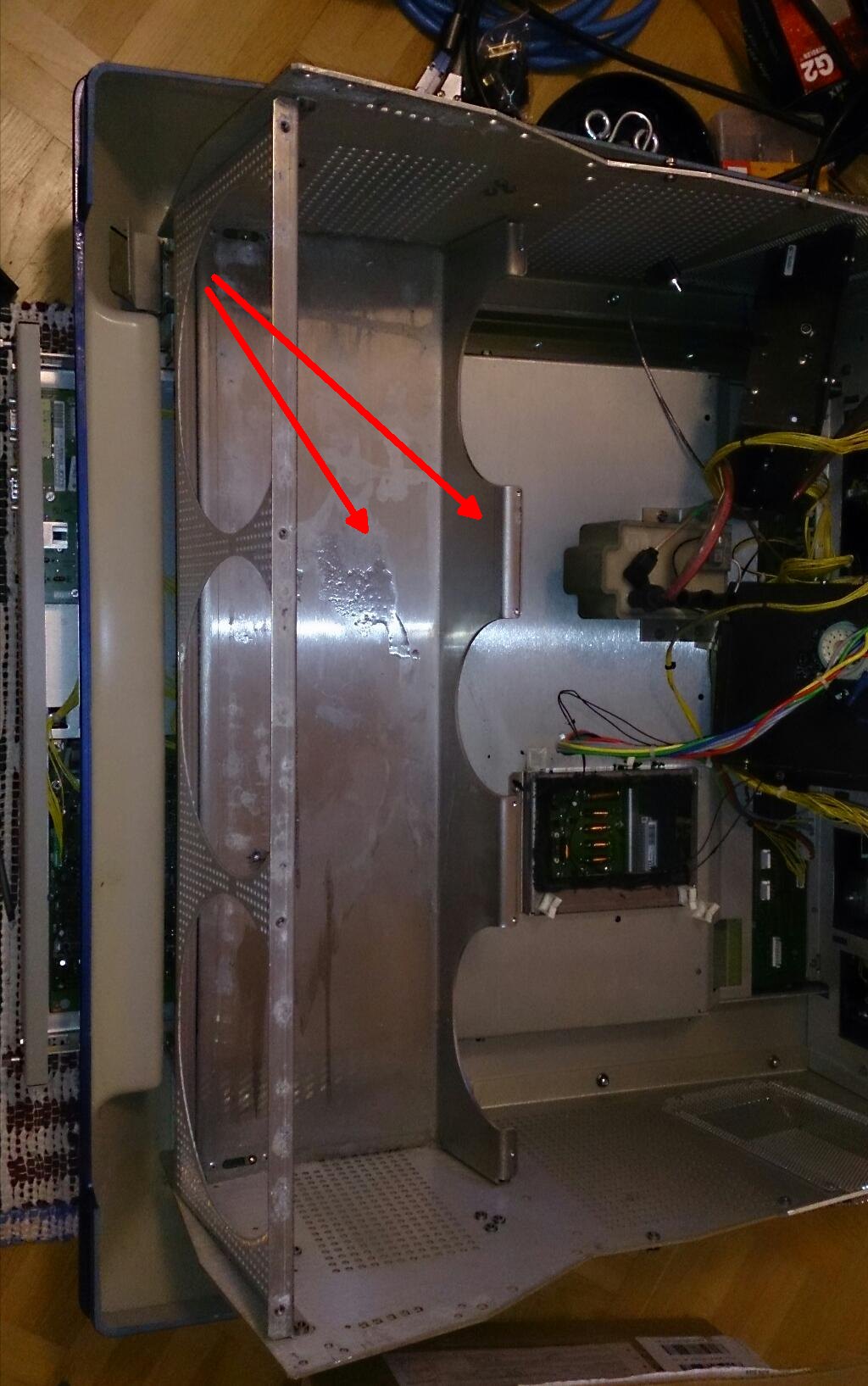

This L-bracket seems to differ. Do someone happen to have a photo of it at a different camera angle where the screw holes close to the front is visible?

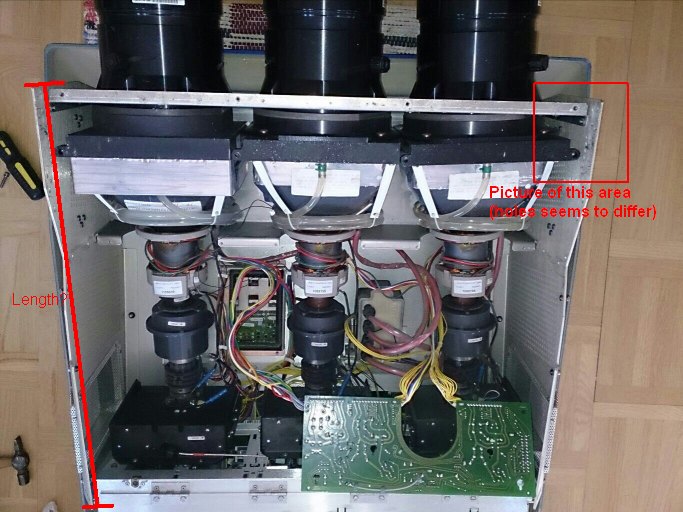

Also, can someone measure the length of this part and/or close-up of the holes at the front?
| Description: |
| What's the length of this part? |
|
| Filesize: |
90.54 KB |
| Viewed: |
8656 Time(s) |
|
| Description: |
|
| Filesize: |
197.09 KB |
| Viewed: |
8656 Time(s) |
|
_________________
| Melifluonze wrote: | | Digital is easy. This is torture, but far more interesting... |
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Sun Jan 12, 2014 4:57 pm Post subject: |
|
|

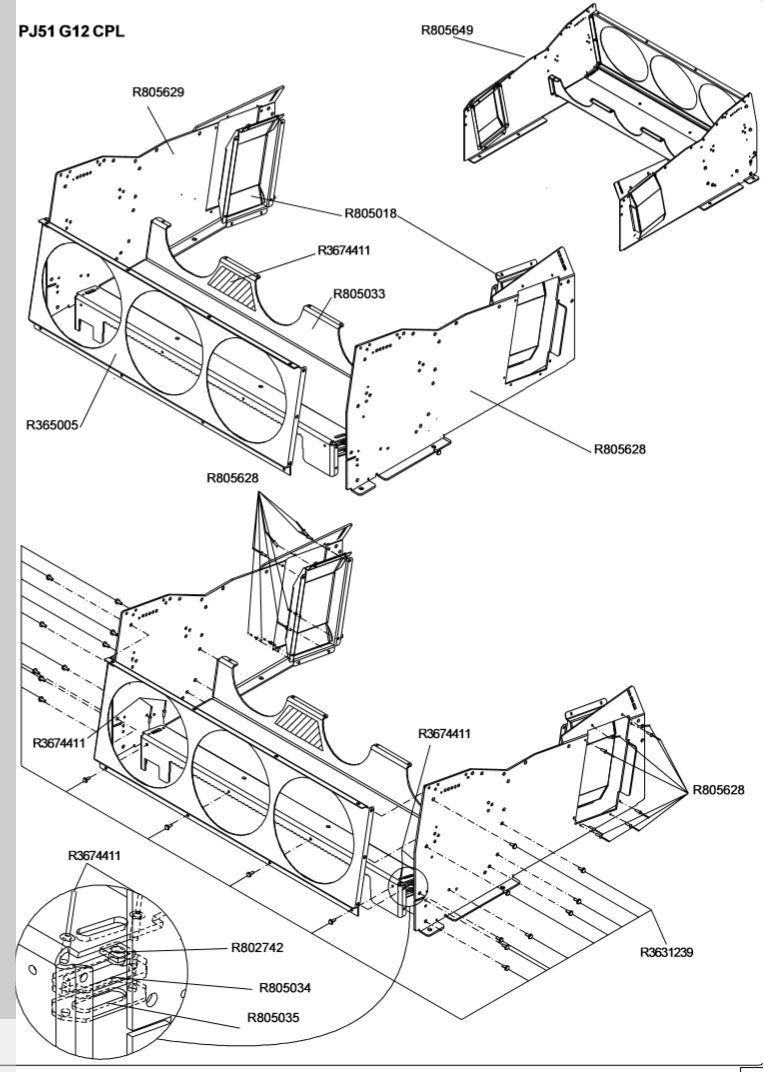

I hope that this image can help you.
| Description: |
|
| Filesize: |
143.69 KB |
| Viewed: |
8637 Time(s) |
|
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
winny
Joined: 09 Oct 2013
Posts: 403
Location: Sweden
TV/Projector: BD808s, BG1209/2
|
| Posted: Sun Jan 12, 2014 5:14 pm Post subject: |
|
|
| Decibel wrote: | | I hope that this image can help you. |
Sorry, not really since I already have this chassis. I need to find out the difference between 1209/se and the chassis in your picture. Can you take a photo of your equivalents to R805628 and
R805033 in your 1209s? Preferably with a ruler or tape measure for scale.
_________________
| Melifluonze wrote: | | Digital is easy. This is torture, but far more interesting... |
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Sun Jan 12, 2014 5:51 pm Post subject: |
|
|
R805033 there isn't in 1209s!
Look my previous picture!
Next post I'll show the part that you asked.
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Sun Jan 12, 2014 5:53 pm Post subject: |
|
|
R365005 is different because in 1209s there are three pieces with holes for tube's fix, scheimpflug and others.
Look very well my previous picture.
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Sun Jan 12, 2014 6:03 pm Post subject: |
|
|
The picture that you asked
| Description: |
|
| Filesize: |
75.04 KB |
| Viewed: |
8623 Time(s) |
|
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Sun Jan 12, 2014 6:15 pm Post subject: |
|
|
Other picture
| Description: |
|
| Filesize: |
71.58 KB |
| Viewed: |
8619 Time(s) |
|
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
winny
Joined: 09 Oct 2013
Posts: 403
Location: Sweden
TV/Projector: BD808s, BG1209/2
|
| Posted: Mon Jan 13, 2014 12:09 pm Post subject: |
|
|
| Decibel wrote: | | R805033 there isn't in 1209s! |

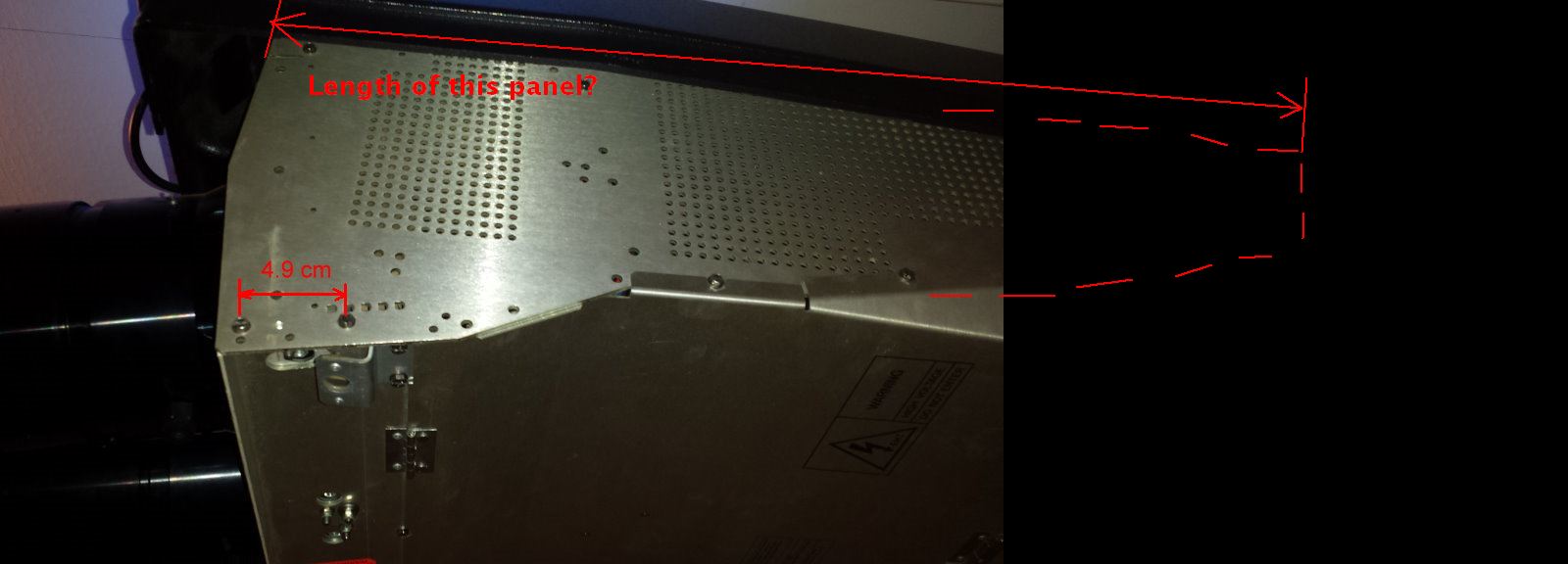

I know. I mean the equivalent panel in your 1209s to the R805033 in 1209.
I used your picture and extended it to show what I mean.
To change the parts in question, how much do I need to strip down? Flip the projector over, take off the outer casing, then what?
Also, someone suggested me to change out some capacitors on the motherboard while I'm at it because they fail over time and are difficult to change unless the projector is in parts. Which capacitors would this be?
| Description: |
| What is the length of this panel? |
|
| Filesize: |
67.66 KB |
| Viewed: |
8609 Time(s) |
|
_________________
| Melifluonze wrote: | | Digital is easy. This is torture, but far more interesting... |
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Mon Jan 13, 2014 1:36 pm Post subject: |
|
|

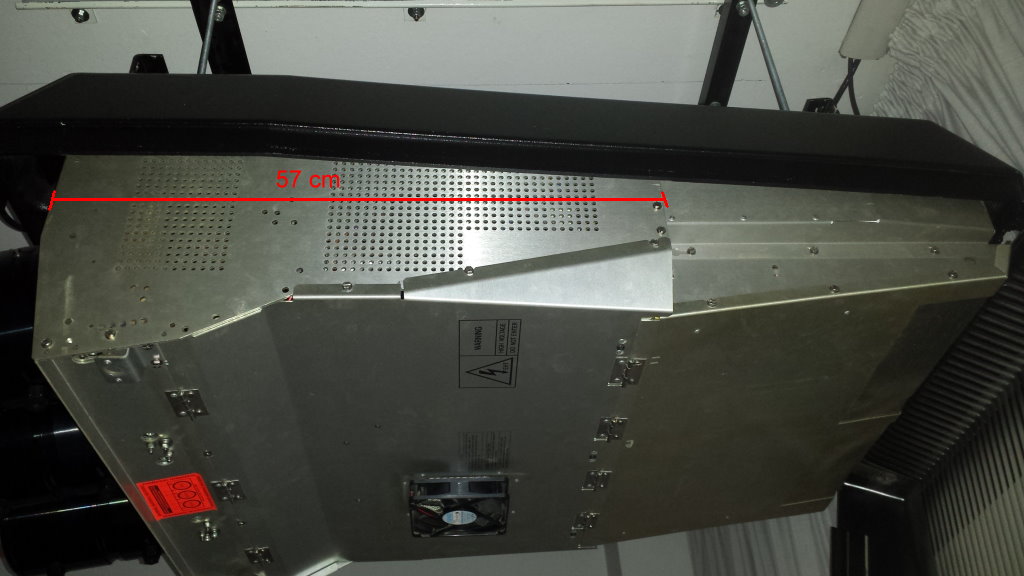

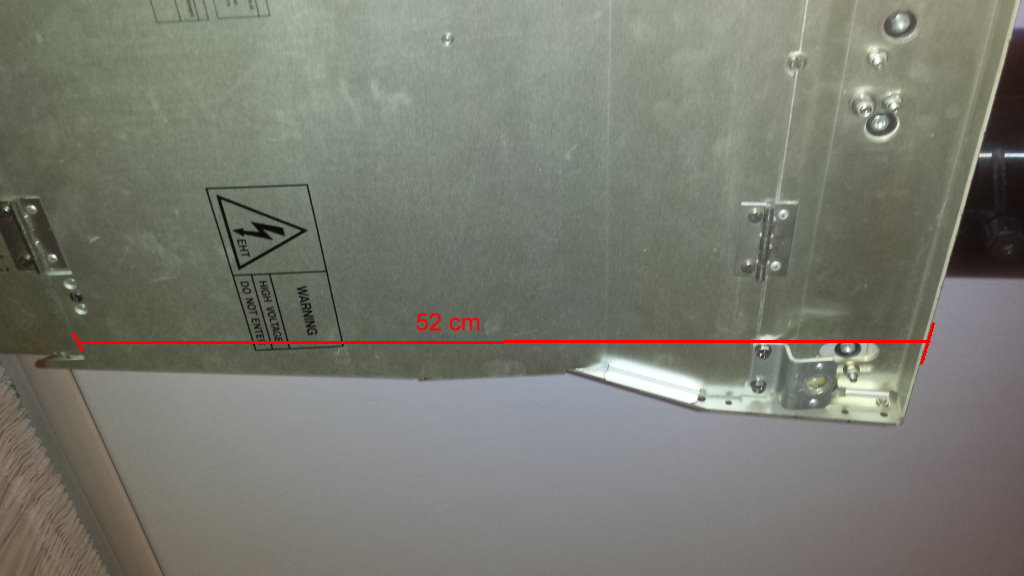

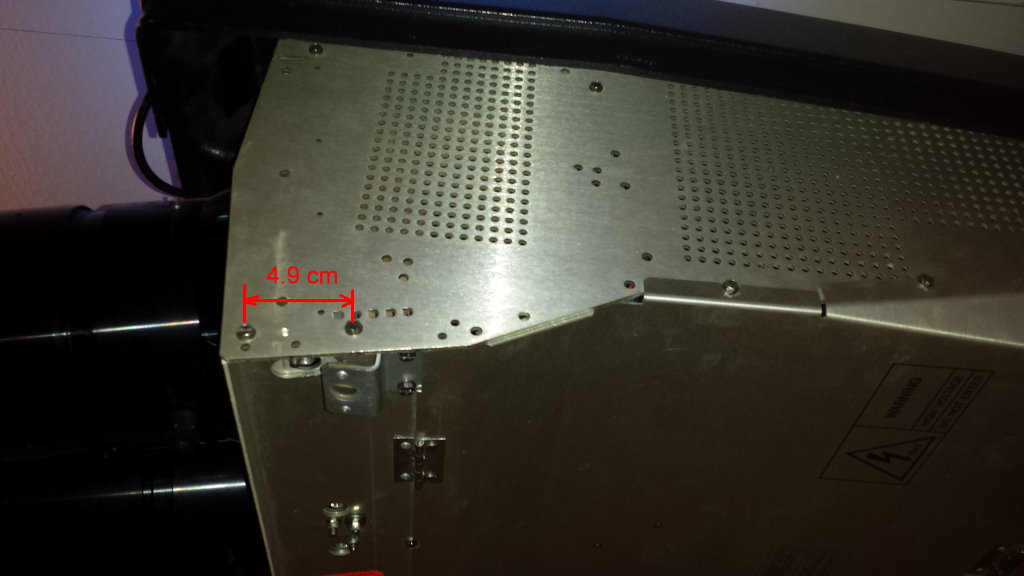

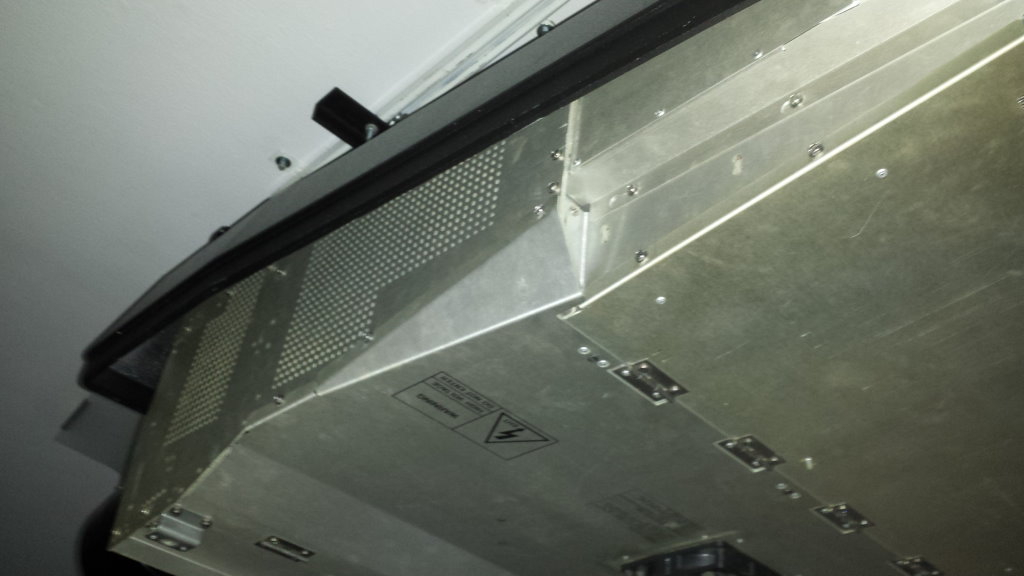

Here
| Description: |
|
| Filesize: |
90.81 KB |
| Viewed: |
8584 Time(s) |
|
| Description: |
|
| Filesize: |
77.31 KB |
| Viewed: |
8584 Time(s) |
|
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Mon Jan 13, 2014 4:42 pm Post subject: |
|
|
The panel is different?
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
winny
Joined: 09 Oct 2013
Posts: 403
Location: Sweden
TV/Projector: BD808s, BG1209/2
|
| Posted: Mon Jan 13, 2014 6:15 pm Post subject: |
|
|
I measured the length to be 565 mm, which should be within margin to match your measurement. The holes does however differ. Thank you very much for your picture!
Since I need the bottom plate and top cover and pay for shipping for them, I might just as well get the side plates as well instead of drilling.
_________________
| Melifluonze wrote: | | Digital is easy. This is torture, but far more interesting... |
|
|
| Back to top |
|
|
winny
Joined: 09 Oct 2013
Posts: 403
Location: Sweden
TV/Projector: BD808s, BG1209/2
|
| Posted: Tue Jan 14, 2014 7:50 pm Post subject: |
|
|
Does anyone have the exploded view of the 1209s chassis for reference? I have the service manual but no chassis in it.
_________________
| Melifluonze wrote: | | Digital is easy. This is torture, but far more interesting... |
|
|
| Back to top |
|
|
nombz
Joined: 09 Mar 2006
Posts: 119
Location: Stockholm, Sweden
|
| Posted: Thu Jan 16, 2014 9:32 pm Post subject: |
|
|
Where in Sweden are you located? I have a 1209s/E hanging over my head. If you are close you can come measure
I am in the northeast part of 08-area.
And walking on the ice is not that fun, I am waiting for a few more cm of ice and then I will be living up to my avatar this year again!
_________________
BarcoGraphics 1208s/2 and BarcoGraphics 1209s/E
|
|
| Back to top |
|
|
Decibel
Joined: 31 May 2007
Posts: 904
Location: Roma - Italia
|
| Posted: Thu Jan 16, 2014 9:44 pm Post subject: |
|
|
| winny wrote: | | I have the service manual but no chassis in it. |
In the service manual of 1209s there is the exploded view of the older chassis
_________________
Domenico (Barco fan!)
|
|
| Back to top |
|
|
winny
Joined: 09 Oct 2013
Posts: 403
Location: Sweden
TV/Projector: BD808s, BG1209/2
|
| Posted: Thu Jan 16, 2014 9:55 pm Post subject: |
|
|
| nombz wrote: | Where in Sweden are you located? I have a 1209s/E hanging over my head. If you are close you can come measure
I am in the northeast part of 08-area.
And walking on the ice is not that fun, I am waiting for a few more cm of ice and then I will be living up to my avatar this year again! |
Lucky bastard! I have ordered all the metal parts needed now, unless the bottom plate is different too. Perhaps some assistance will be needed when it's time to mount everything in terms of photos.
About 180 km I think.
Perhaps I should change mine to a picture of me doing four wheel powerslide as a season special. My Smithers injecting himself with the experimental drug to stay straight didn't end up either animated or very good.
Also, turns out I need to modify the mounting points of my skates to accommodate any normal type of ski boot. *rant*
_________________
| Melifluonze wrote: | | Digital is easy. This is torture, but far more interesting... |
|
|
| Back to top |
|
|
nombz
Joined: 09 Mar 2006
Posts: 119
Location: Stockholm, Sweden
|
| Posted: Fri Jan 17, 2014 12:00 pm Post subject: |
|
|
I have a 1208s/2 chassis "lying" around but I guess that dont have the continuous scheimpflug? Otherwise it might be possible to use it as a donor?
