| Posted: Tue Apr 26, 2011 11:18 pm Post subject: Ampro 4600 thick horizontal lines on all 3 tubes at bottom |
|
|
Hi all I have ceiling mounted the Ampro and its been ok, however just recently the horizontal lines on the nokia test patterns show that all 3 tubes have thicker lines at the bottom and ghosting on the lines. Could the Horizontal supply or drive boards be a problem as its across all 3 tubes and not just one? I cannot get the camera to show this on phots of the tubes or screenshots, very annoying. Thanks for any help.
_________________
The more I learn
the less I know.
|
|
| Back to top |
|
 |
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Tue Apr 26, 2011 11:42 pm Post subject: Re: Ampro 4600 thick horizontal lines on all 3 tubes at bott |
|
|
| incova wrote: | | Hi all I have ceiling mounted the Ampro and its been ok, however just recently the horizontal lines on the nokia test patterns show that all 3 tubes have thicker lines at the bottom and ghosting on the lines. Could the Horizontal supply or drive boards be a problem as its across all 3 tubes and not just one? I cannot get the camera to show this on phots of the tubes or screenshots, very annoying. Thanks for any help. |
sounds like a mechanical focus (vertical lens flapping) issue that you possibly didn't notice before?
|
|
| Back to top |
|
|
incova
Joined: 27 Nov 2006
Posts: 789
Location: london
|
| Posted: Tue Apr 26, 2011 11:47 pm Post subject: No, it was not there before. |
|
|
Its on all 3 tubes Draganm and it was not there before, lines are definitely thicker than they were about a month ago.
_________________
The more I learn
the less I know.
|
|
| Back to top |
|
|
AnalogRocks
Forum Moderator
Joined: 08 Mar 2006
Posts: 26706
Location: Toronto, Ontario, Canada
TV/Projector: Sony 1252Q, AMPRO 4000G
|
| Posted: Wed Apr 27, 2011 12:25 am Post subject: |
|
|
You're back...
_________________
Tech support for nothing
CRT.
HD done right!
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Wed Apr 27, 2011 4:01 pm Post subject: Re: No, it was not there before. |
|
|
| incova wrote: | | Its on all 3 tubes Draganm and it was not there before, lines are definitely thicker than they were about a month ago. |
I've seen this on a MArquee before with high hours and it was weak capacitors on either the deflection modules or video neck-boards, can't remember which.
Since your image is painted from the top down what could be happening is the caps are becoming saturated and leaking prior to the point where they would normaly discharge. So your getting a progressive voltage drop to the coils or electron gun as the sweep approaches the end of the raster. The blanking on the back side between frames gives things time to re-set then the process repeats itself.
A quick check, reverse the scan on both H & V and see if the lines are now thicker at the top.
|
|
| Back to top |
|
|
incova
Joined: 27 Nov 2006
Posts: 789
Location: london
|
| Posted: Wed Apr 27, 2011 9:35 pm Post subject: draganm |
|
|
Hey thanks man, how do I reverse the scan>? On the Ampro there is a yoke interface card which has two cards on it, one is for horizontal sweep the other for vertical, do you want me to try and reverse these?
This will change my system to a front table setup. It would be stange for all three neck cards to go at once wouldnt it?
_________________
The more I learn
the less I know.
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Wed Apr 27, 2011 10:32 pm Post subject: |
|
|
|
What does the internal test grid look like?
|
|
| Back to top |
|
|
incova
Joined: 27 Nov 2006
Posts: 789
Location: london
|
| Posted: Wed Apr 27, 2011 11:08 pm Post subject: the same |
|
|
well hello sir!
internal test patterns are the same as the nokia patterns.
_________________
The more I learn
the less I know.
|
|
| Back to top |
|
|
AnalogRocks
Forum Moderator
Joined: 08 Mar 2006
Posts: 26706
Location: Toronto, Ontario, Canada
TV/Projector: Sony 1252Q, AMPRO 4000G
|
| Posted: Thu Apr 28, 2011 2:18 am Post subject: |
|
|
Sure you just don't need glasses?
_________________
Tech support for nothing
CRT.
HD done right!
|
|
| Back to top |
|
|
incova
Joined: 27 Nov 2006
Posts: 789
Location: london
|
| Posted: Thu Apr 28, 2011 9:25 am Post subject: I have glasses! |
|
|

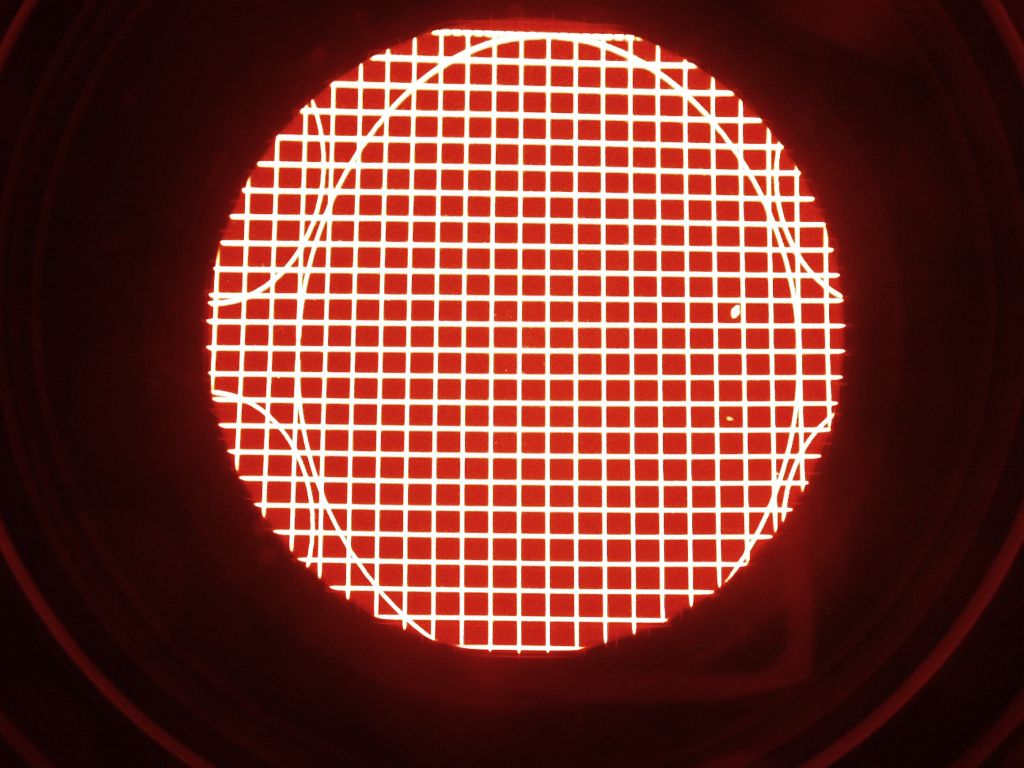

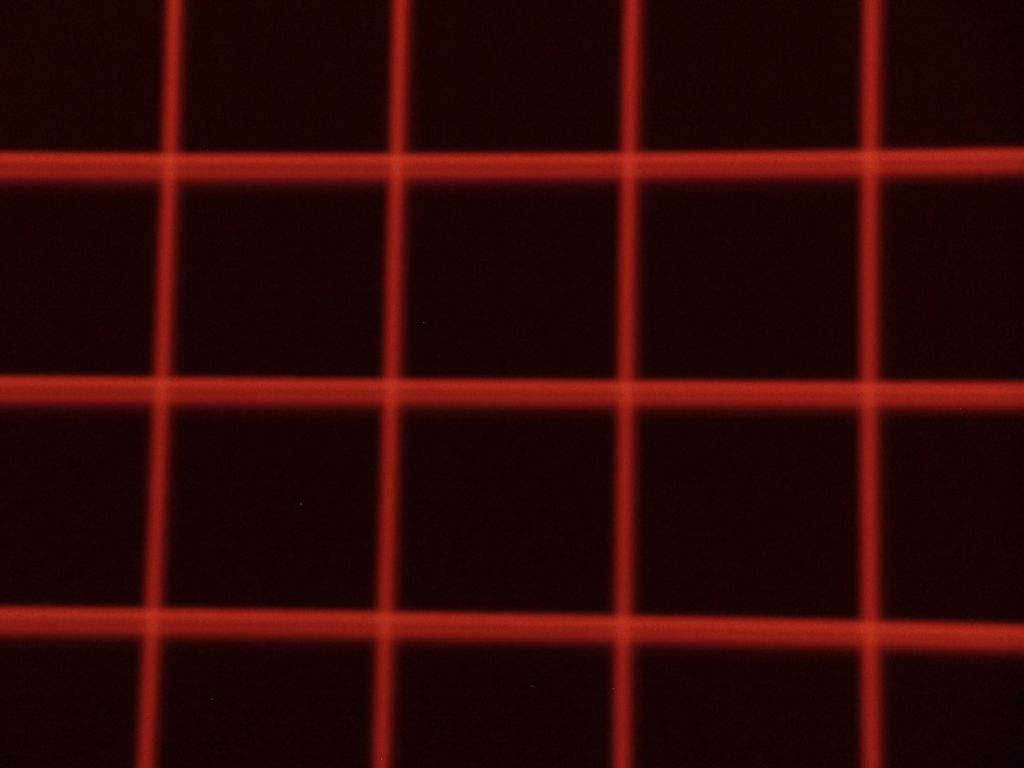

One is of the tube face the other the screen, both taken from the red obviously but all three tubes are the same. You can see the lines are thicker going up the tube face, or it looks that way to me.
| Description: |
|
| Filesize: |
32.6 KB |
| Viewed: |
9040 Time(s) |
|
| Description: |
|
| Filesize: |
114.33 KB |
| Viewed: |
9040 Time(s) |
|
_________________
The more I learn
the less I know.
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Thu Apr 28, 2011 4:12 pm Post subject: |
|
|
|
I'm not seeing it, they all look the same?
|
|
| Back to top |
|
|
incova
Joined: 27 Nov 2006
Posts: 789
Location: london
|
| Posted: Thu Apr 28, 2011 7:02 pm Post subject: ? |
|
|
The thick lines at the top photo? I could not get the camera to take a shot of the thinner lines above them for comparison sorry.
_________________
The more I learn
the less I know.
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Thu Apr 28, 2011 7:18 pm Post subject: |
|
|

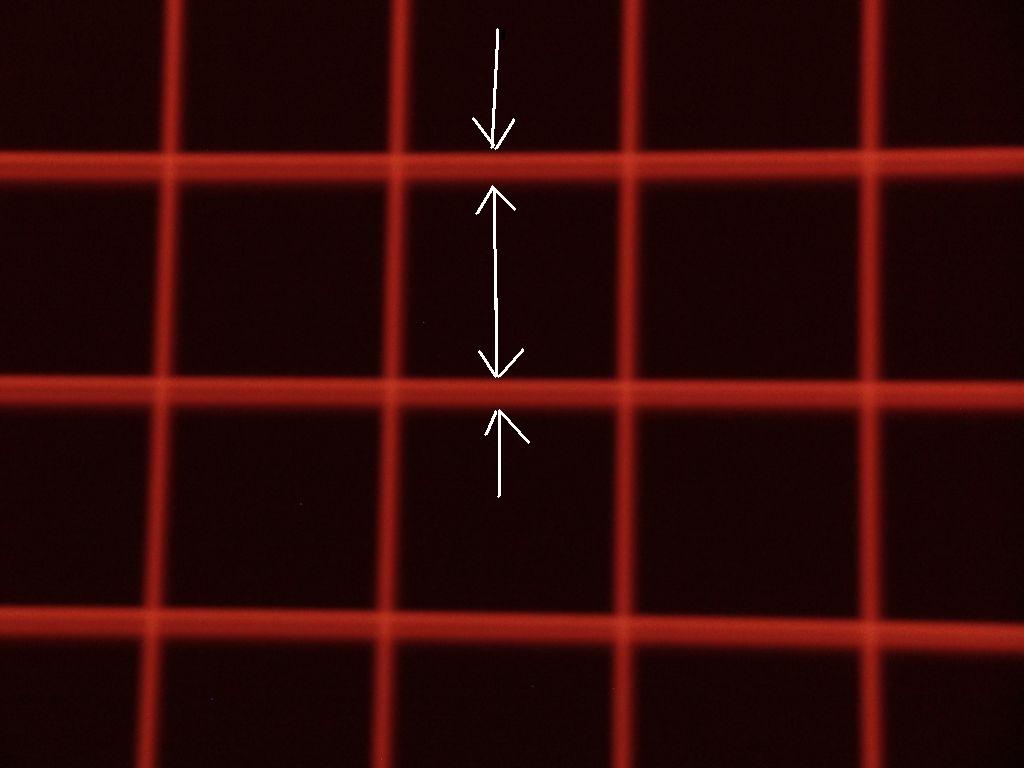

are you refering to this ghosted double image?
| Description: |
|
| Filesize: |
40.29 KB |
| Viewed: |
9002 Time(s) |
|
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Thu Apr 28, 2011 7:30 pm Post subject: |
|
|
if that's the issue then that would be sometihng in the vertical sweep. Try reversing the V and see if the ghost image goes to the top of the solid line, page 131
http://www.curtpalme.com/docs/Ampro3600_4600_User.pdf
Also, could easily be oxidized connectors. A small bottle of brush-on Caig De-oxit fixes a lot of things.
Last edited by draganm on Thu Apr 28, 2011 8:37 pm; edited 1 time in total
|
|
| Back to top |
|
|
incova
Joined: 27 Nov 2006
Posts: 789
Location: london
|
| Posted: Thu Apr 28, 2011 7:35 pm Post subject: thanks man |
|
|
Just going to try a couple of things out then I will try that , thanks for the help Draganm.
_________________
The more I learn
the less I know.
|
|
| Back to top |
|
|
dvh99
Joined: 25 Dec 2009
Posts: 2158
Location: nederland
|
| Posted: Thu Apr 28, 2011 7:56 pm Post subject: |
|
|
the thick lines might go to the bottom of the tubeface or the top of the picture, but that doesn`t rule out that it might be a bad waveform arriving at the vertical deflection amp.
in that case i think the amp is ok.
just guessing here.
_________________
1 answer always poses multiple questions.
marquee 9500ultra HD10L moome hdmi1.3 v3+ some mods.
|
|
| Back to top |
|
|
dvh99
Joined: 25 Dec 2009
Posts: 2158
Location: nederland
|
| Posted: Thu Apr 28, 2011 7:59 pm Post subject: |
|
|
oh, pull out the focus module and see if the thickness of the lines are equal from top to bottom to rule my bad waveform theory out
_________________
1 answer always poses multiple questions.
marquee 9500ultra HD10L moome hdmi1.3 v3+ some mods.
|
|
| Back to top |
|
|
macgyver655
Joined: 22 Aug 2007
Posts: 8508
|
| Posted: Thu Apr 28, 2011 8:13 pm Post subject: |
|
|
Why are you even posting this link. You need to stop posting misinformation. You create more confusion then help.
|
|
| Back to top |
|
|
draganm
Joined: 08 Mar 2006
Posts: 8990
Location: Colorado
|
| Posted: Thu Apr 28, 2011 8:39 pm Post subject: |
|
|
| macgyver655 wrote: | | Why are you even posting this link. You need to stop posting misinformation. You create more confusion then help. |
god forbid you simply link to the correct manual instead of being an *******.
He didn't post which model, just "ceiling mounted ampro".
|
|
| Back to top |
|
|
RayN999
Joined: 25 May 2010
Posts: 207
Location: Minneapolis, MN
TV/Projector: Sony VPL-VW60 and Toshiba 65H84 CRT RPTV
|
| Posted: Thu Apr 28, 2011 8:46 pm Post subject: |
|
|
Subject line has the model....
